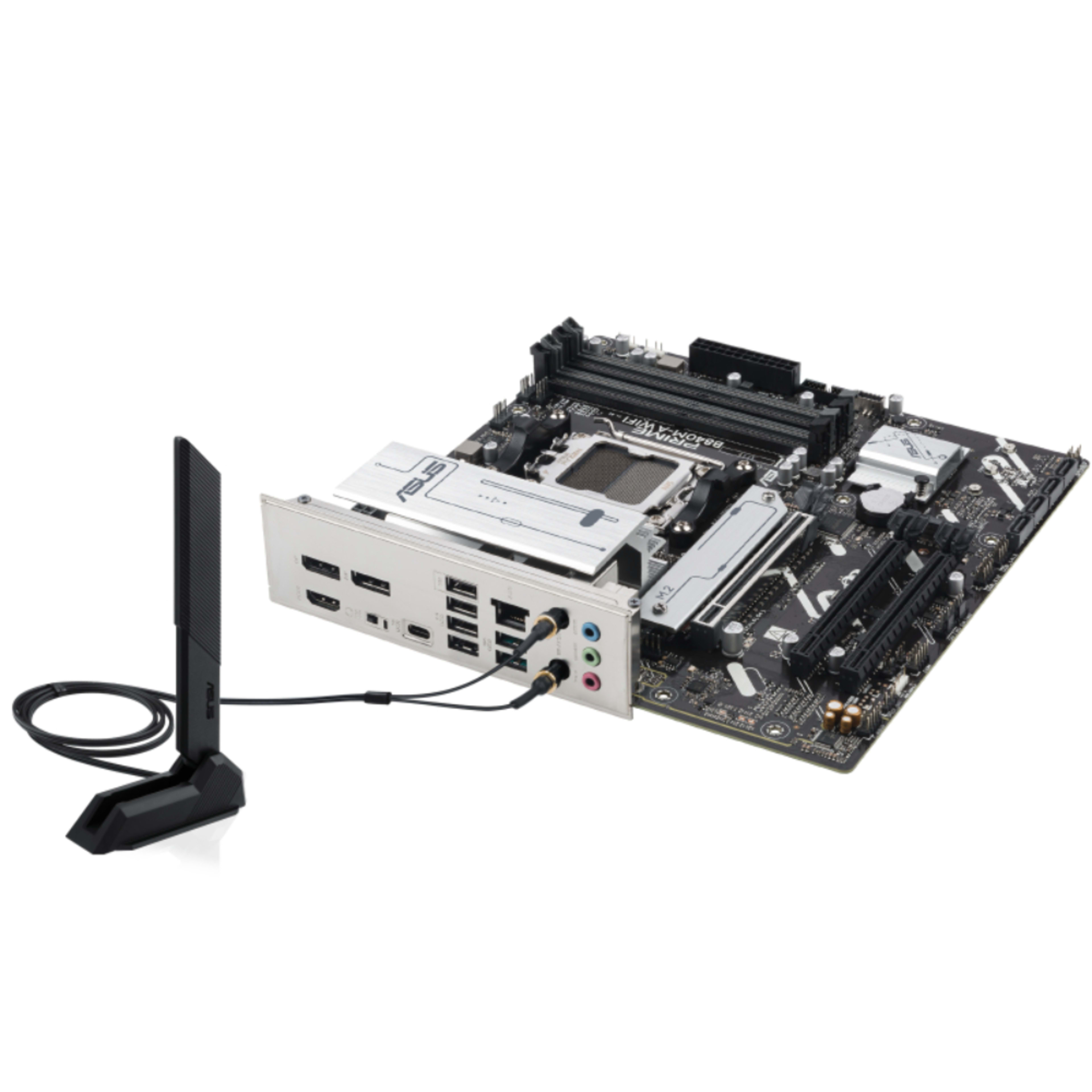

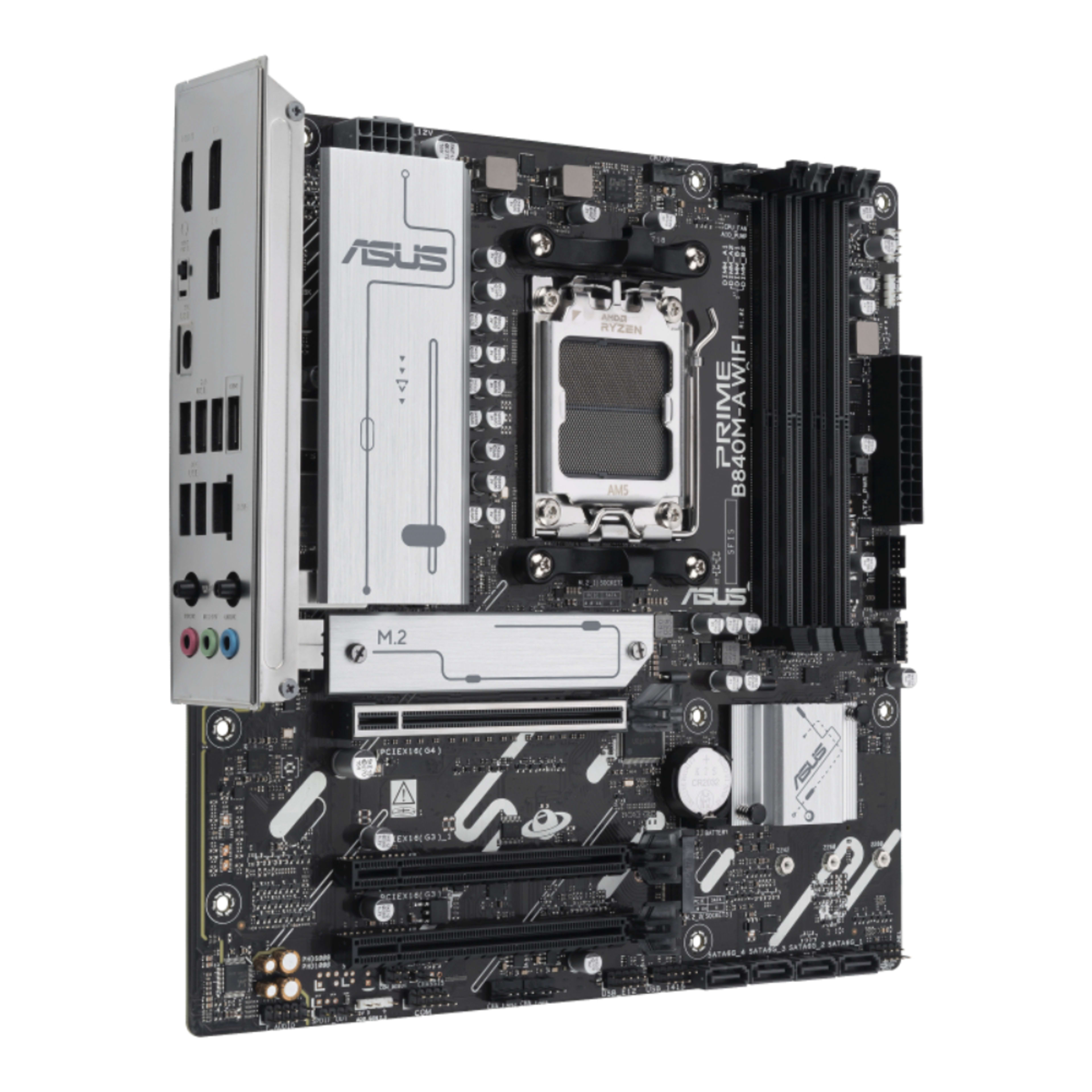

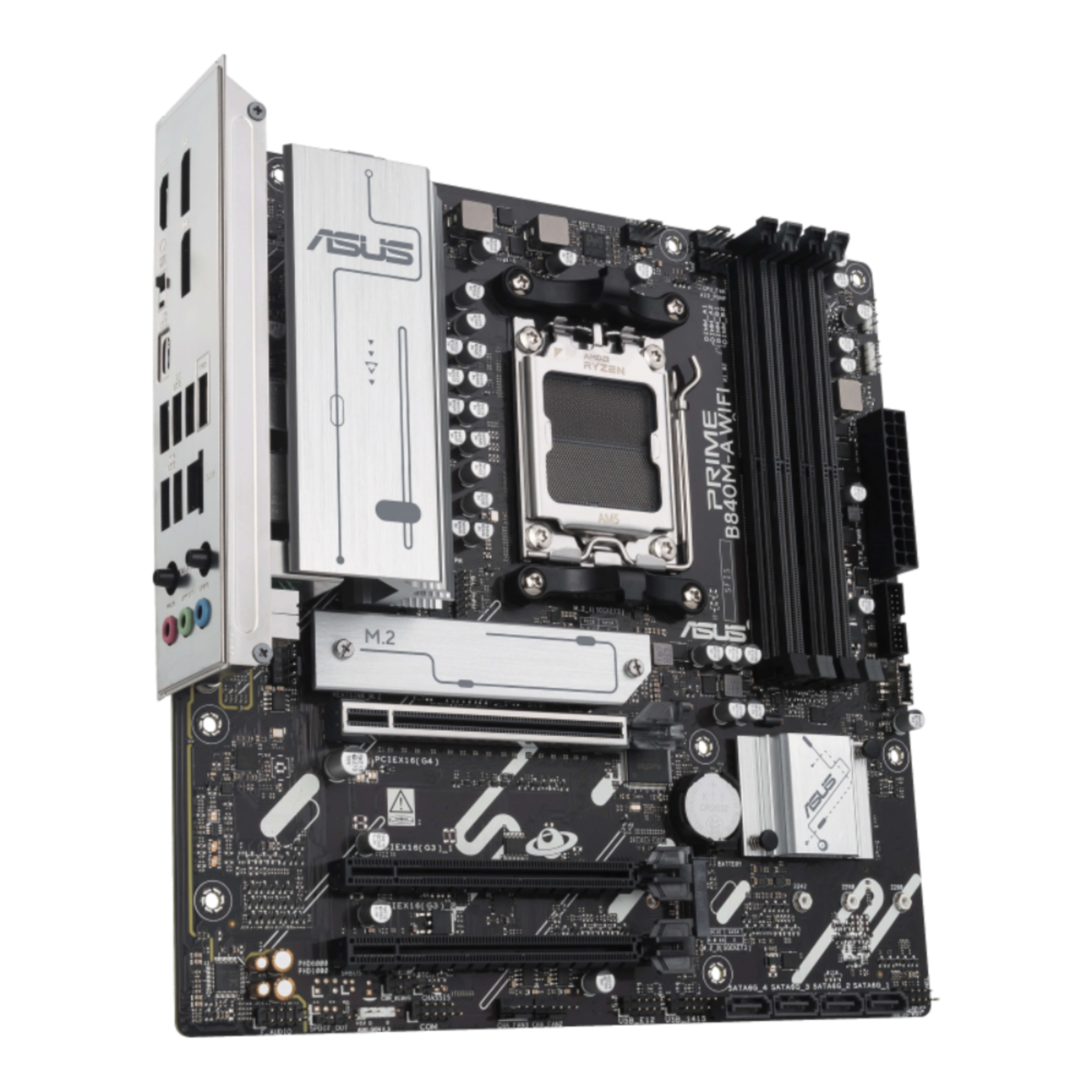

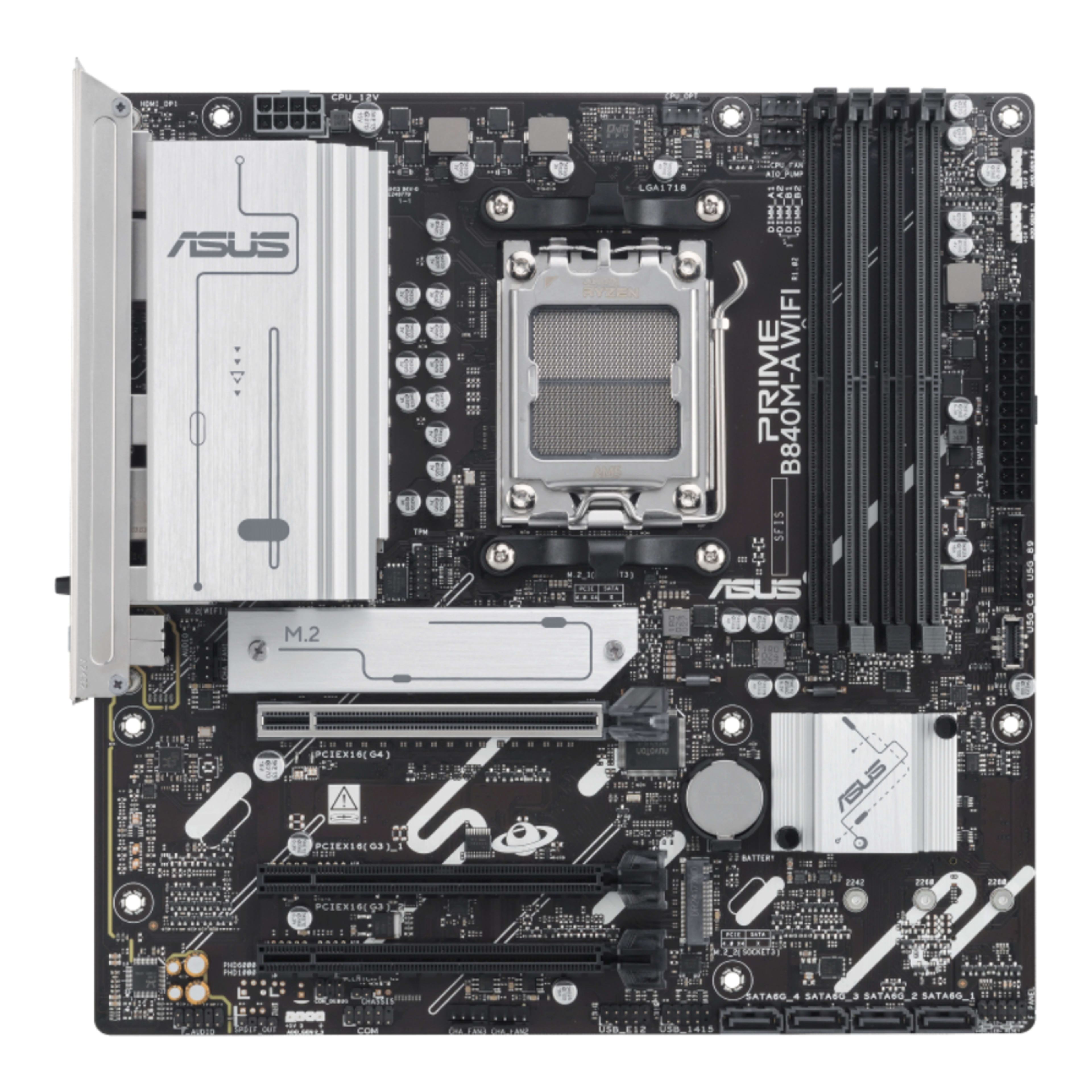

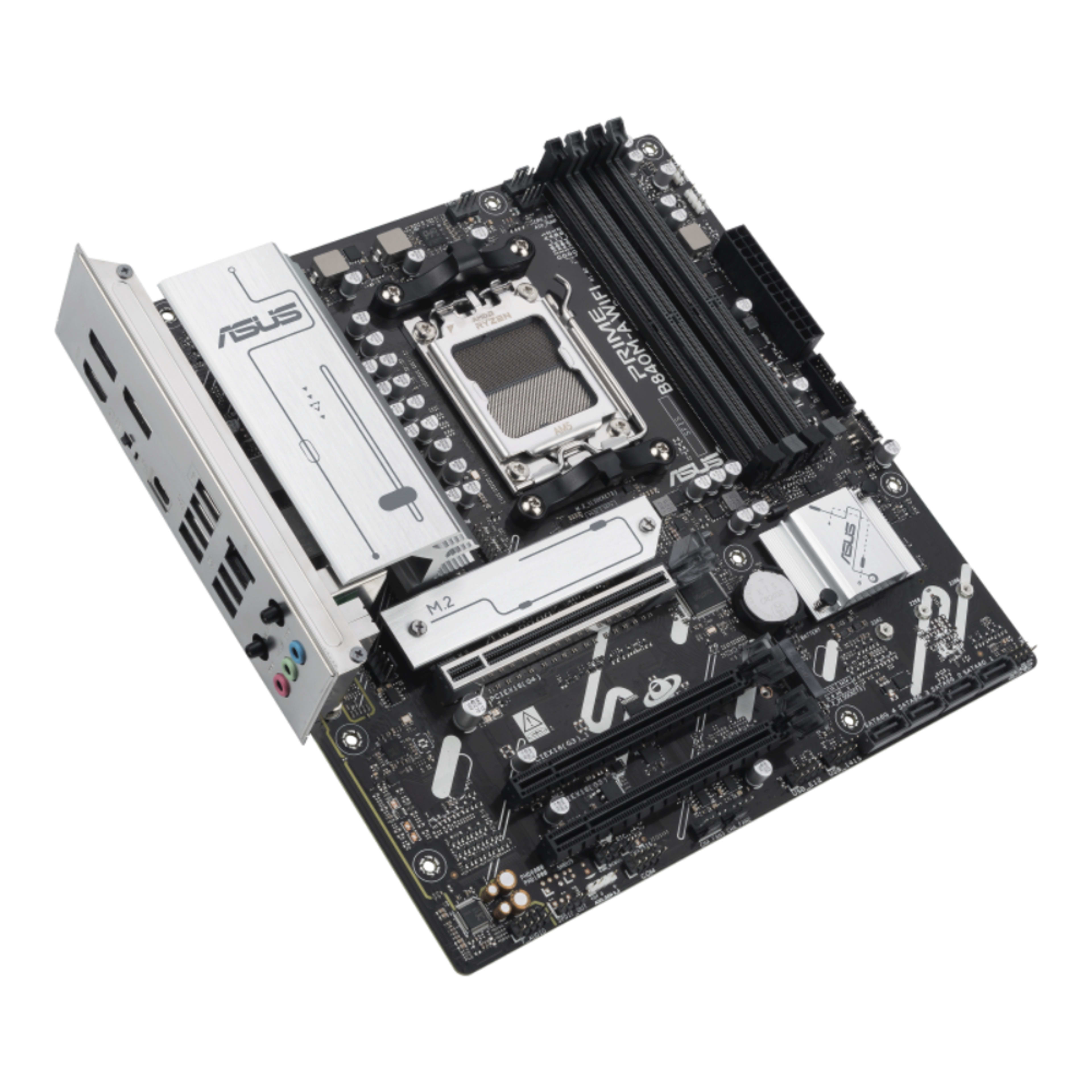

ASUS PRIME B840M-A CSM D5 (WIFI)

ASUS PRIME B840M-A CSM D5 (Wi-Fi)-PRICE IN PAKISTAN

The ASUS PRIME B840M-A CSM D5 (Wi-Fi) is a robust micro-ATX motherboard engineered for users seeking a balance between performance, connectivity, and reliability. Designed to support AMD's latest Ryzen™ 7000, 8000, and 9000 series processors via the AM5 socket, this motherboard is built on the AMD B840 chipset, ensuring compatibility with cutting-edge technologies and future upgrades.

One of the standout features of the PRIME B840M-A is its support for DDR5 memory, accommodating up to 192GB across four DIMM slots. With overclocking capabilities reaching speeds of 7600+ MT/s, users can expect enhanced performance for memory-intensive applications and multitasking scenarios. The inclusion of AMD Extended Profiles for Overclocking (EXPO™) and ASUS Enhanced Memory Profile (AEMP) ensures optimized memory tuning, catering to both novice users and seasoned overclockers.

In terms of expansion and storage, the motherboard offers a versatile array of options. It features three M.2 slots—two supporting PCIe 4.0 x4 and one supporting PCIe 3.0 x4—alongside four SATA 6Gb/s ports, providing ample storage solutions for various user needs. The PCIe 4.0 x16 slot ensures compatibility with the latest graphics cards, while additional PCIe 3.0 x1 slots offer flexibility for other expansion cards.

Connectivity is a strong suit of the PRIME B840M-A. It boasts Wi-Fi 6E (802.11ax) support, offering tri-band connectivity across 2.4GHz, 5GHz, and 6GHz frequencies, ensuring faster and more reliable wireless connections. Complementing this is Bluetooth 5.3 for seamless peripheral integration and a Realtek 2.5Gb Ethernet port for high-speed wired networking.

The motherboard's rear I/O panel is equipped with a comprehensive selection of ports, including two USB 3.2 Gen 2 Type-A, one USB 3.2 Gen 1 Type-C, and four USB 2.0 Type-A ports. Display outputs are well-covered with one HDMI 2.1 and two DisplayPort 1.4 ports, supporting multiple monitor setups and high-resolution displays.

Audio performance is enhanced by the Realtek 7.1 Surround Sound High Definition Audio CODEC, delivering high-fidelity sound with features like jack-detection, multi-streaming, and front panel jack-retasking. Premium audio capacitors and dedicated audio PCB layers further ensure a rich and immersive audio experience.

For cooling and power delivery, the motherboard incorporates an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power to the CPU. Multiple fan headers, including CPU, chassis, and AIO pump headers, along with Fan Xpert 2+ software, provide comprehensive cooling management. The inclusion of M.2 heatsinks and a VRM heatsink design further aids in maintaining optimal thermal performance.

Additional features include ASUS 5X Protection III, offering safeguards like overvoltage protection and SafeSlot Core+ for enhanced durability. The motherboard also supports Aura Sync RGB lighting with addressable Gen 2 headers, allowing users to customize and synchronize lighting effects across compatible devices. The BIOS FlashBack™ feature enables users to update the BIOS without a CPU or memory installed, simplifying the update process.

In summary, the ASUS PRIME B840M-A CSM D5 (Wi-Fi) motherboard is a feature-rich platform that caters to a wide range of users, from gamers to content creators, offering advanced connectivity, robust power delivery, and extensive customization options.
