Overview
The MSI PRO H510M-B D4 is a micro-ATX motherboard designed for Intel 10th generation Core, Pentium Gold, and Celeron processors, using the LGA 1200 socket. It supports up to 64 GB of DDR4 memory across two DIMM slots, with speeds up to 2933 MHz for Core i7 and lower for other CPUs. For expansion, it offers one PCIe 3.0 x16 slot and one PCIe x1 slot. Storage options include one M.2 Gen3 x4 slot and four SATA 6Gb/s ports. Display connectivity is provided via HDMI and VGA outputs, and the board features Realtek Gigabit LAN, Realtek ALC897 7.1-channel audio, and multiple USB 2.0 and USB 3.2 Gen 1 ports. Additional features include EZ Debug LEDs, Core Boost, and Memory Boost, making it a stable and cost-effective choice for everyday computing and office builds.

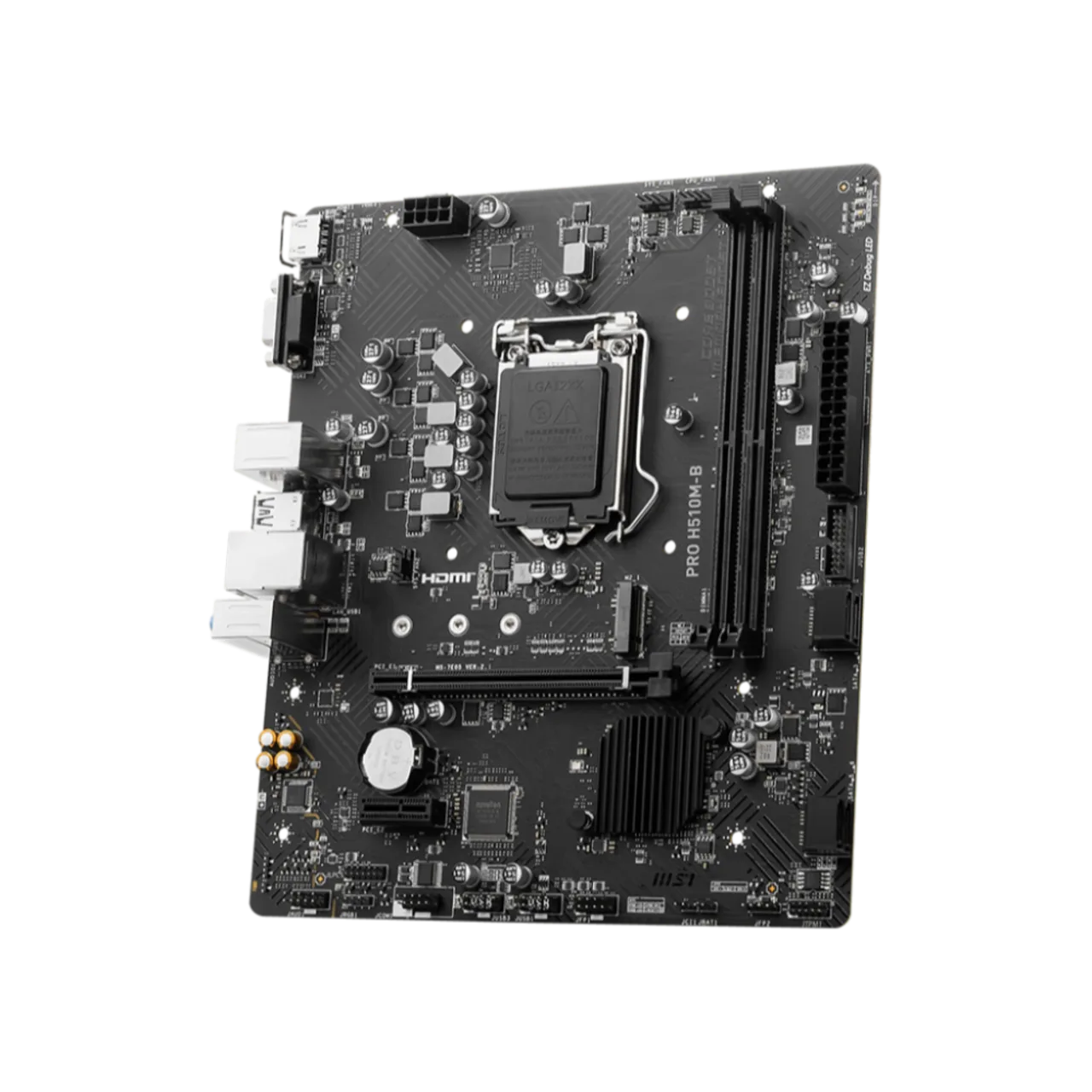

MSI PRO H510M-B D4

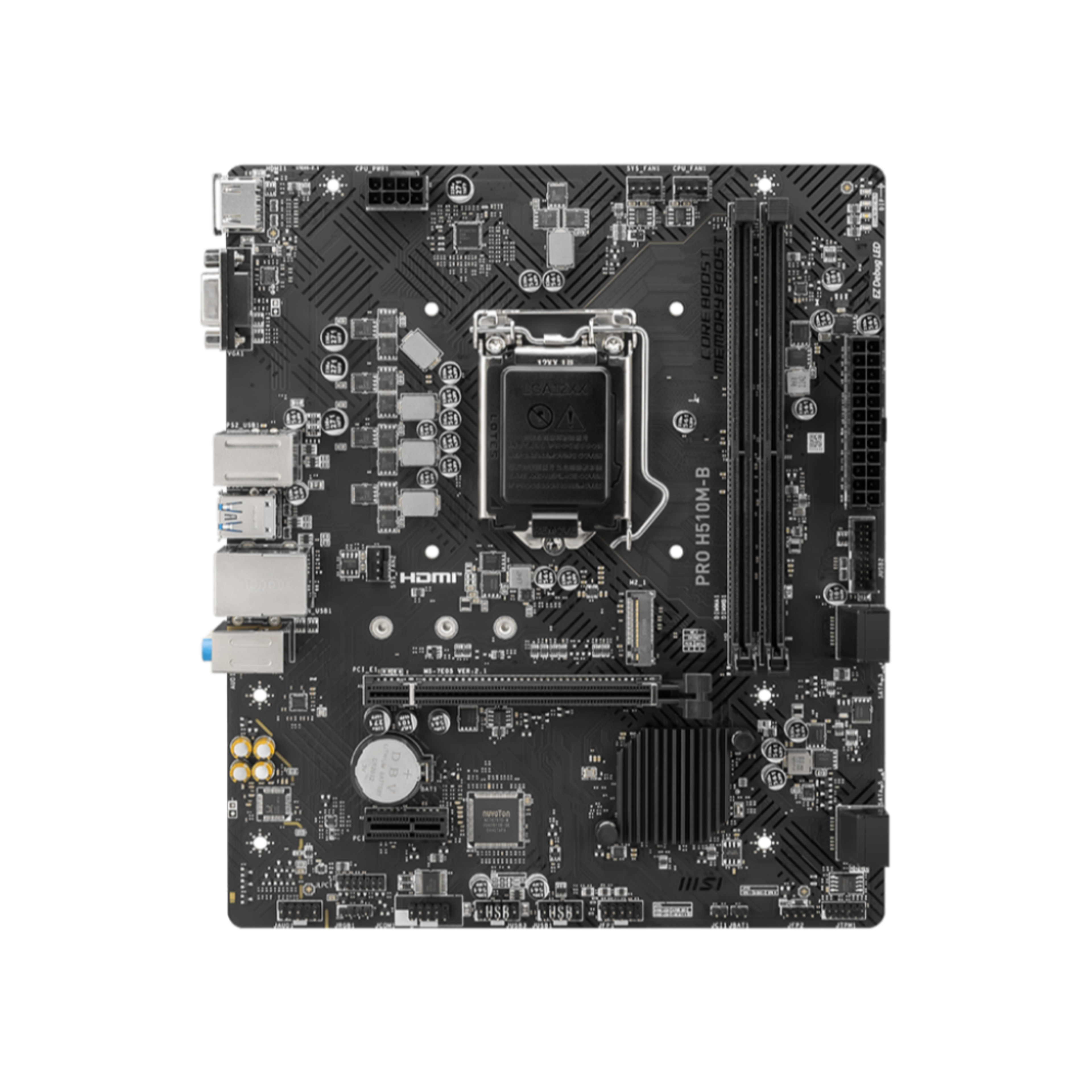

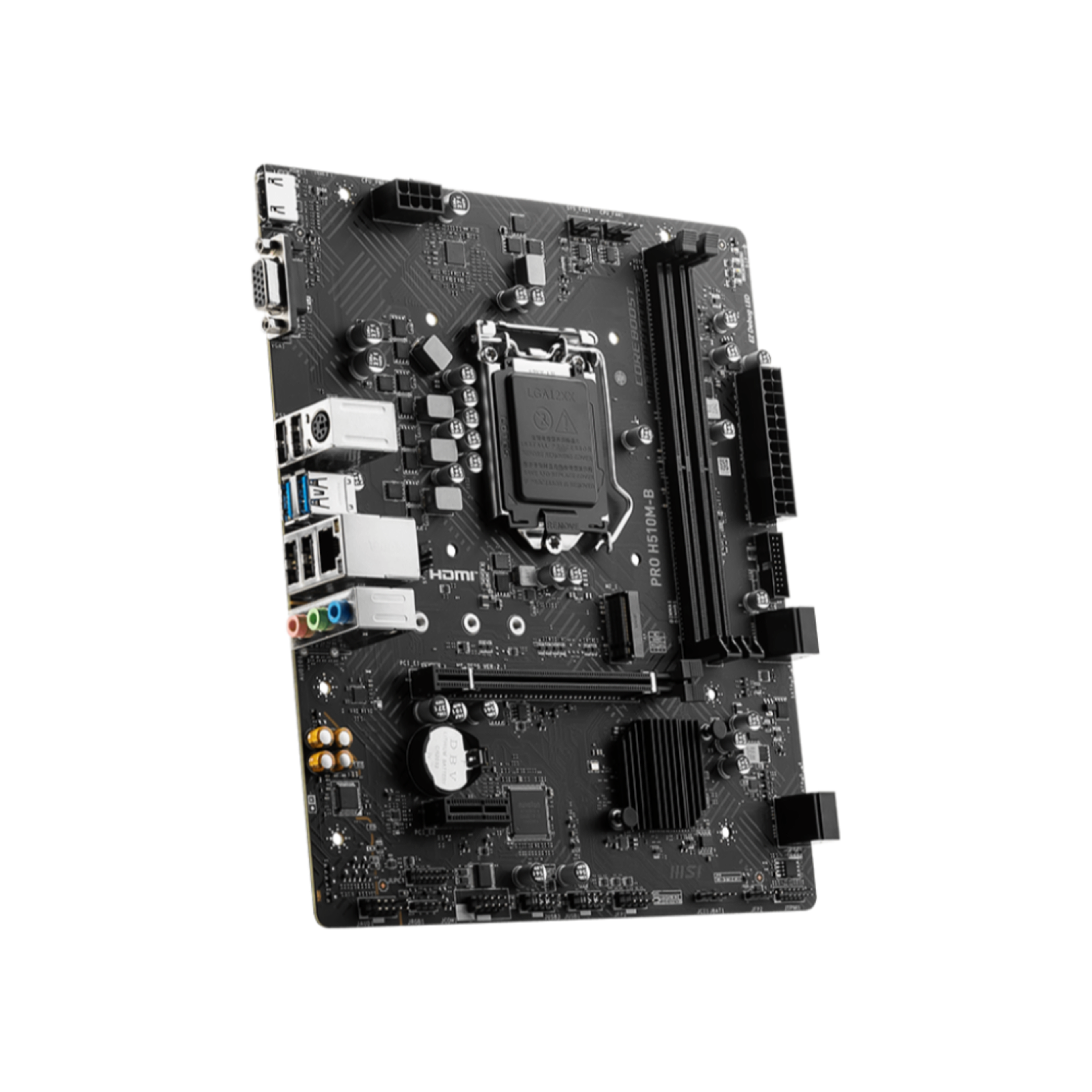

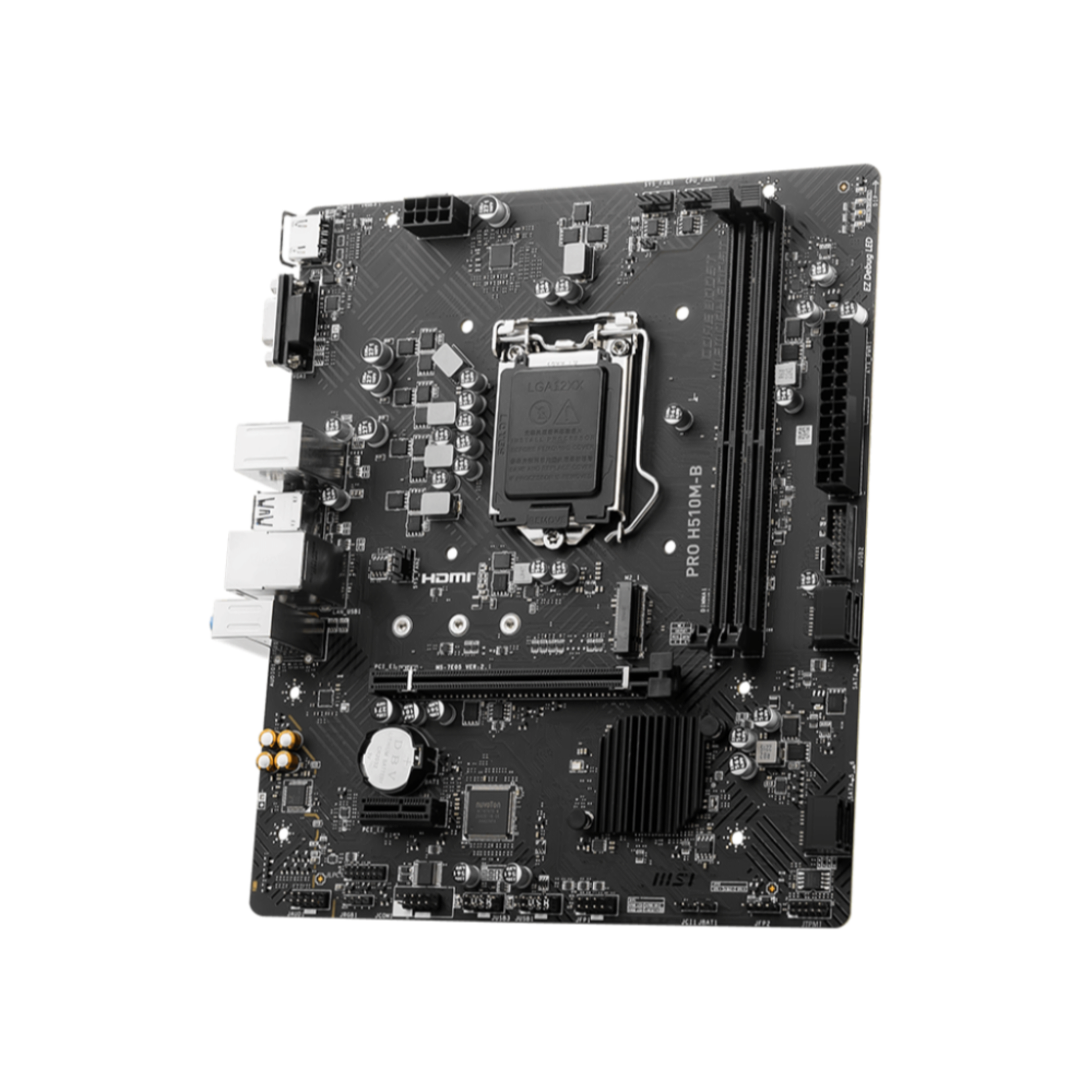

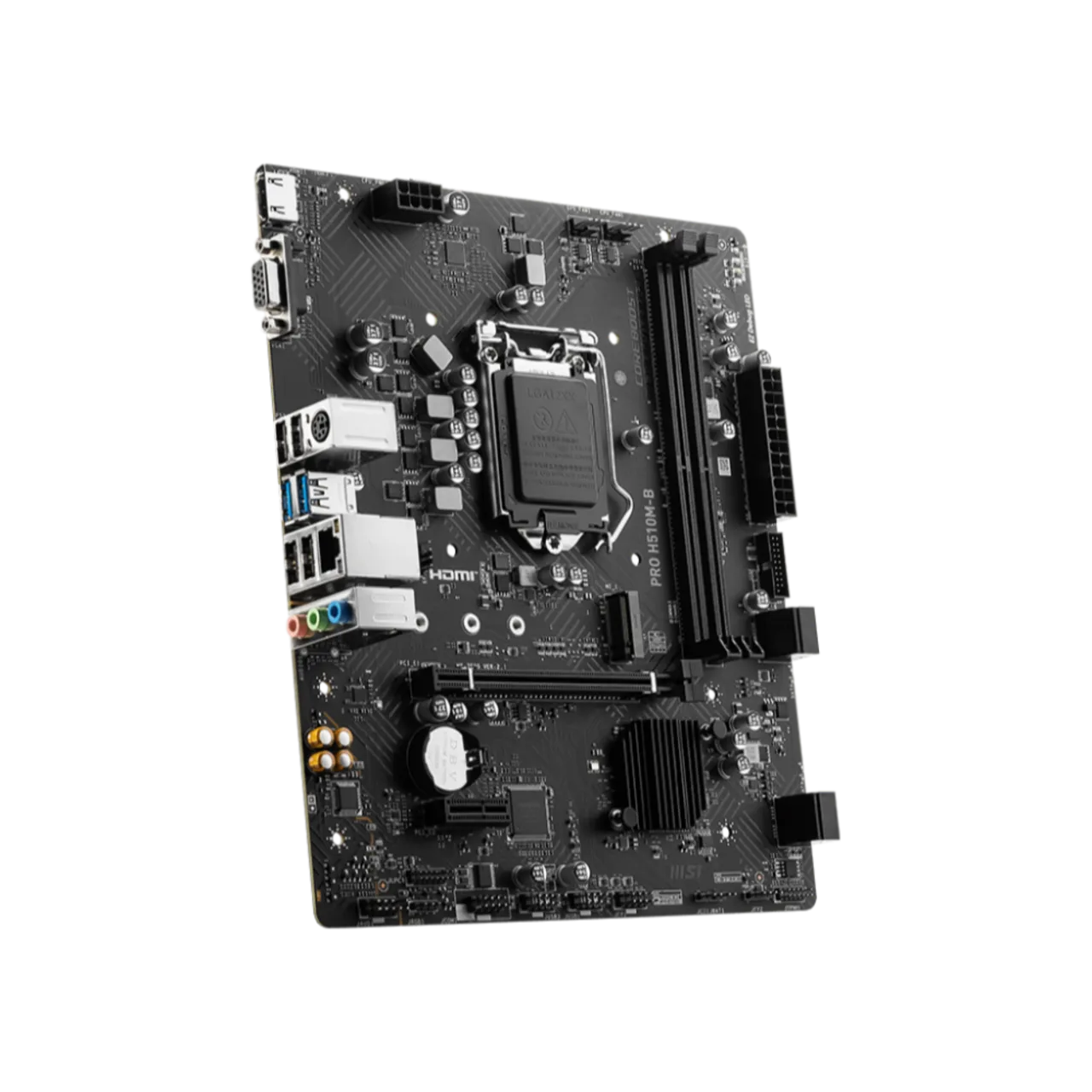

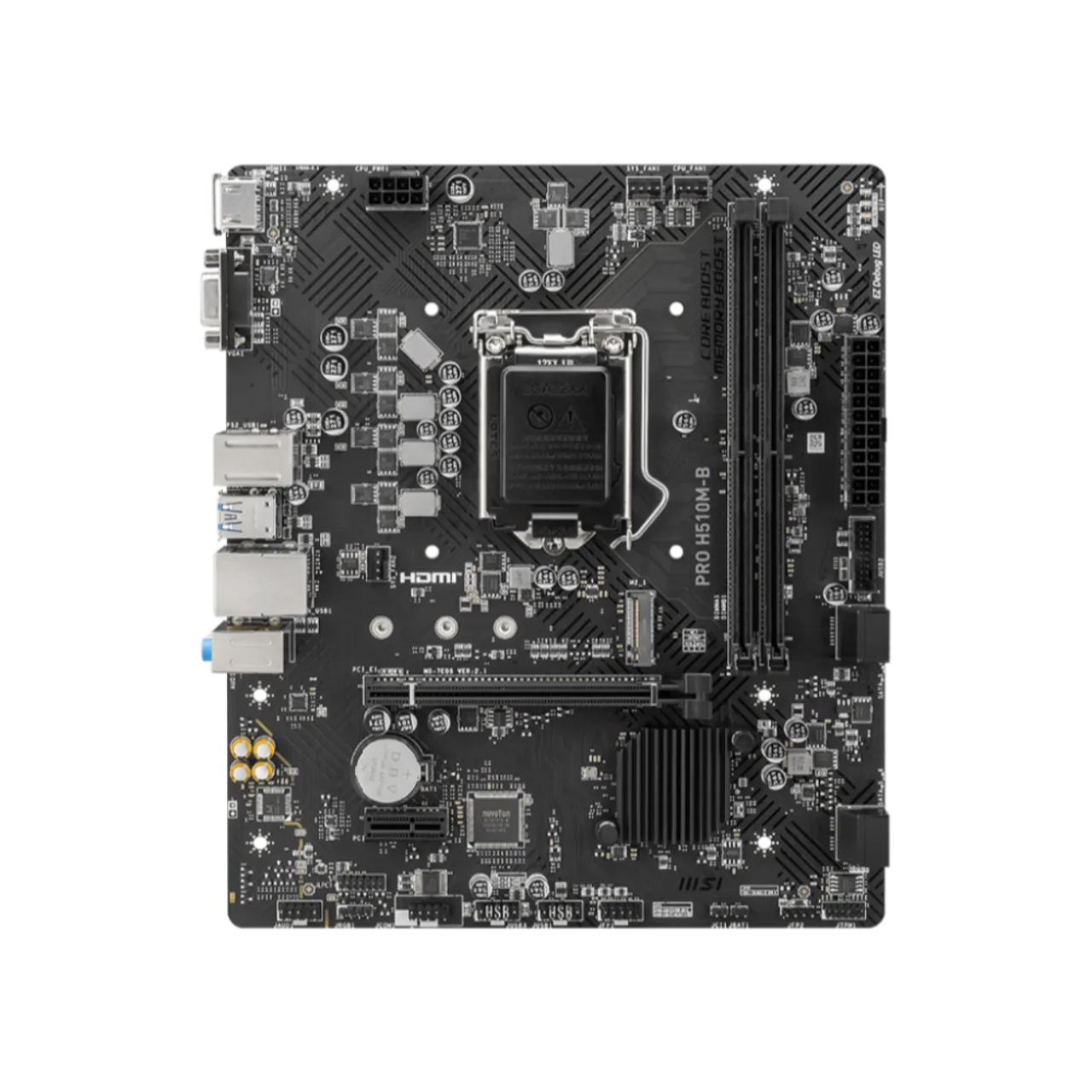

The MSI PRO H510M‑B D4 is a compact and reliable micro‑ATX motherboard built to support Intel's 10th-generation Core, Pentium Gold, and Celeron processors using the LGA 1200 socket. It features the Intel H510 chipset and supports up to 64 GB of DDR4 memory in dual-channel configuration, with speeds up to 2933 MHz on compatible CPUs. Designed for stability and long-term use, it includes MSI's Core Boost and Memory Boost technologies to enhance power delivery and ensure consistent performance during multitasking or light gaming.
For expansion, the motherboard provides one PCIe 3.0 x16 slot for a graphics card and one PCIe 3.0 x1 slot for additional add-in cards. Storage options include one M.2 slot supporting PCIe 3.0 x4 or SATA SSDs and four SATA 6 Gbps ports for hard drives or additional SSDs. Display outputs include HDMI 1.4 and VGA, making it suitable for both modern and legacy monitors. The HDMI port supports resolutions up to 4K at 30Hz.

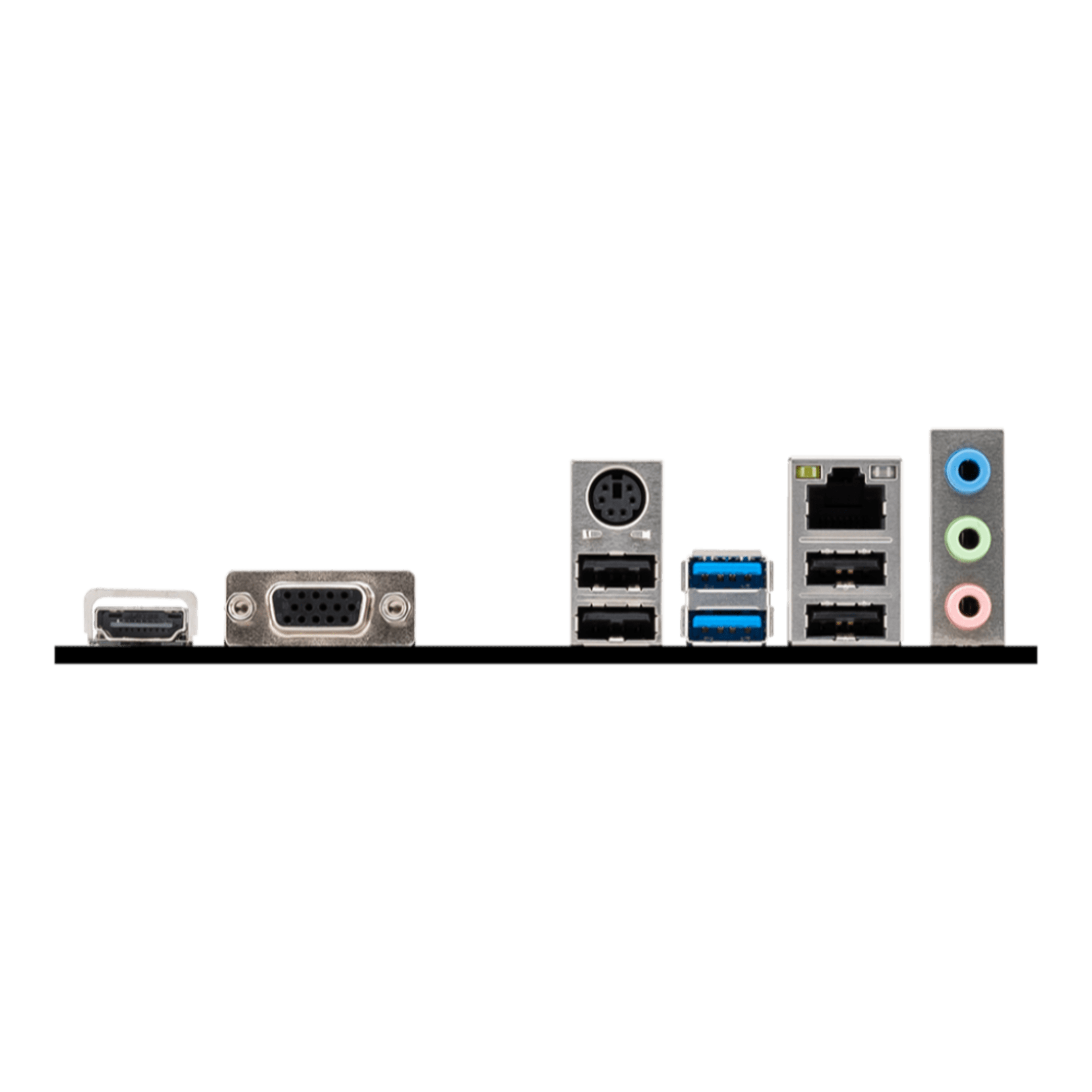

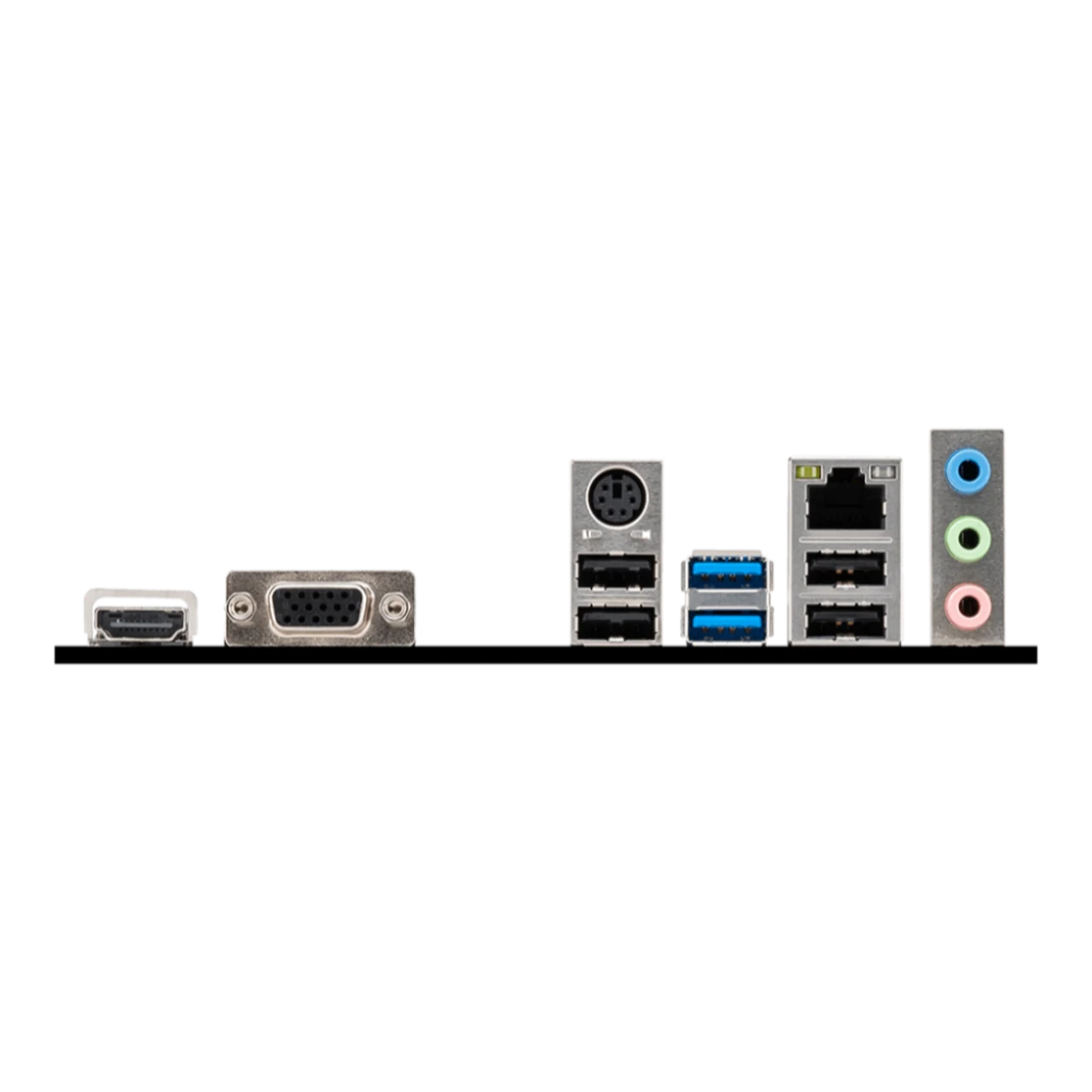

Connectivity is practical and sufficient for basic builds, with two USB 3.2 Gen 1 Type-A ports and four USB 2.0 ports on the rear I/O, plus headers for additional front-panel USB connectivity. It uses Realtek’s 8111H Gigabit LAN for wired networking and the ALC897 codec for onboard high-definition audio. Additional features include a PS/2 combo port for legacy peripherals, EZ Debug LEDs for quick troubleshooting, and headers for TPM and basic RGB lighting control.
The board’s compact 236 × 202 mm micro‑ATX form factor makes it easy to install in smaller cases, making it ideal for home, office, or budget gaming builds. The MSI PRO H510M‑B D4 offers essential performance and reliable functionality for users looking to build an affordable yet capable Intel-based system.
