Overview

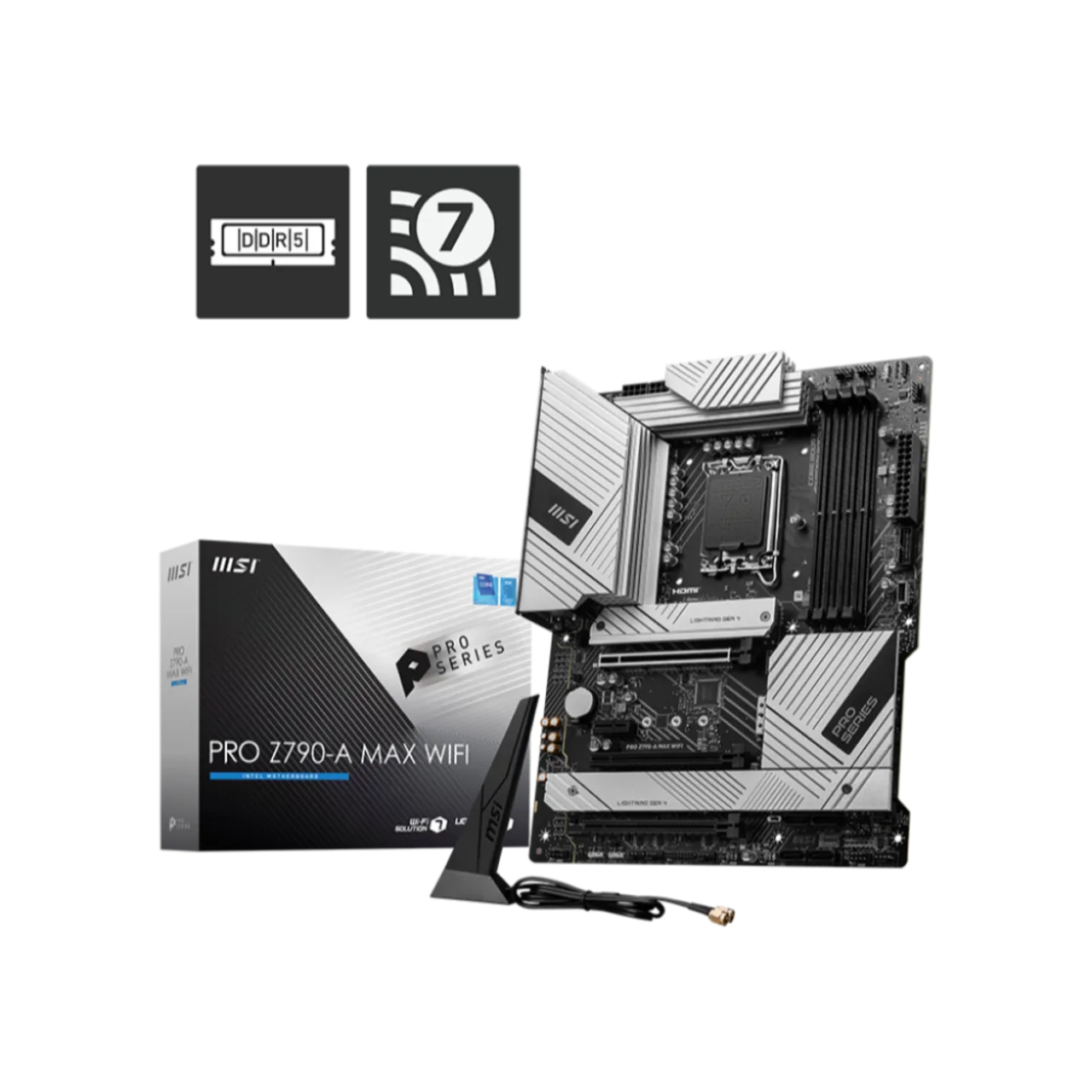

PRO Z790-A MAX WIFI offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel® Core™ 14th Gen and 13th Gen processors.
MSI PRO Z790-A MAX WIFI Price in Pakistan

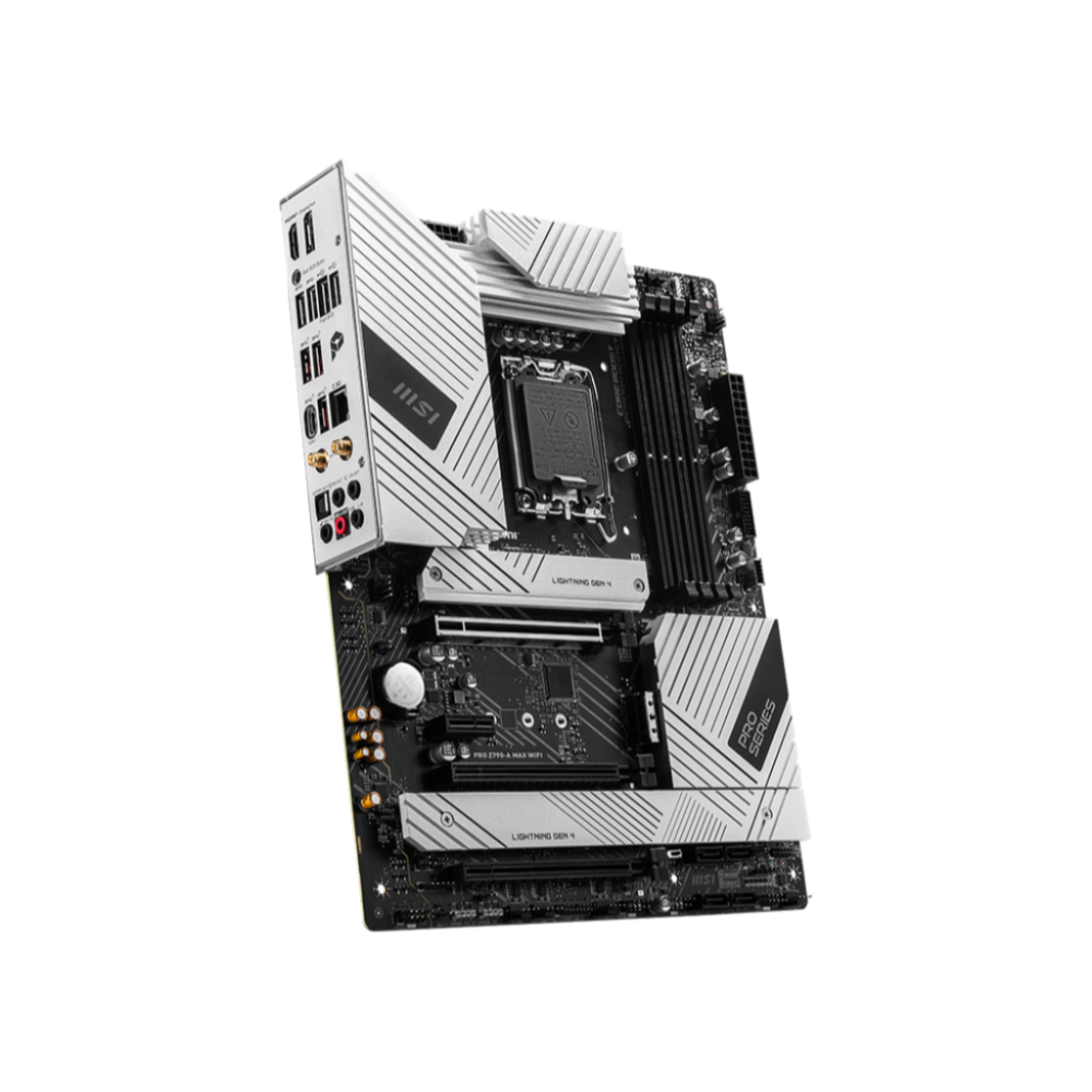

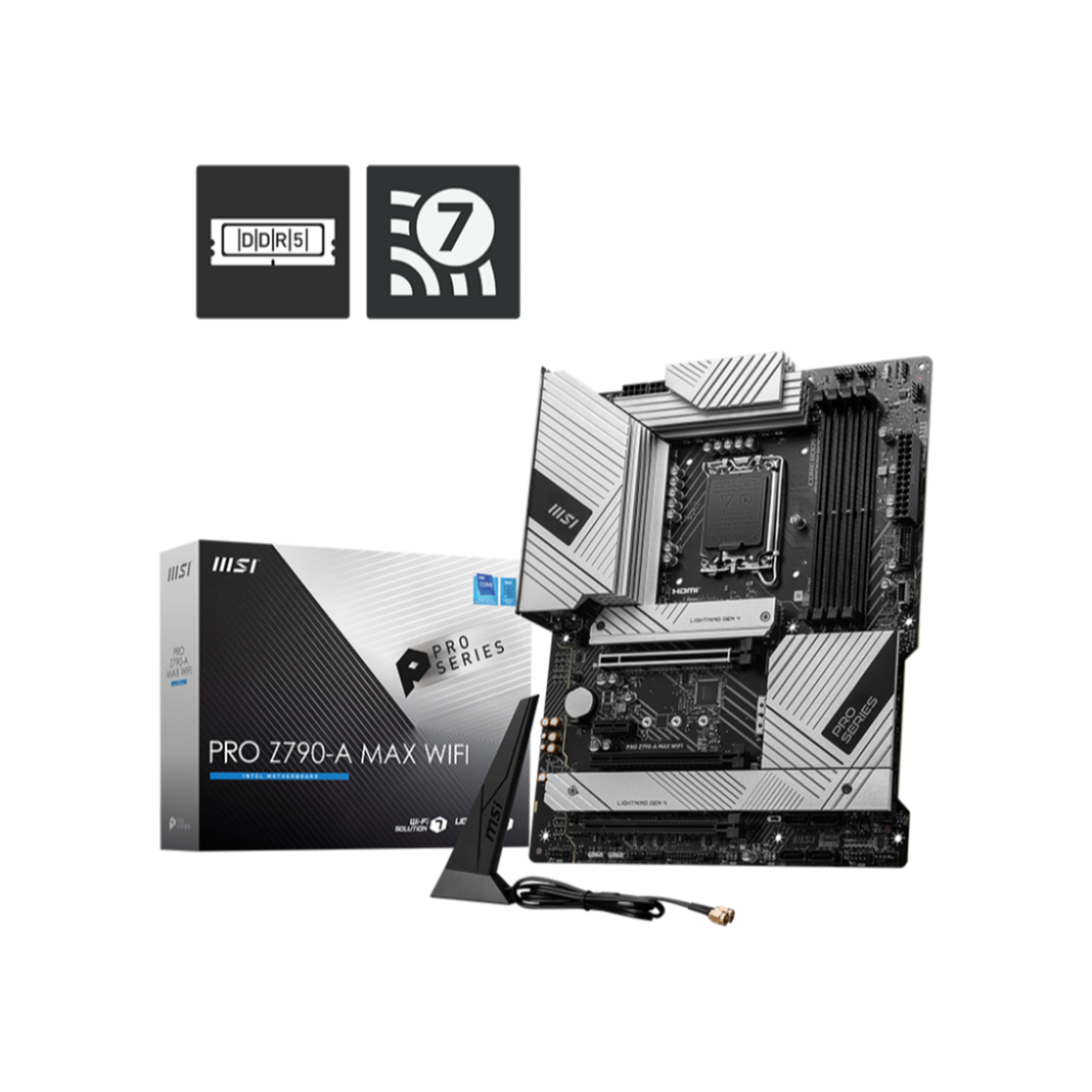

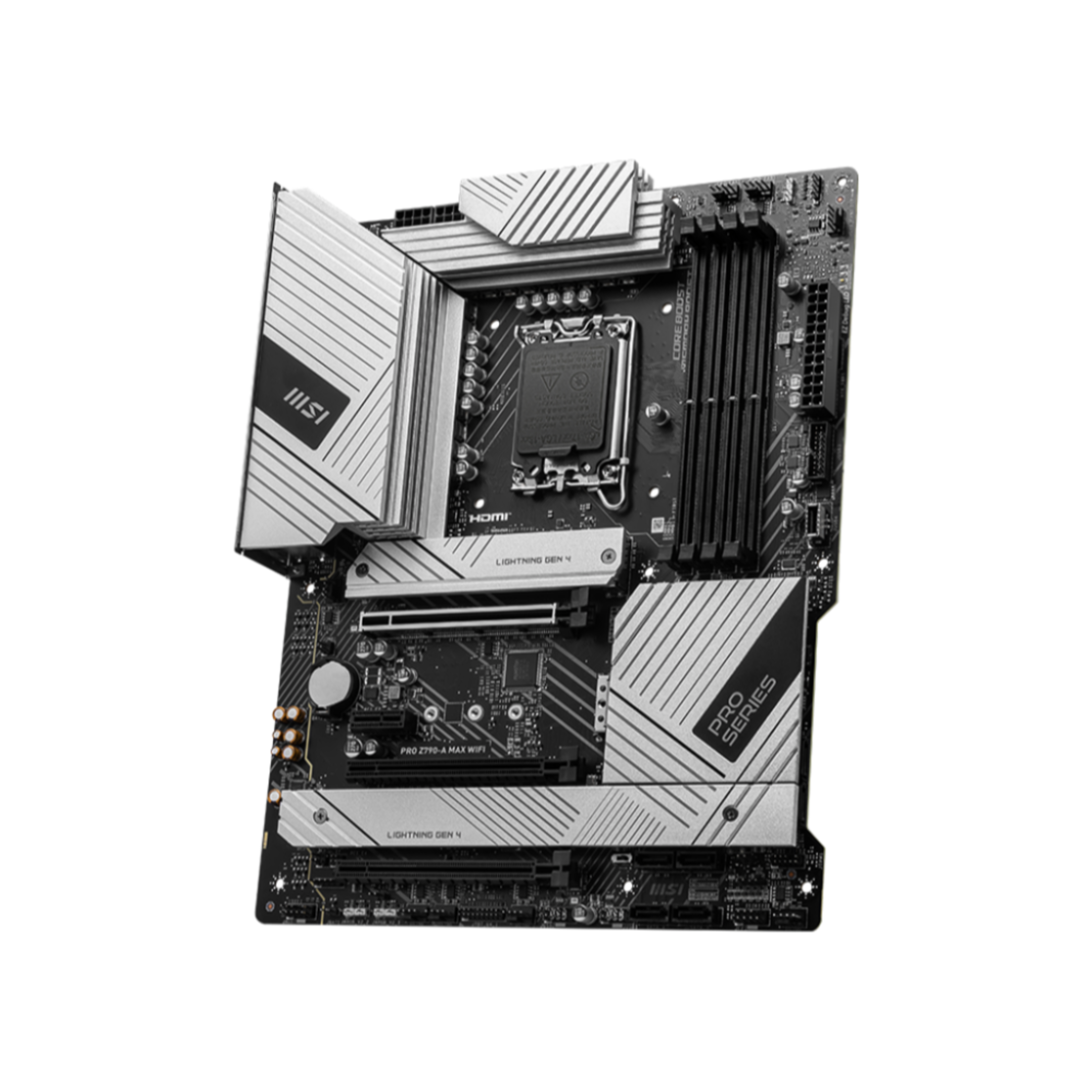

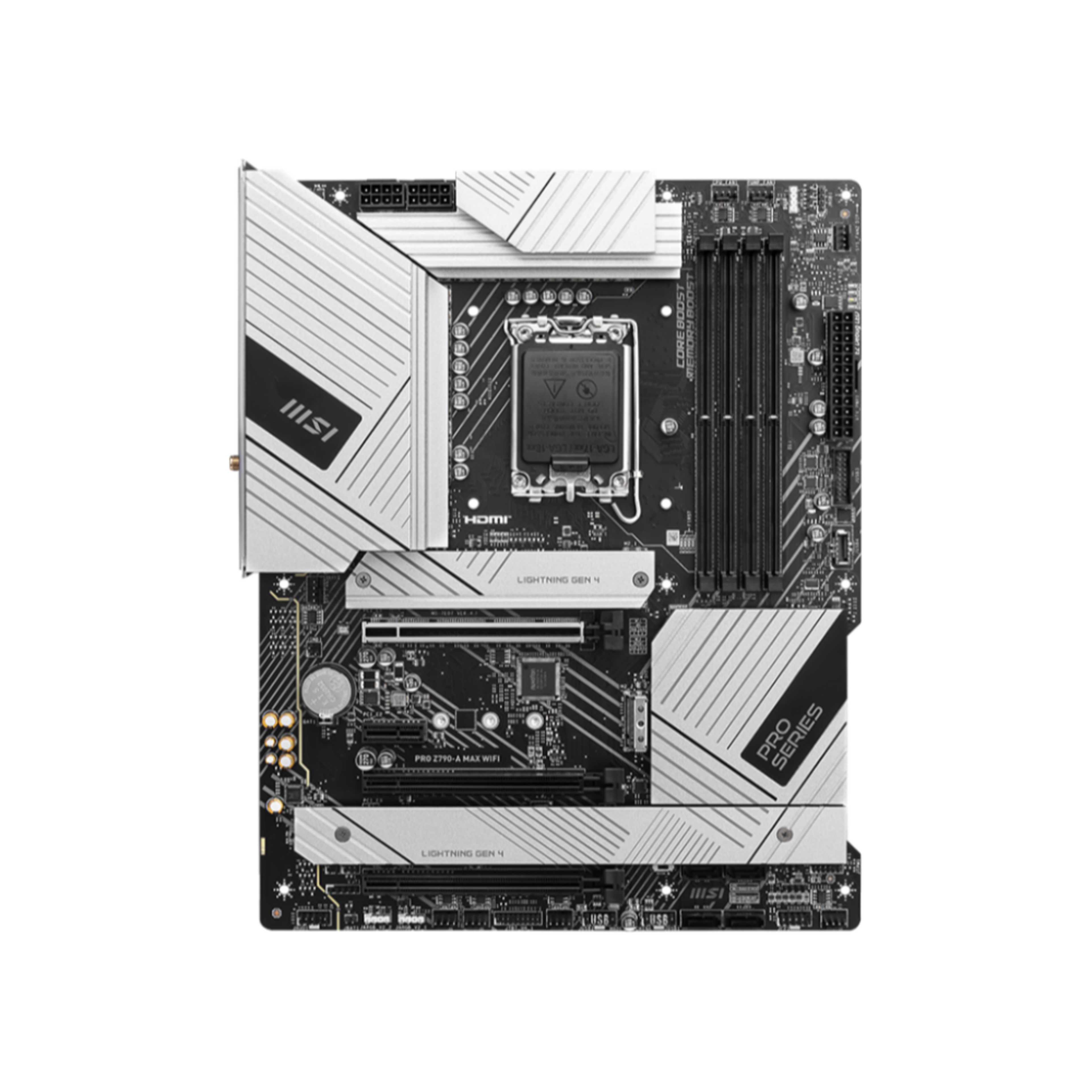

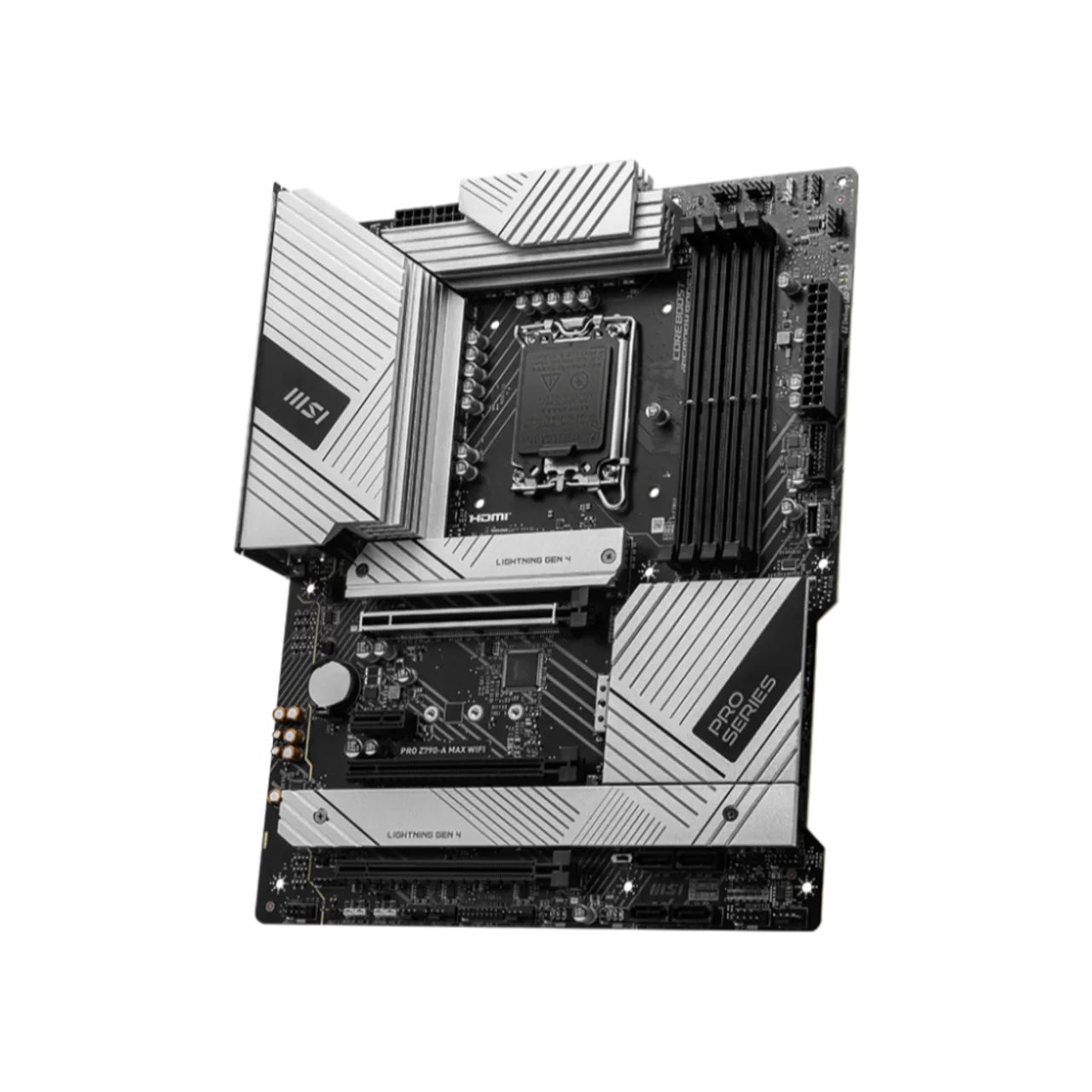

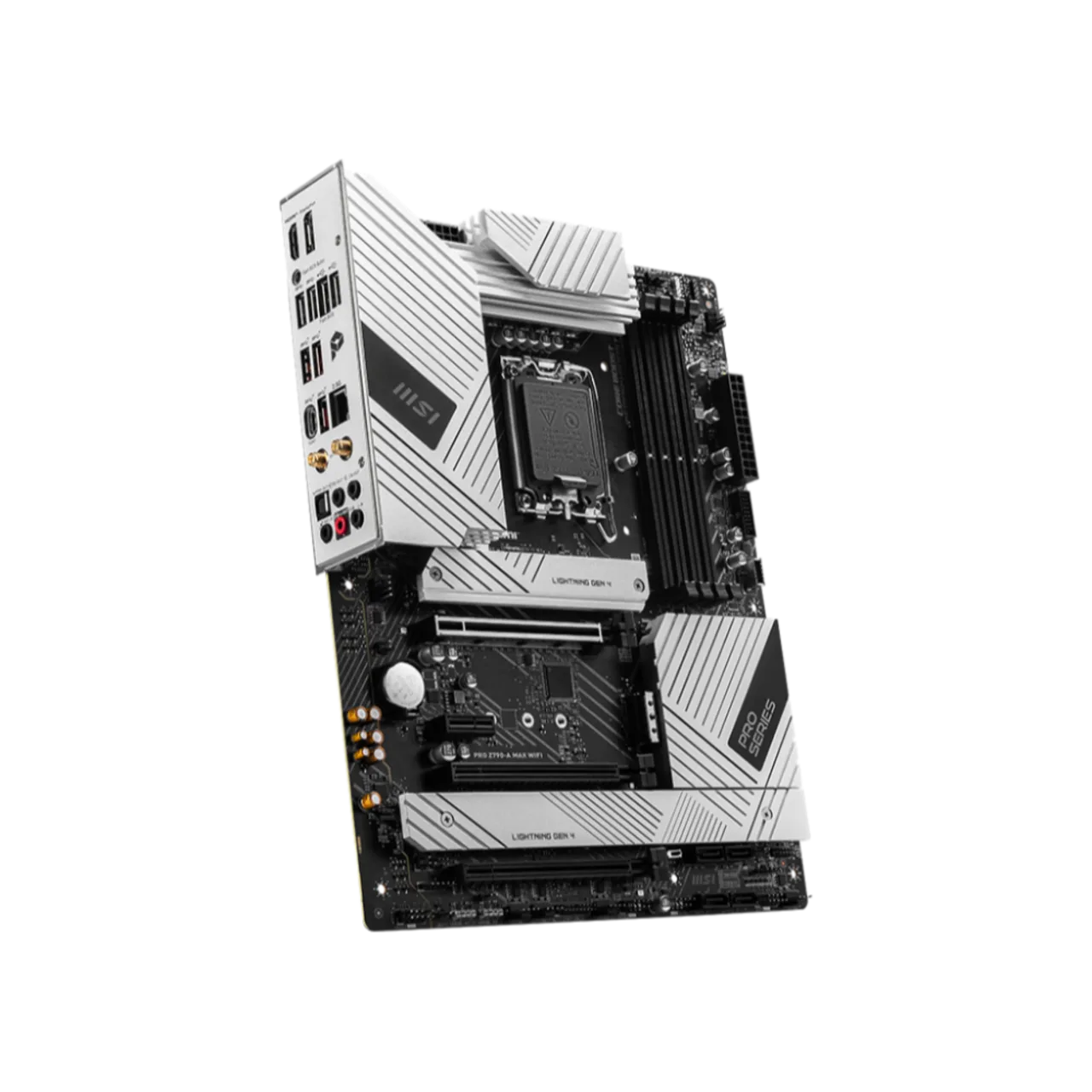

The MSI PRO Z790-A MAX WIFI is a high-performance ATX motherboard designed for Intel's latest 12th, 13th, and 14th generation processors, utilizing the LGA 1700 socket. Built on the Intel Z790 chipset, it offers robust features suitable for both professional and enthusiast users.
This motherboard supports DDR5 memory, accommodating up to 256GB across four DIMM slots, with overclocking capabilities reaching up to 7800 MHz. Its enhanced power design includes a 16+1+1 Duet Rail Power System with 80A Smart Power Stages and dual 8-pin CPU power connectors, ensuring stable power delivery for high-performance CPUs.
For expansion, the PRO Z790-A MAX WIFI provides a PCIe 5.0 x16 slot for graphics cards, a PCIe 4.0 x16 slot (operating at x4), and a PCIe 3.0 x1 slot for additional peripherals. Storage options are ample, with four M.2 slots supporting PCIe 4.0 x4 NVMe SSDs and six SATA III ports, accommodating various storage configurations.

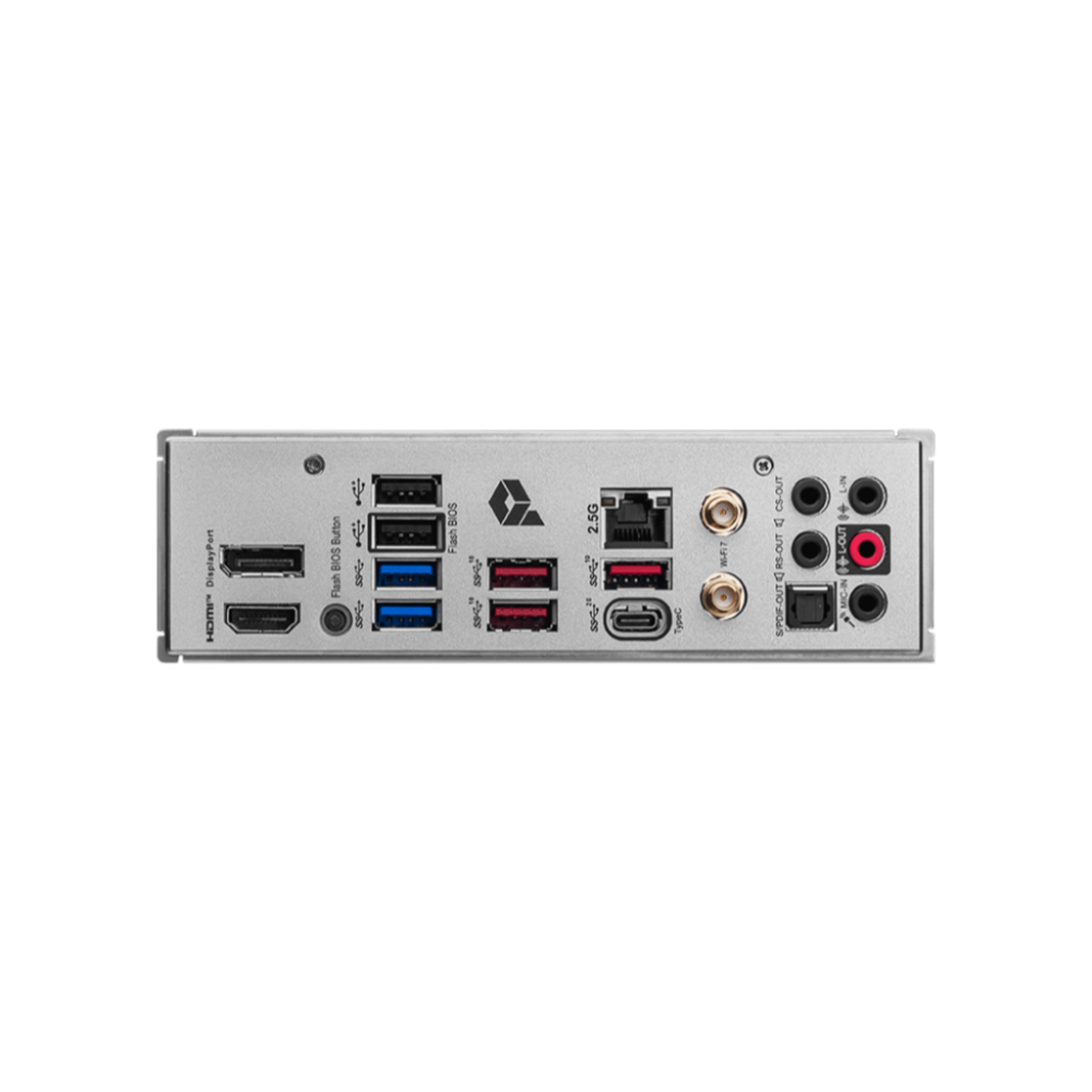

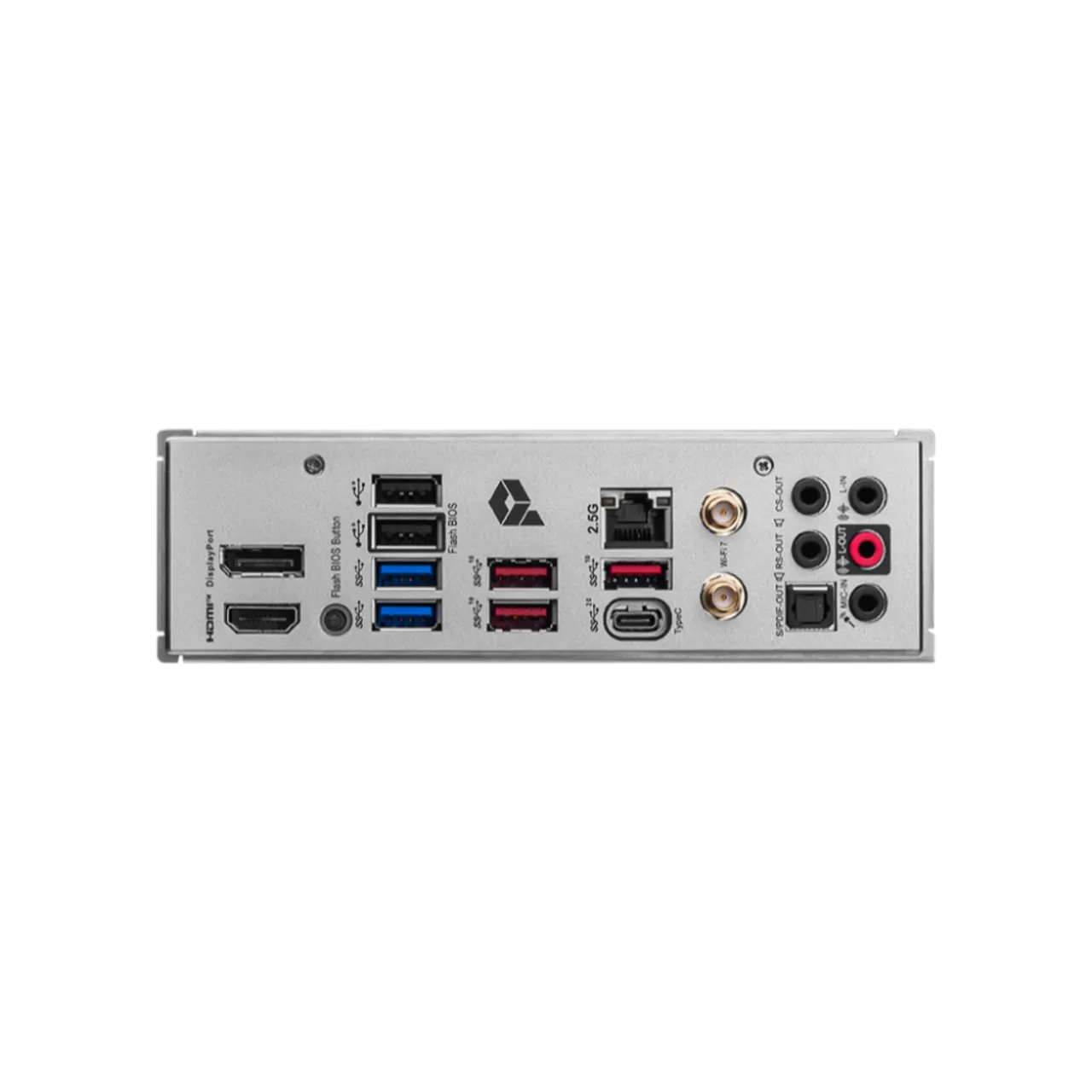

Connectivity features include a 2.5Gbps LAN port and integrated Wi-Fi 7 with Bluetooth 5.4, ensuring high-speed wired and wireless networking. The rear I/O panel includes multiple USB ports: USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-A, and USB 2.0 ports. Display outputs consist of HDMI 2.1 and DisplayPort 1.4, supporting resolutions up to 4K at 60Hz, catering to users utilizing integrated graphics.
Constructed with a six-layer PCB using 2oz thickened copper, the PRO Z790-A MAX WIFI ensures durability and efficient heat dissipation. Additional features like M.2 Shield Frozr provide thermal protection for SSDs, maintaining optimal performance. The motherboard also includes MSI's Core Boost and Memory Boost technologies for efficient power delivery and enhanced memory performance.
In summary, the MSI PRO Z790-A MAX WIFI combines advanced features and robust build quality, making it an excellent choice for building a high-performance PC system.
