Overview
The B760M PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It’s compatible with Intel 14th/13th/12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 6E solution. This makes it an excellent choice among mATX motherboards.
MSI B760M Project Zero Price in Pakistan

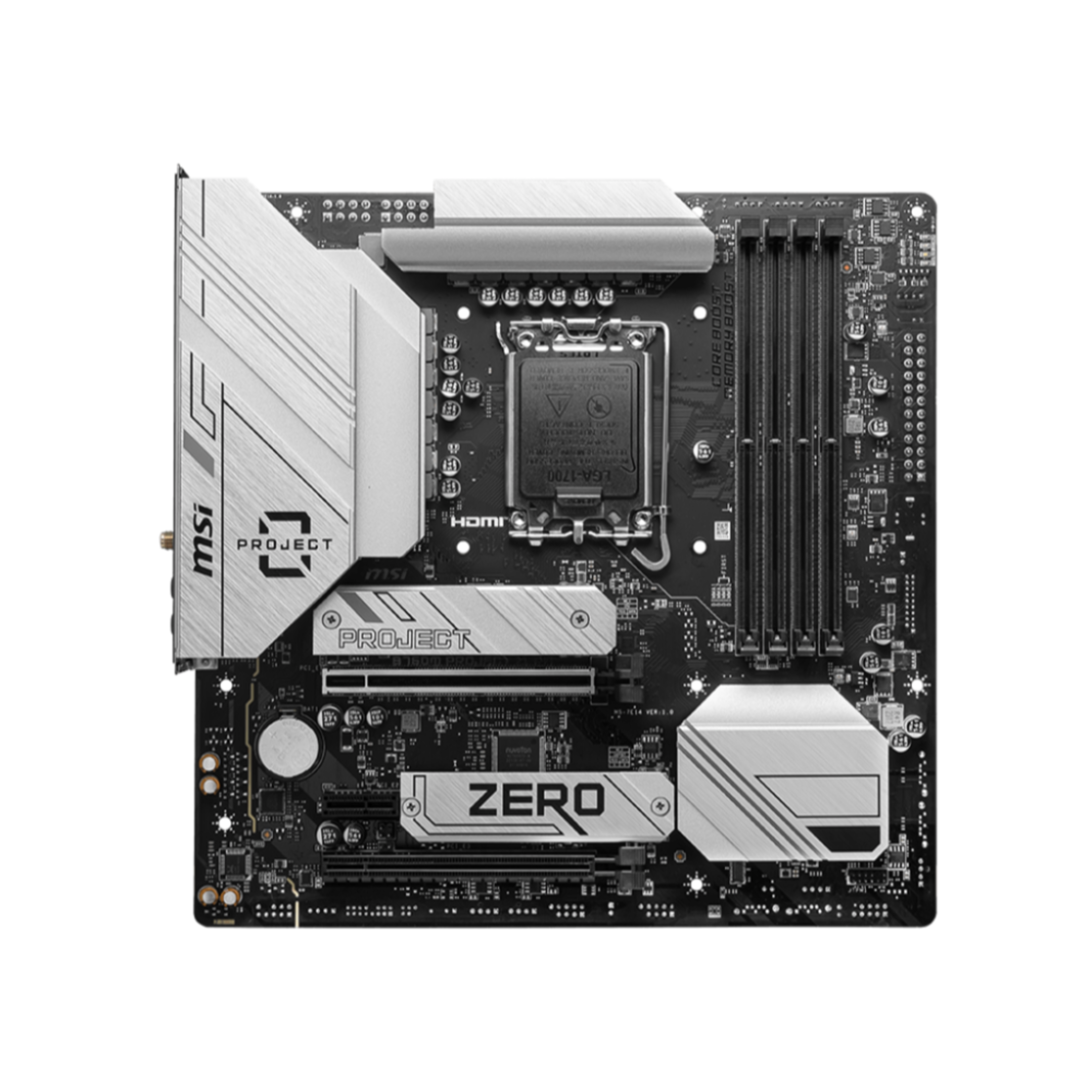

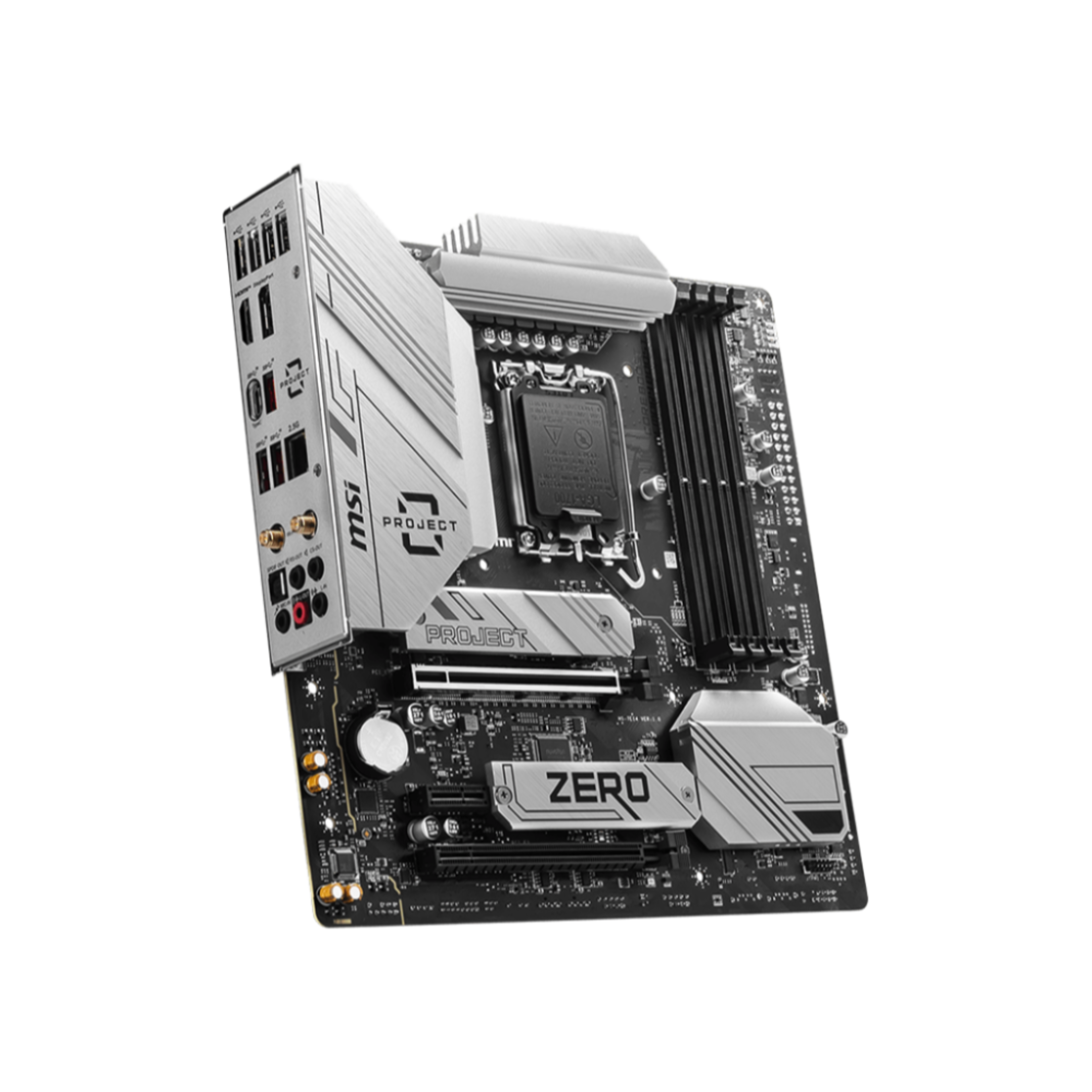

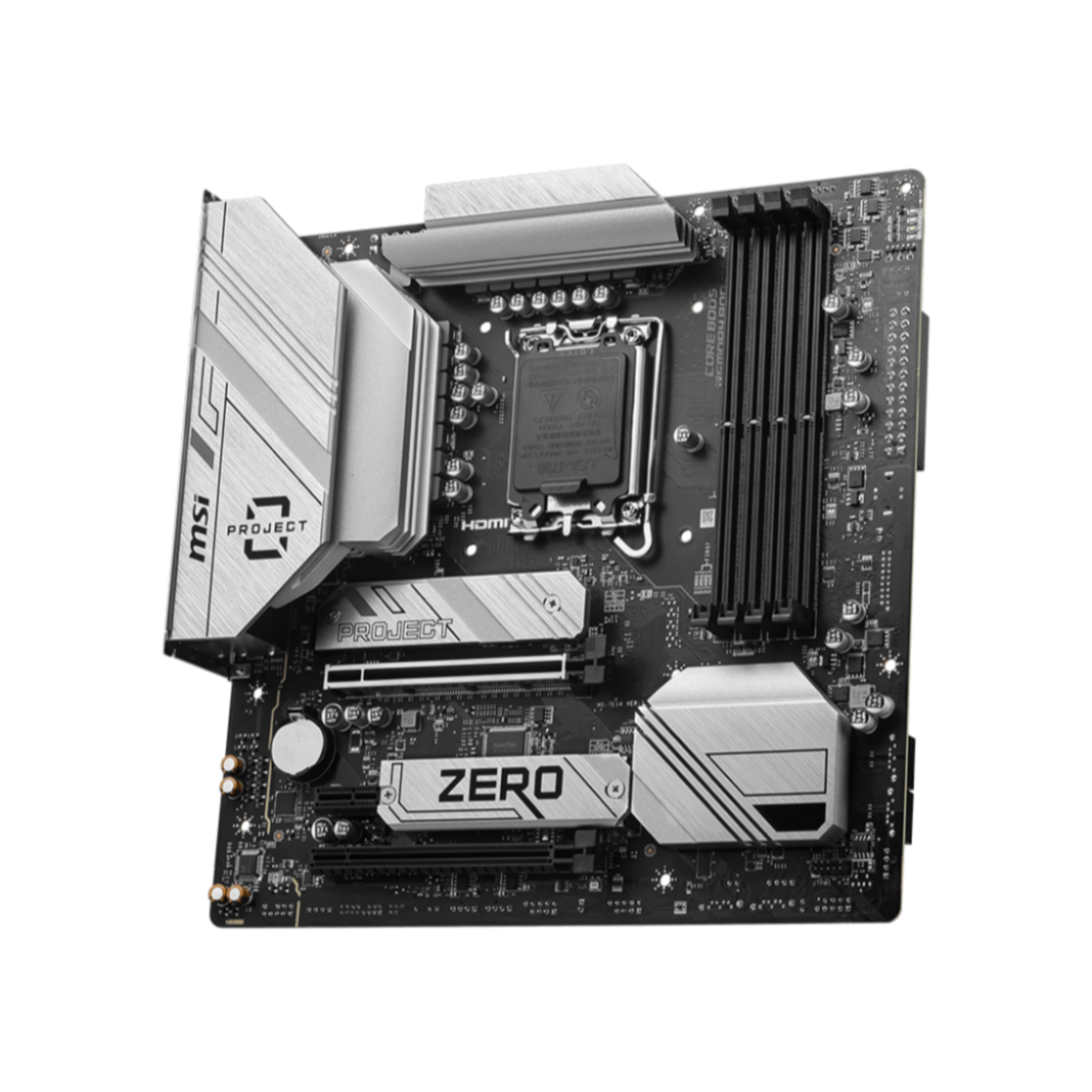

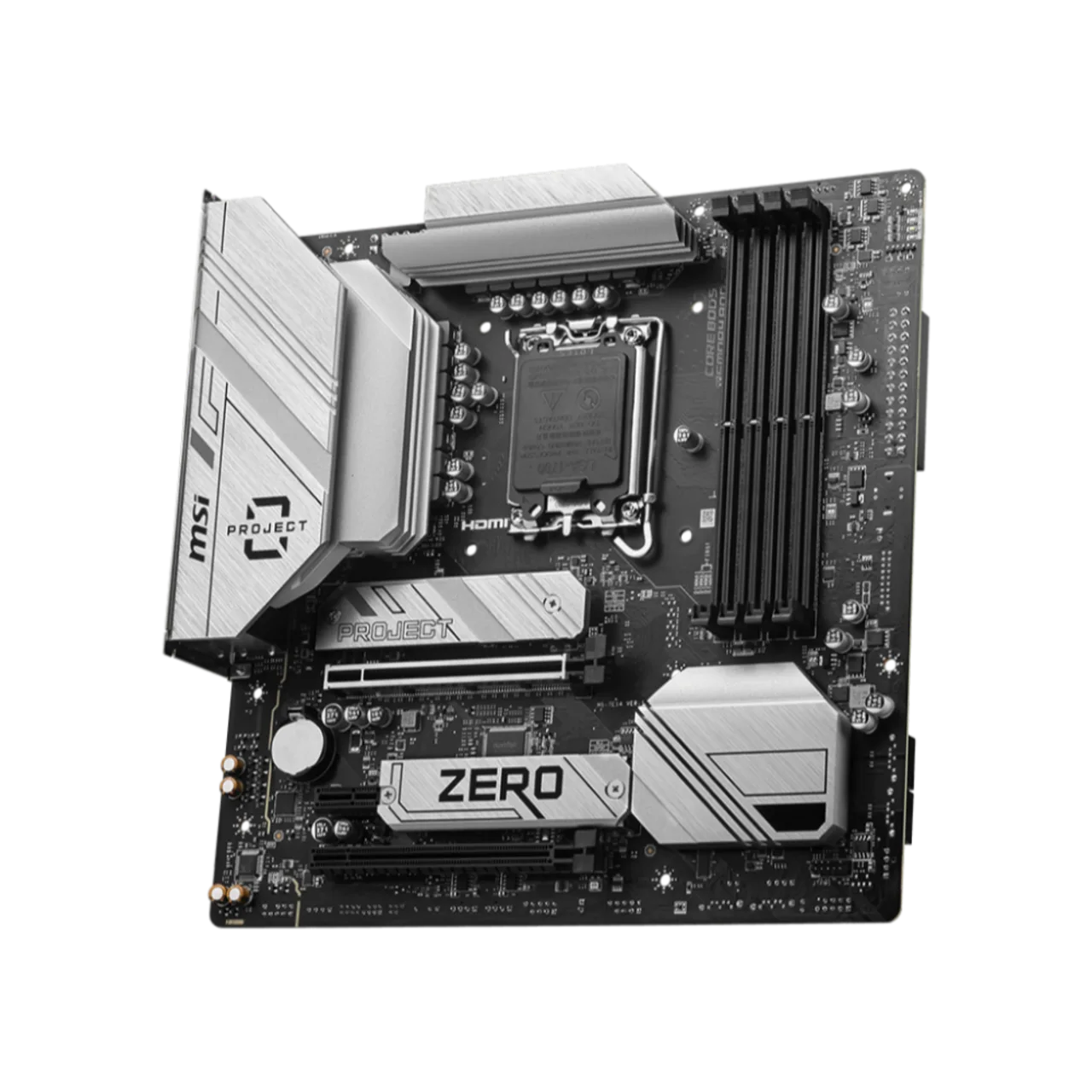

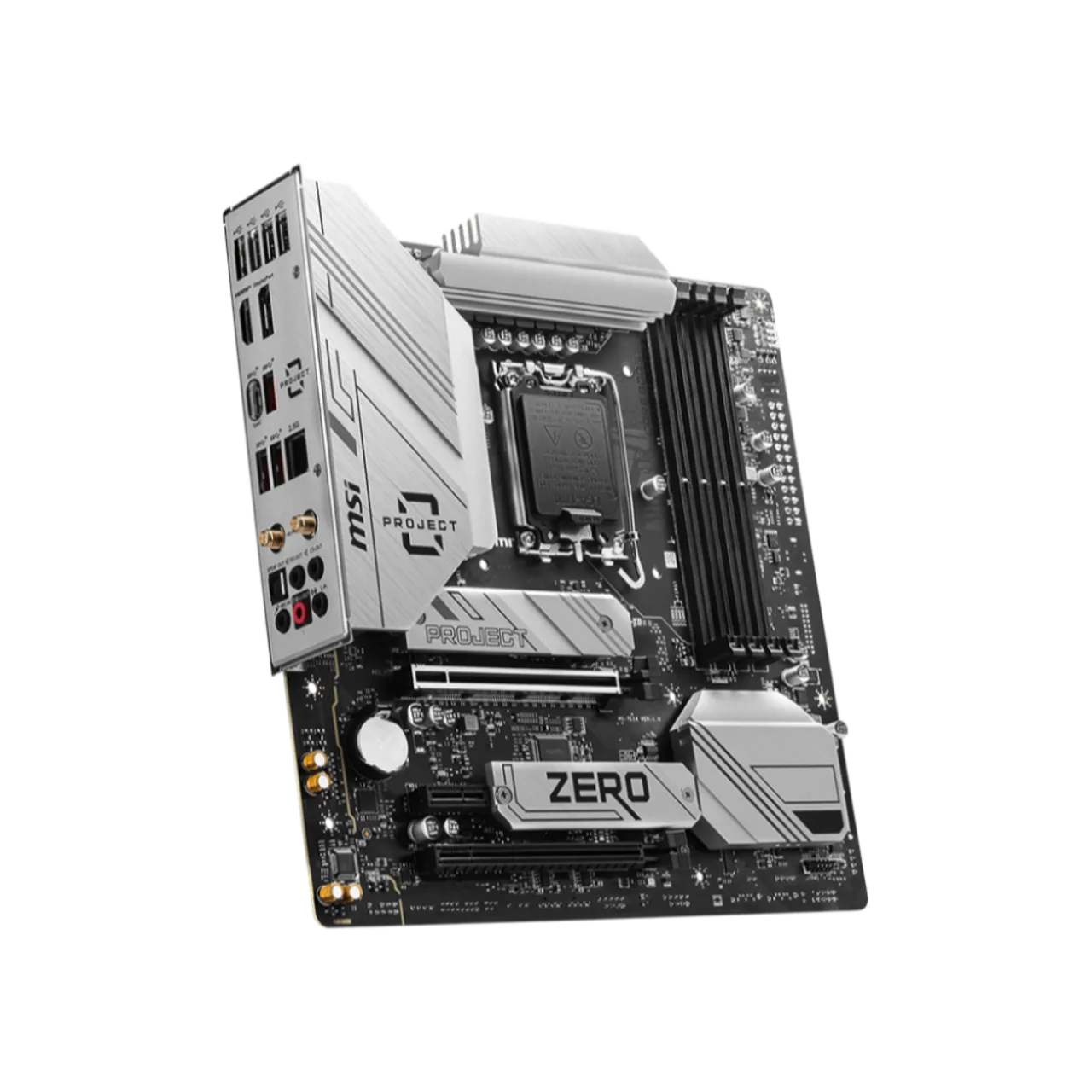

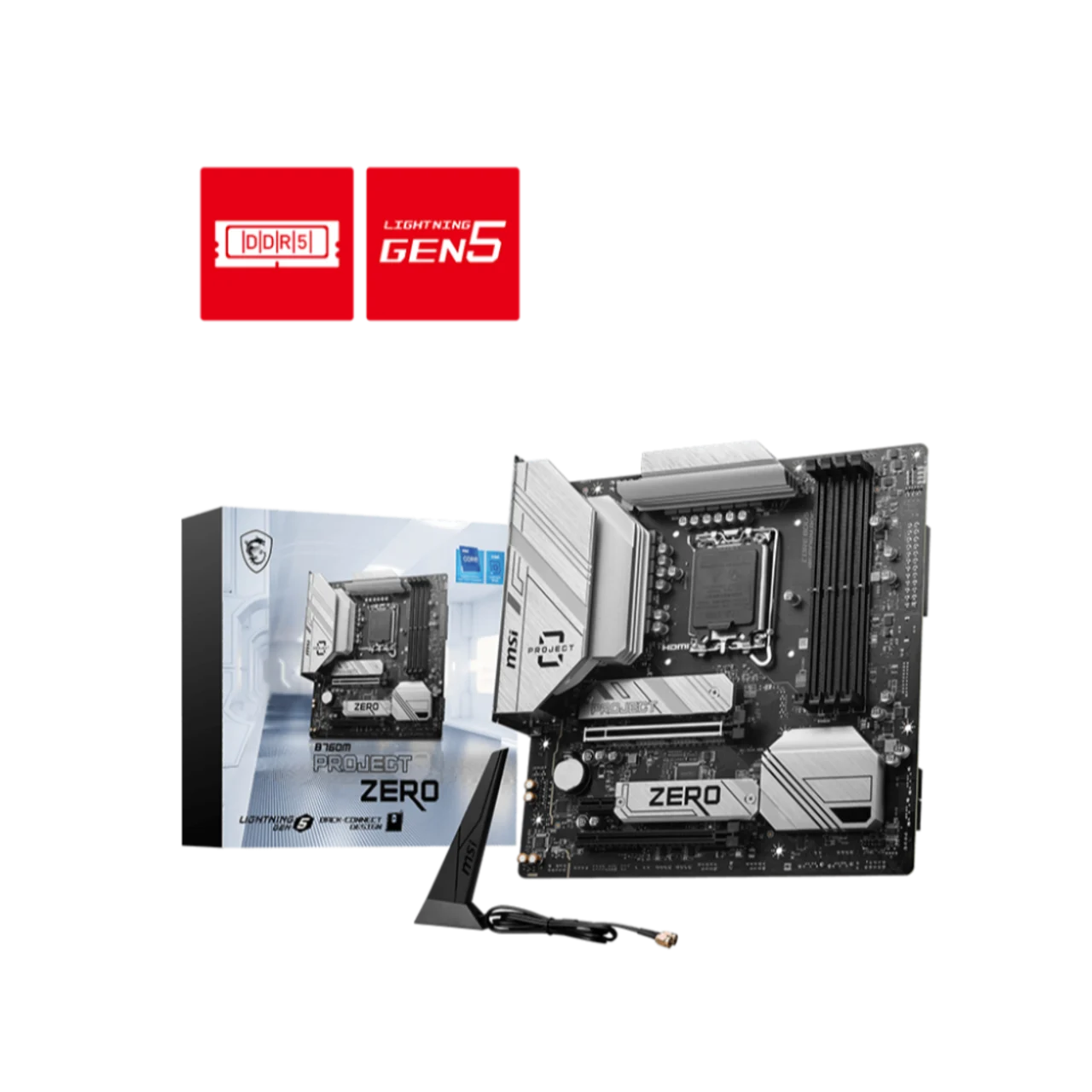

The MSI B760M Project Zero is a cutting-edge Micro-ATX motherboard that redefines PC building aesthetics and performance. Designed for Intel's 12th, 13th, and 14th Gen Core processors, it features the LGA 1700 socket and Intel B760 chipset, ensuring compatibility with the latest CPUs. A standout feature is its innovative back-connect design, relocating all connectors to the rear of the board. This approach streamlines cable management, resulting in a cleaner, more organized build and improved airflow, especially when paired with compatible cases from the Project Zero ecosystem.
Performance-wise, the B760M Project Zero supports up to 256GB of DDR5 memory across four DIMM slots, with overclocking capabilities reaching up to 7800 MHz. Its robust 12+1+1 Duet Rail Power System, complemented by dual 8-pin CPU power connectors, ensures stable power delivery, even for high-end CPUs like the Core i9 series.
For expansion, the motherboard offers a PCIe 5.0 x16 slot for graphics cards, a PCIe 4.0 x16 slot (operating at x4), and a PCIe 3.0 x1 slot for additional peripherals. Storage options are ample, with two M.2 slots supporting PCIe 4.0 x4 NVMe SSDs and four SATA III ports, accommodating various storage configurations.

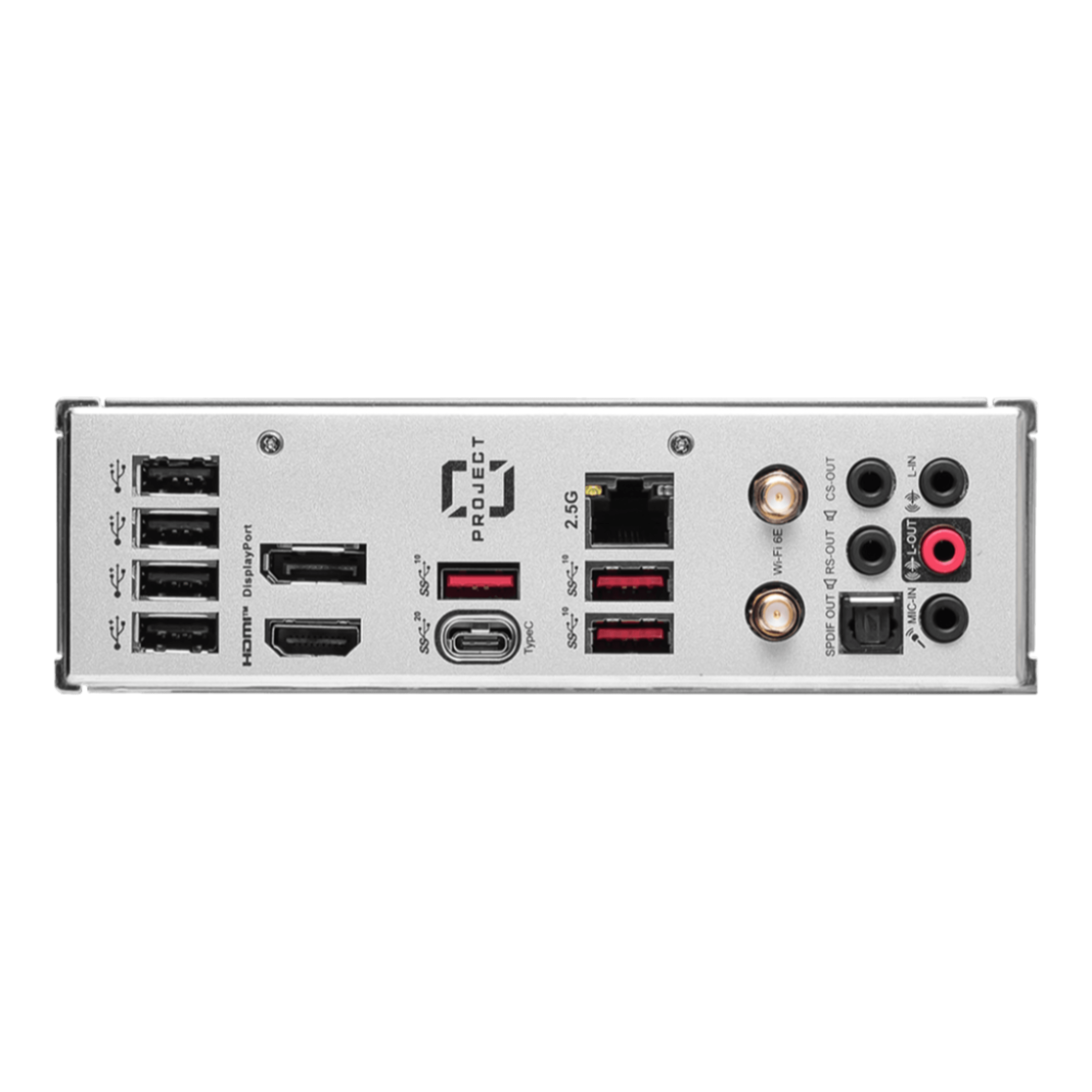

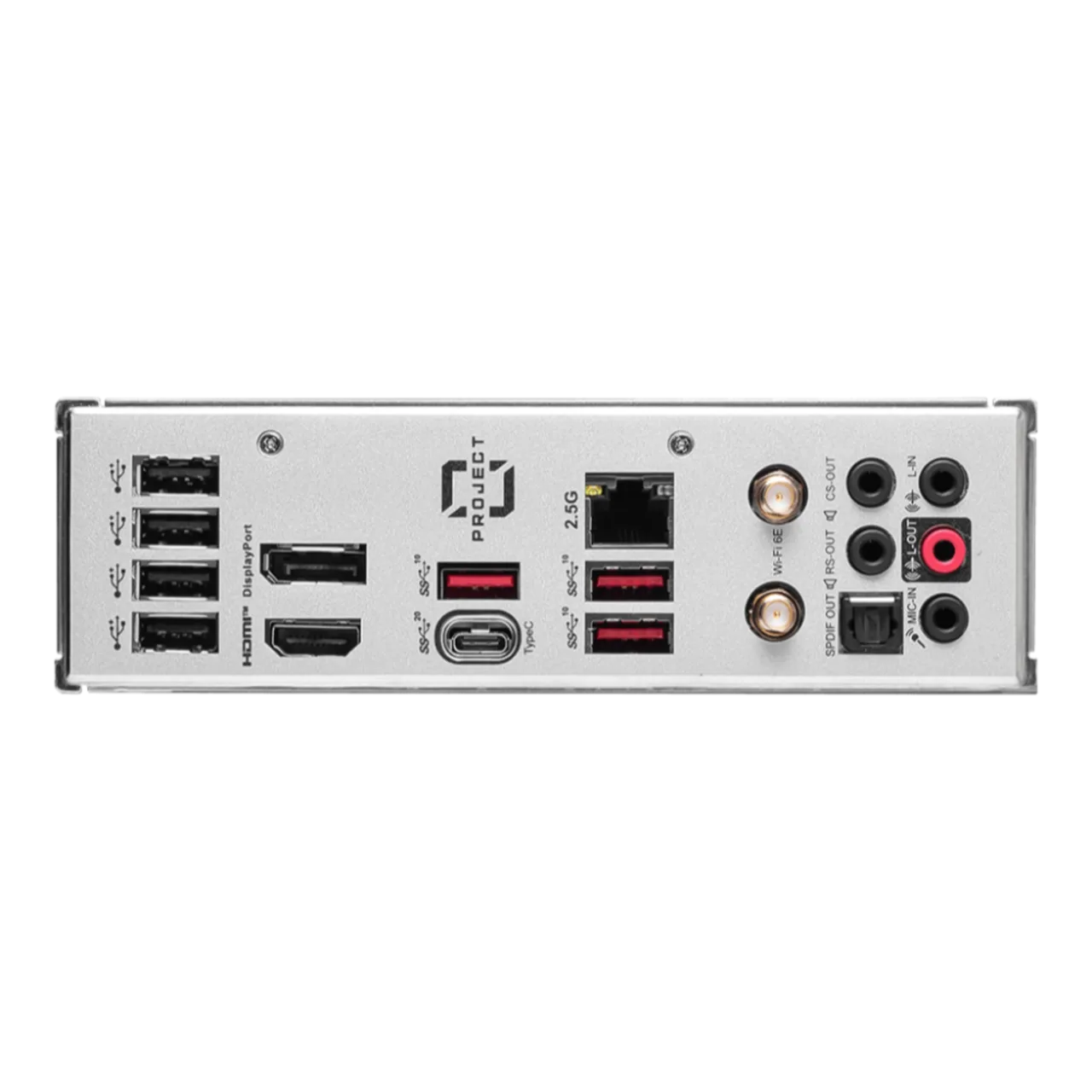

Connectivity is comprehensive, featuring a 2.5Gbps LAN port and integrated Wi-Fi 6E with Bluetooth 5.3, ensuring high-speed wired and wireless networking. The rear I/O panel includes multiple USB ports: three USB 3.2 Gen 2 Type-A, one USB 3.2 Gen 2x2 Type-C, and four USB 2.0 ports. Display outputs consist of HDMI 2.1 and DisplayPort 1.4, supporting resolutions up to 4K at 60Hz, catering to users utilizing integrated graphics.
Constructed with a six-layer PCB using 2oz thickened copper, the B760M Project Zero ensures durability and efficient heat dissipation. Additional features like M.2 Shield Frozr provide thermal protection for SSDs, maintaining optimal performance.
In summary, the MSI B760M Project Zero combines innovative design with high-end features, making it an excellent choice for builders seeking both aesthetics and performance in their PC setups.
