Overview
MSI PRO B450M-A MAX II is a micro-ATX motherboard designed for AMD Ryzen 1000 to 5000 series processors. It supports up to 64GB DDR4 memory with overclocking up to 4133 MHz, features a PCIe 3.0 x16 slot, one M.2 slot for fast storage, and four SATA III ports. The board includes Realtek 2.5G LAN, 7.1-channel audio, HDMI and DVI display outputs, and Core Boost for stable power delivery—ideal for reliable budget AM4 builds.

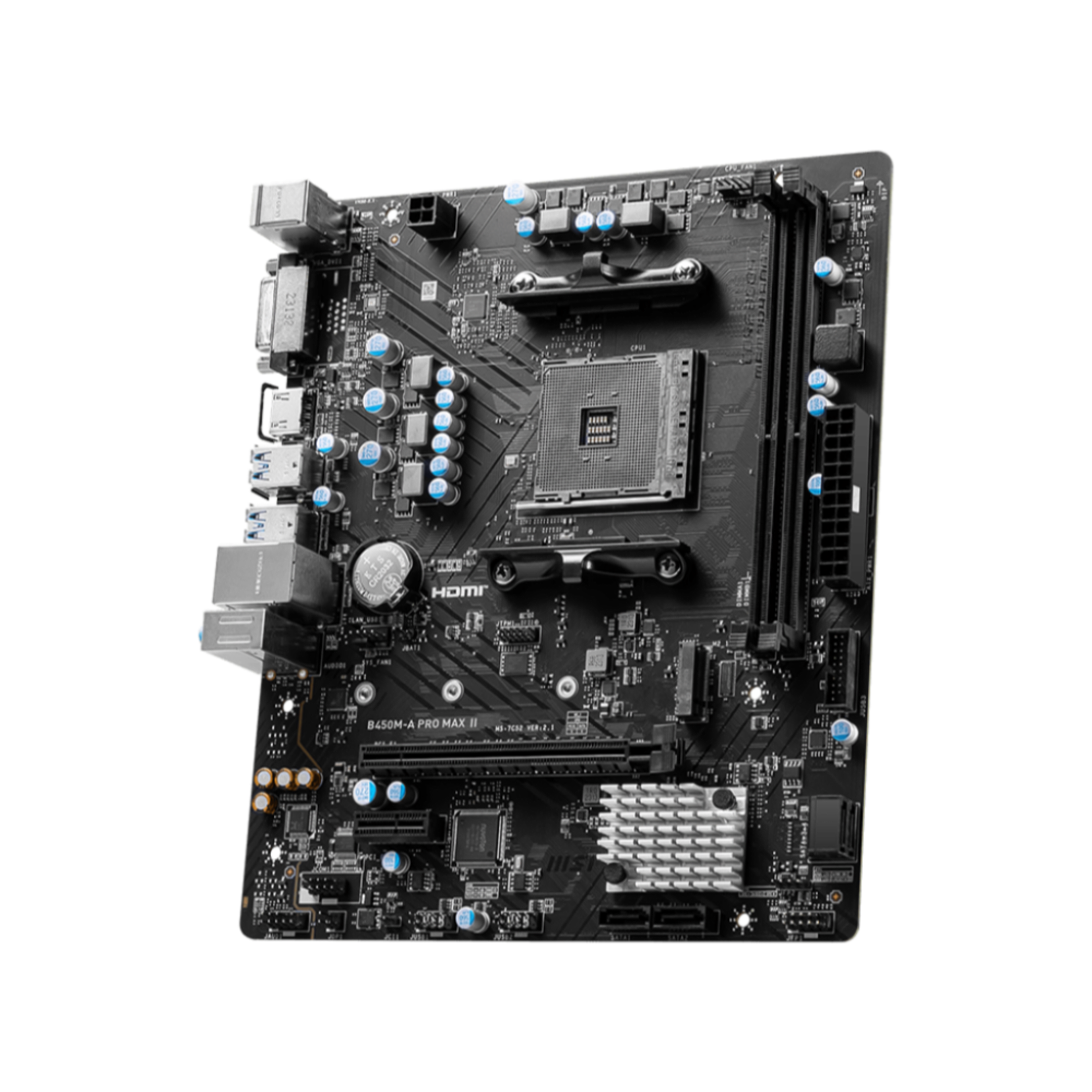

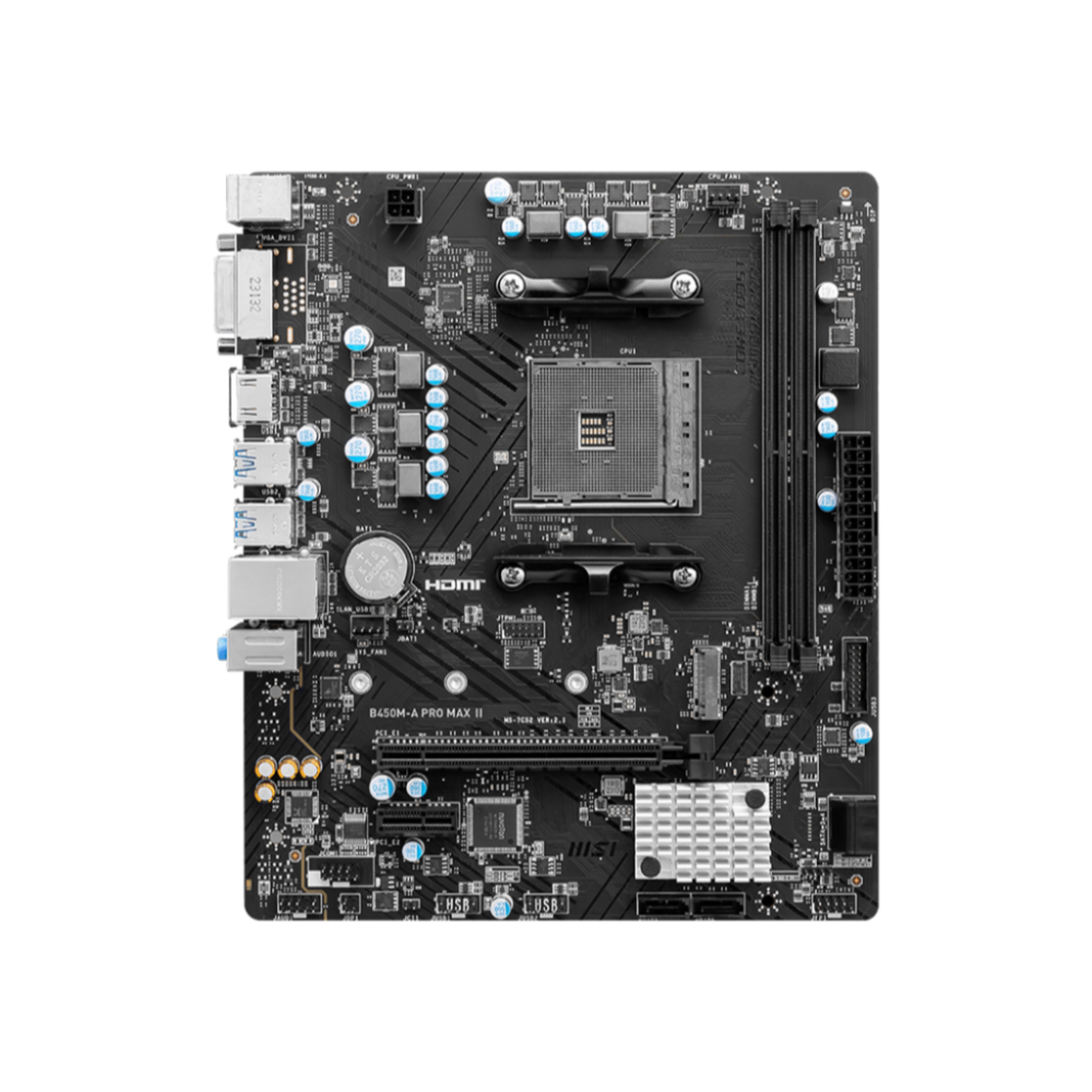

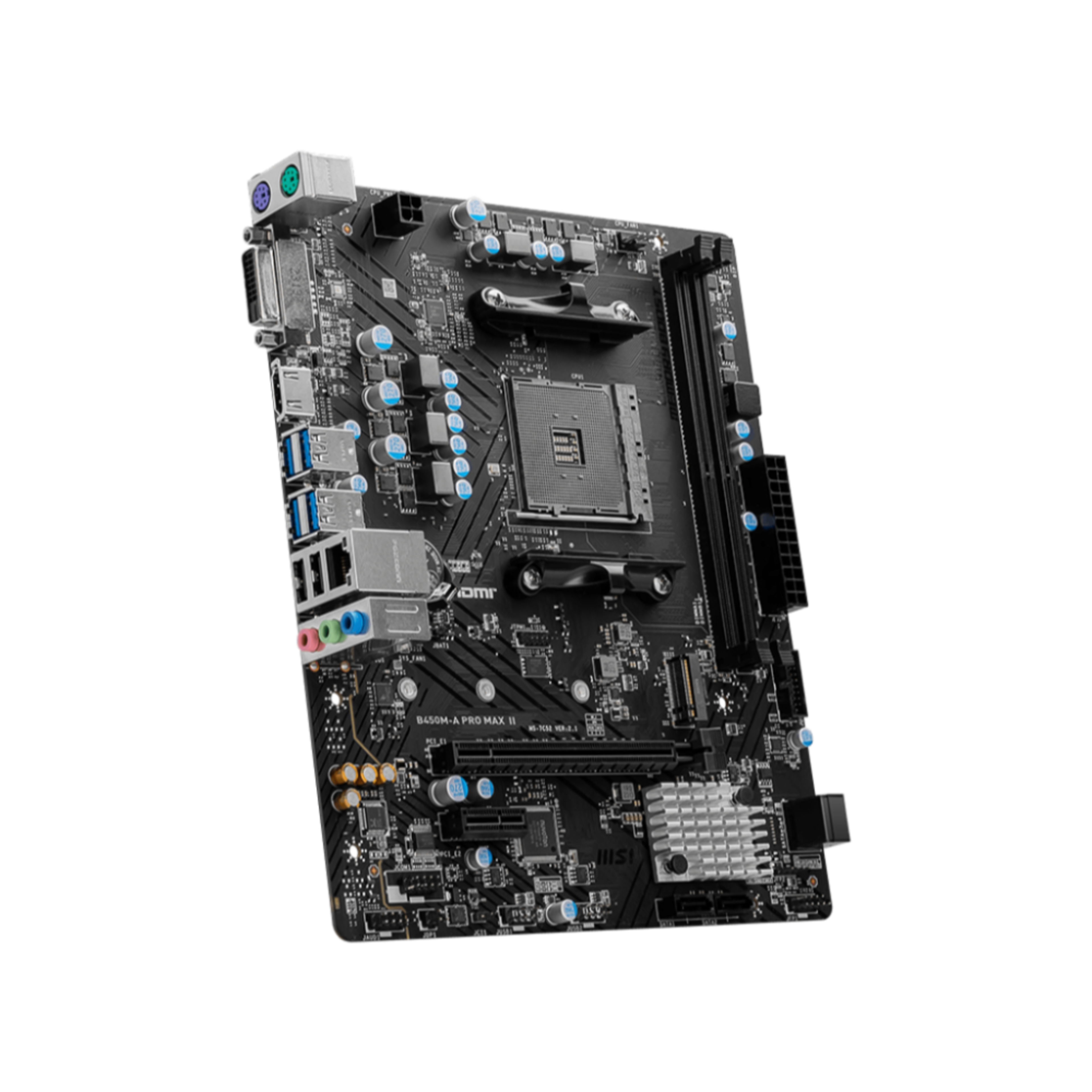

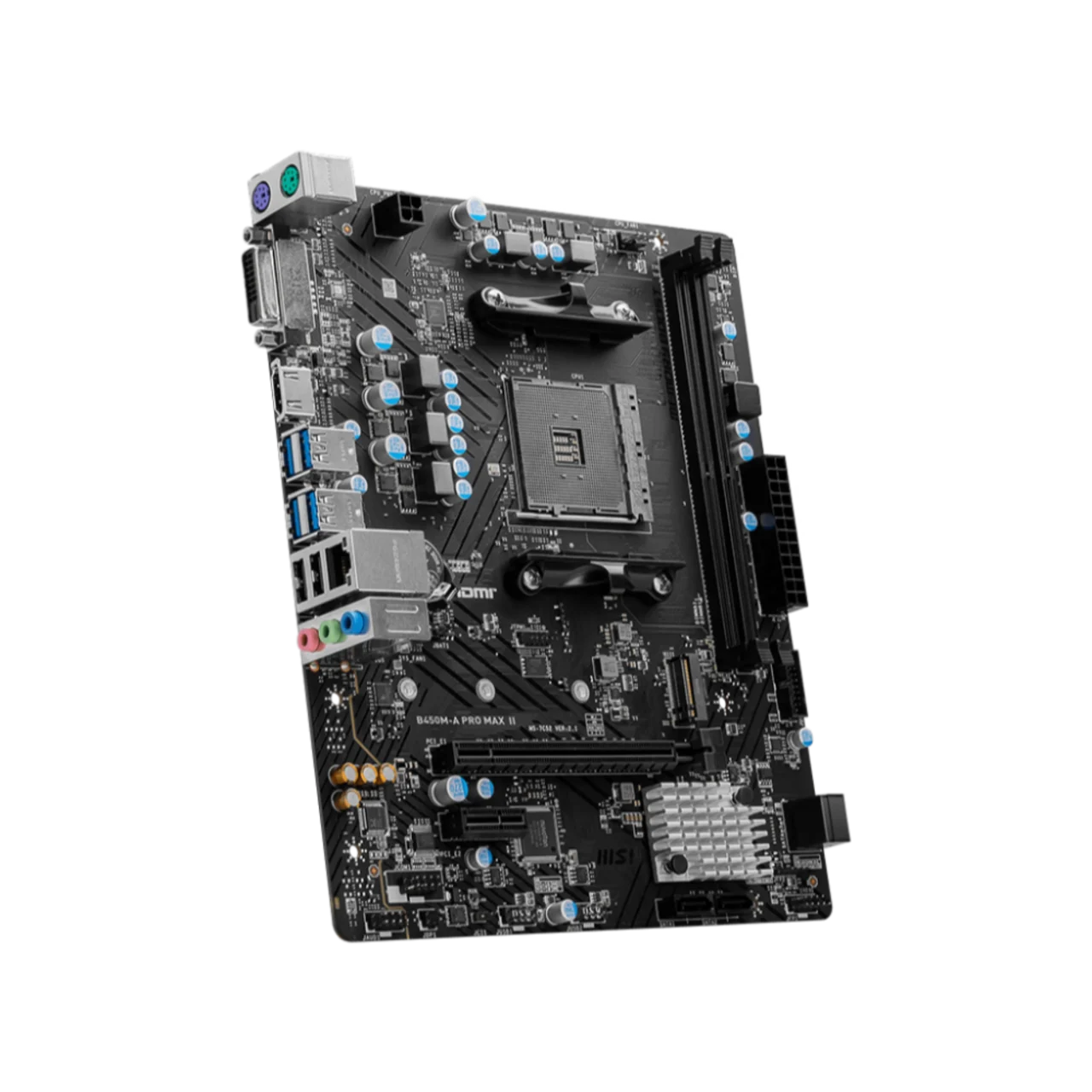

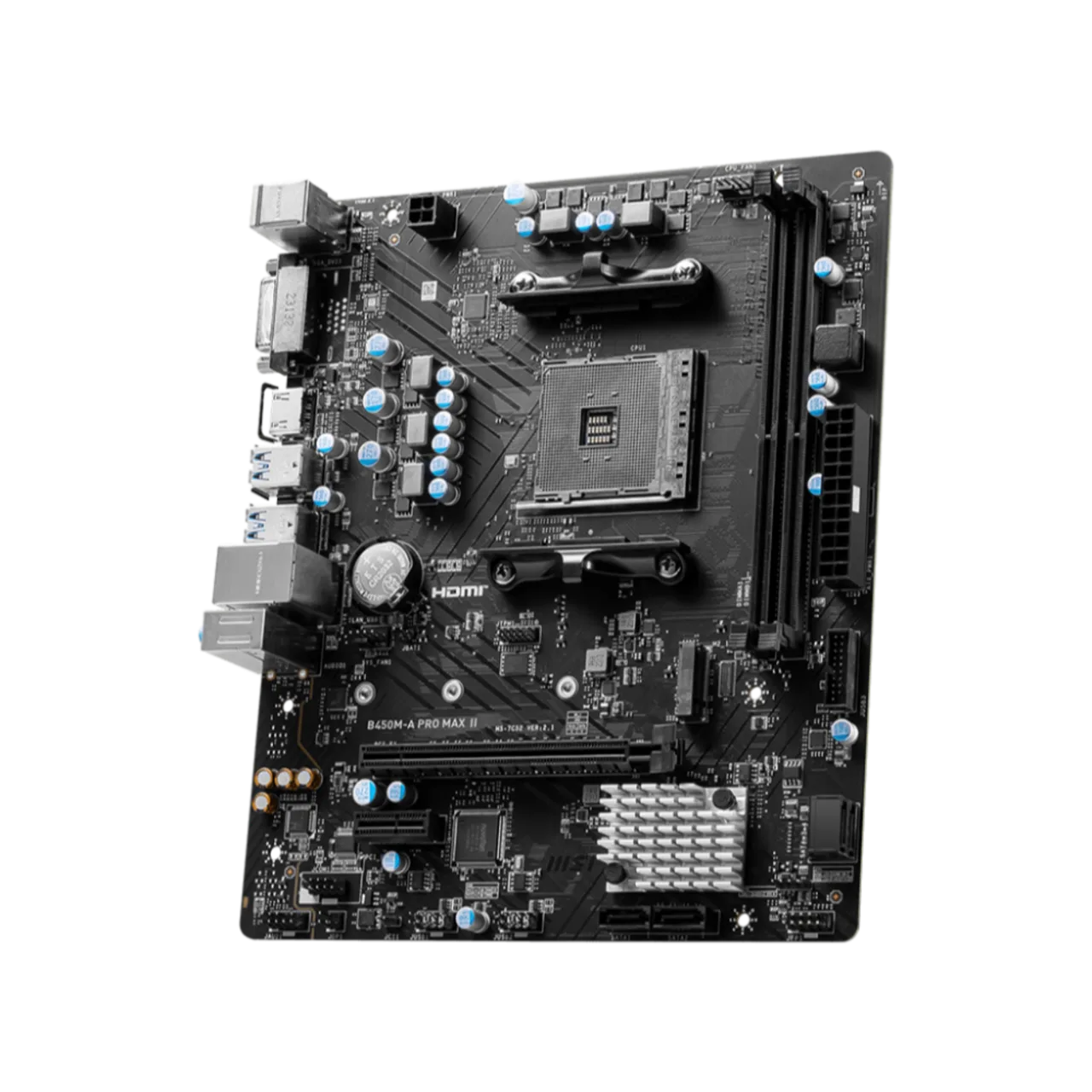

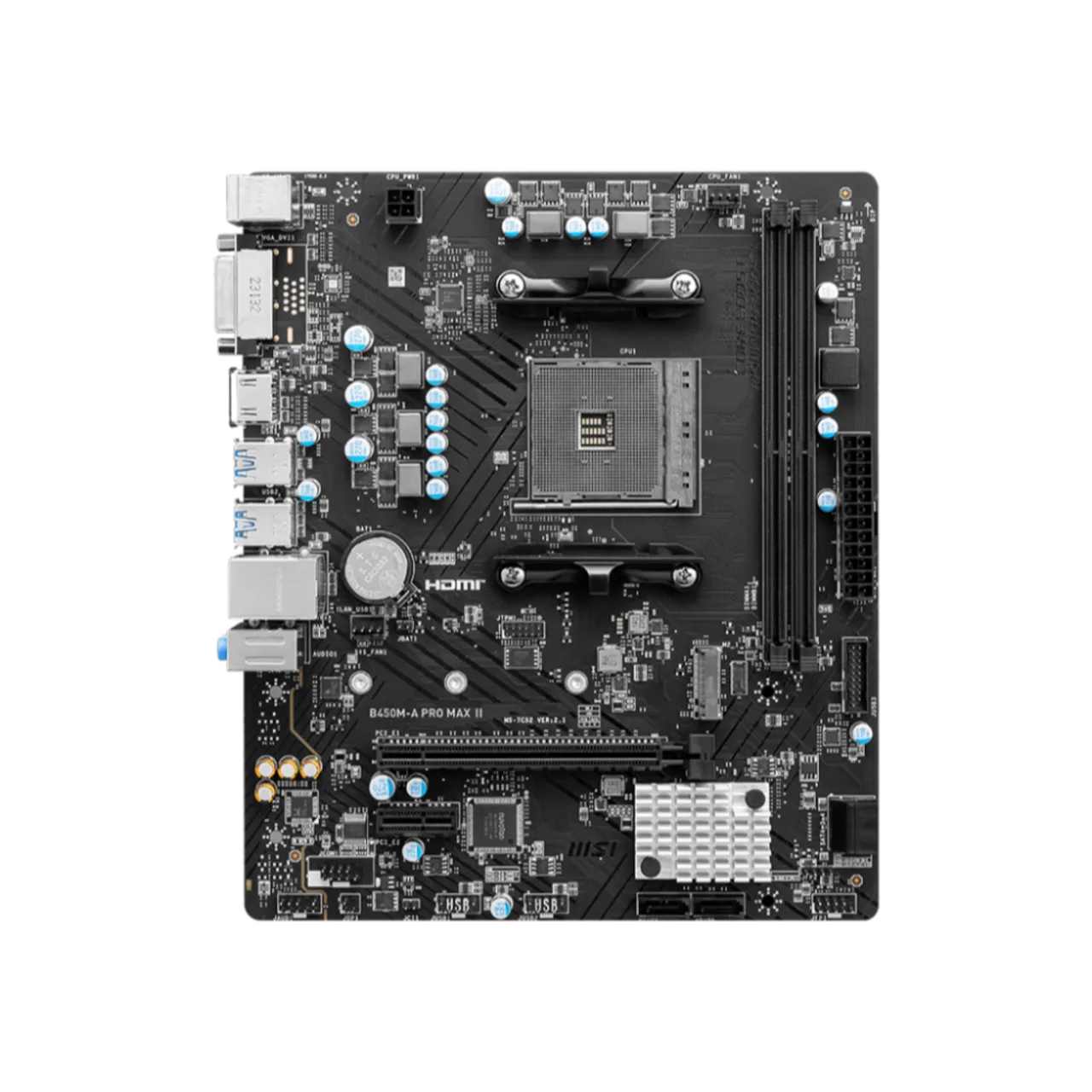

MSI PRO B450M-A MAX II

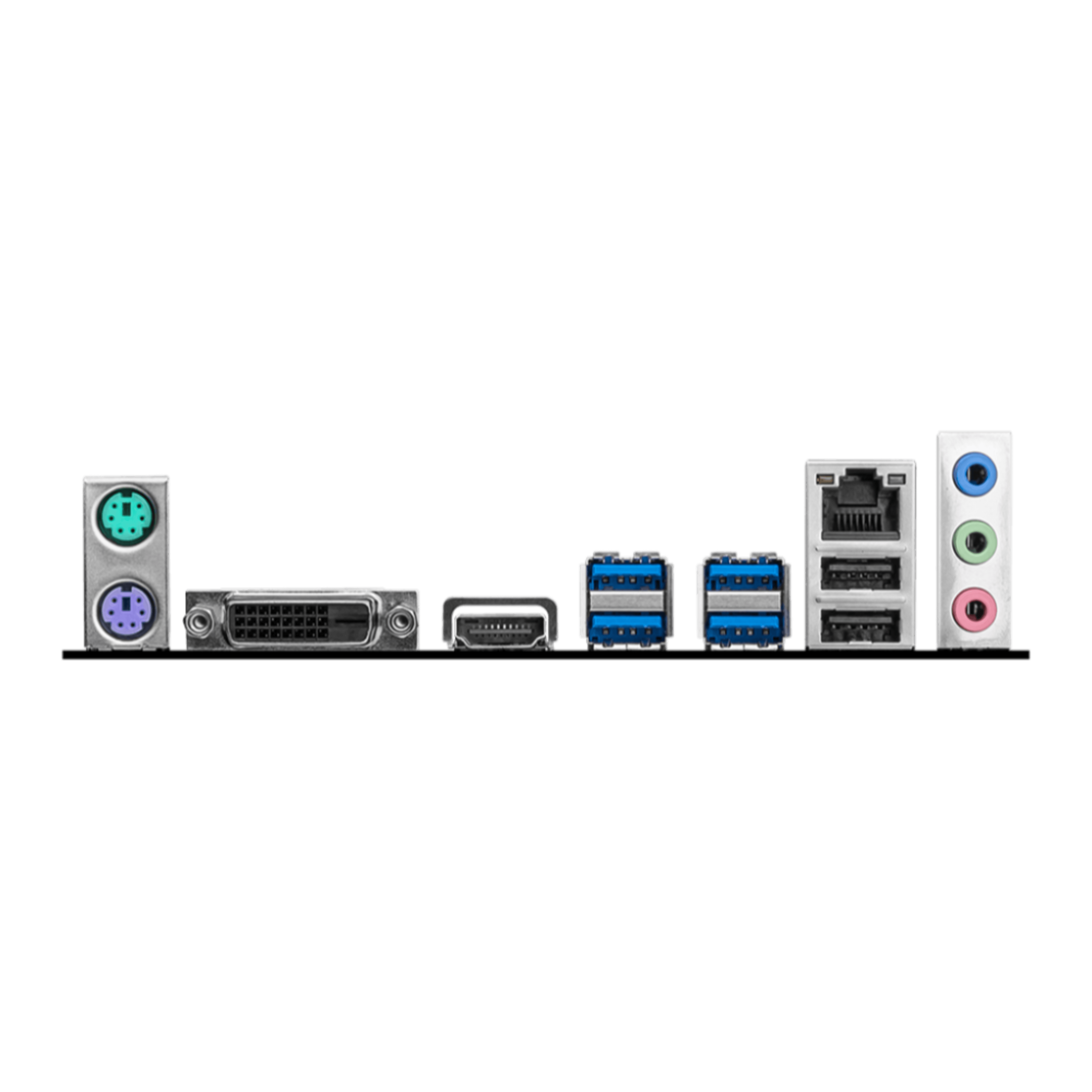

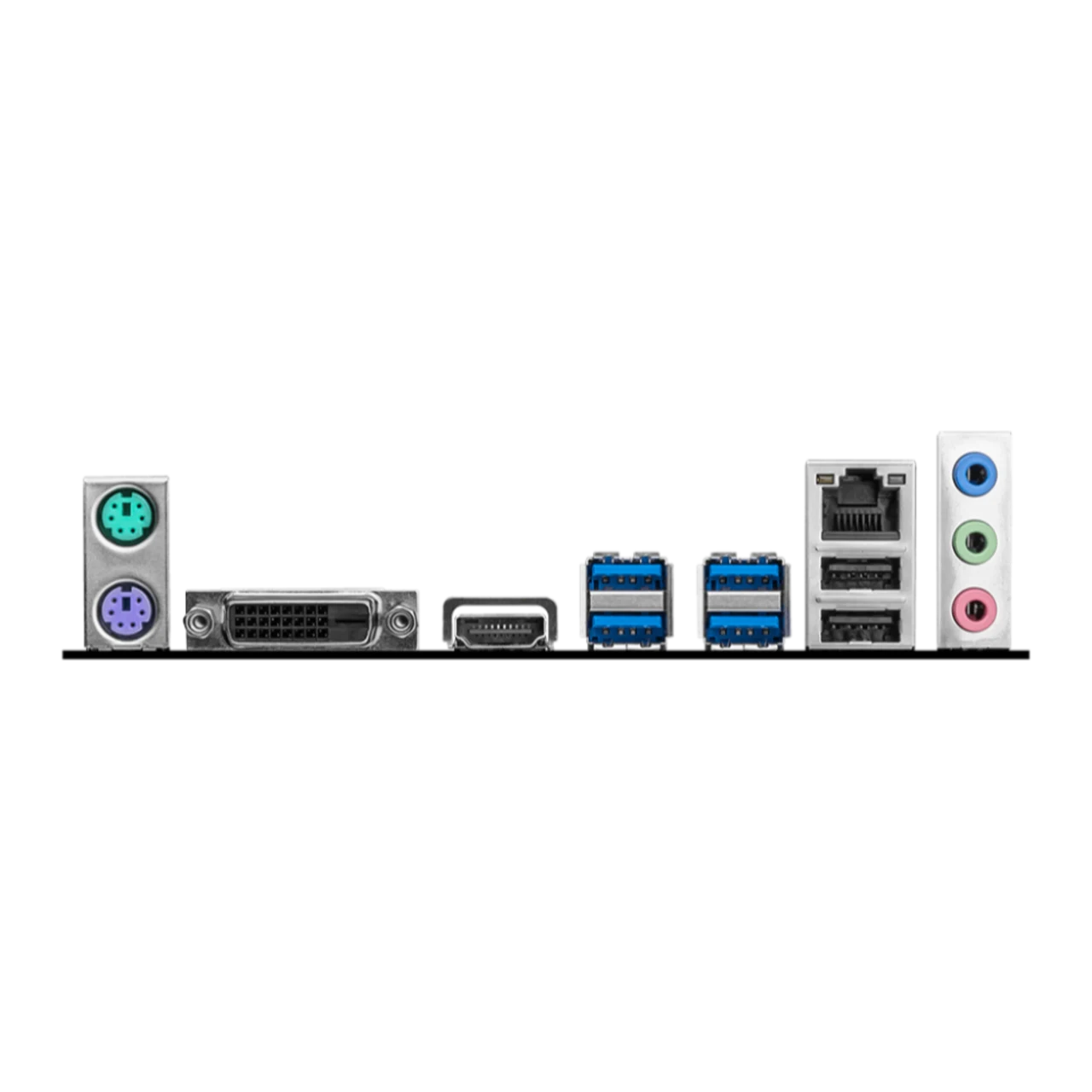

The MSI PRO B450M-A MAX II is a reliable and value-packed Micro-ATX motherboard based on the AMD B450 chipset, designed to support a wide range of AM4 socket processors including Ryzen 1000, 2000, 3000, 4000G, and 5000 series CPUs. Thanks to its updated BIOS and MAX branding, it ensures out-of-the-box compatibility with newer Ryzen processors, including the 5600 and 5700X, making it a great choice for budget-conscious builders. It supports up to 64GB of dual-channel DDR4 memory across two DIMM slots, with overclocking speeds up to 4133MHz via A-XMP profiles. The motherboard features a PCIe 3.0 x16 slot for discrete graphics cards and a PCIe 2.0 x1 slot for expansion cards, providing flexibility for additional devices. For storage, it includes one M.2 slot supporting NVMe or SATA SSDs and four SATA III ports with RAID 0, 1, and 10 support. It offers stable network performance via a Realtek Gigabit LAN controller and delivers 7.1-channel high-definition audio powered by the Realtek ALC897 codec. The rear I/O includes HDMI and DVI-D outputs for use with processors that have integrated Radeon graphics, along with USB 3.2 Gen1, USB 2.0, PS/2, LAN, and audio jacks. Other useful features include a 4+2 phase power delivery system with Core Boost, EZ Debug LED for easy troubleshooting, TPM 2.0 header for Windows 11 support, and fan headers with smart control. The compact design, solid PCB construction, and essential feature set make the MSI PRO B450M-A MAX II a dependable foundation for affordable gaming, office, or home systems built on the AM4 platform.
