Overview
B650M D3HP is a Micro-ATX AM5 motherboard with DDR5 support, dual M.2 slots, PCIe 4.0, 2.5GbE LAN, and USB-C—ideal for stable Ryzen builds without overclocking.
| nvme_slots | 2 |
|---|---|
| pcie_version | 4.0 |
| argb_headers | 2 |
| socket | AMD_AM5 |
| speed | 6400+ |
| wifi_version | Wi-Fi 6E |
| bluetooth_version | 5.3 |
| ram_type | DDR5 |
| wifi_bt | No |
| ram_slots | 4 |
| pcie_x16_slots | 1 |
| rgb_headers | 1 |
| sata_ports | 4 |
| form_factor | mATX |
Gigabyte B650M D3HP PRICEIN PAKISTAN

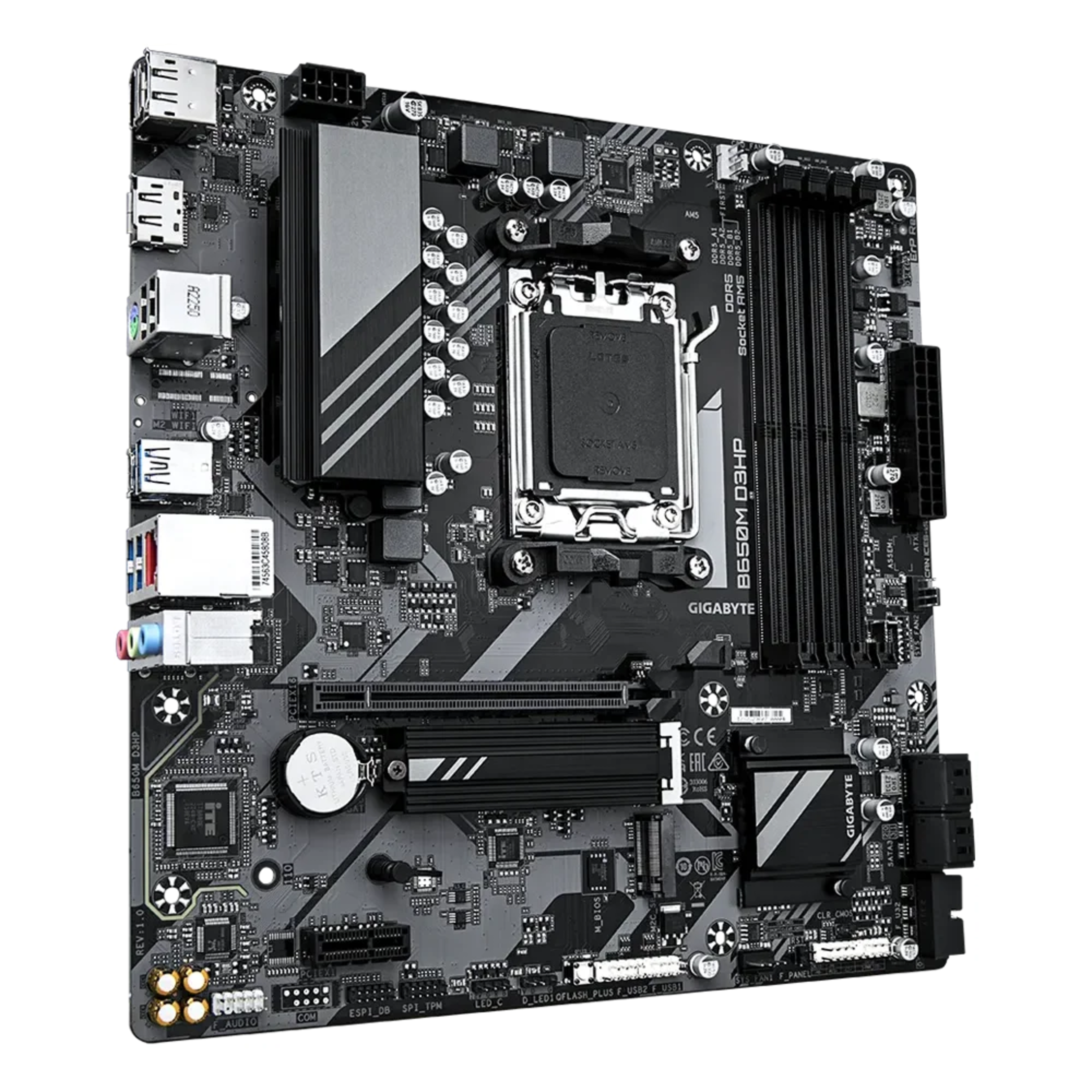

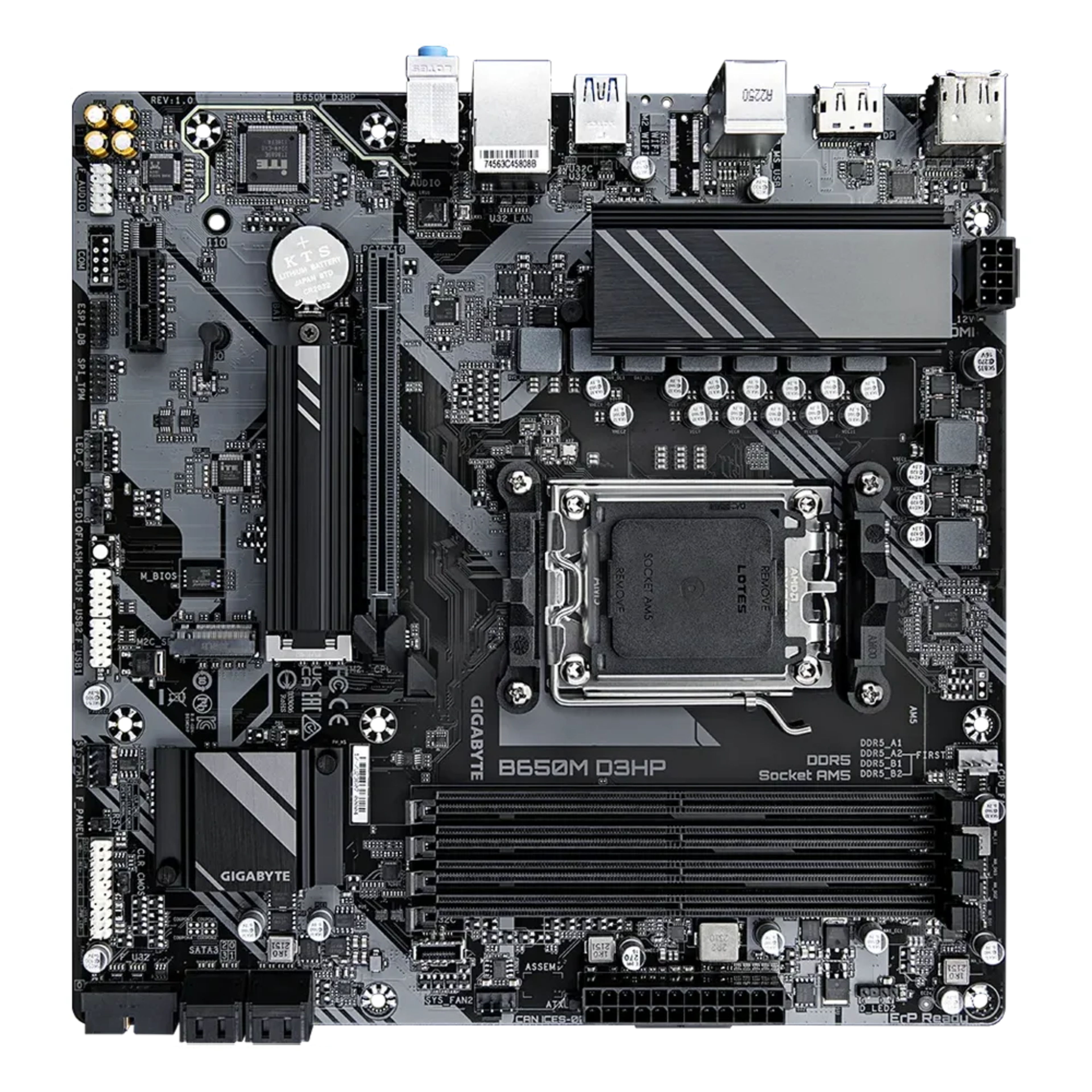

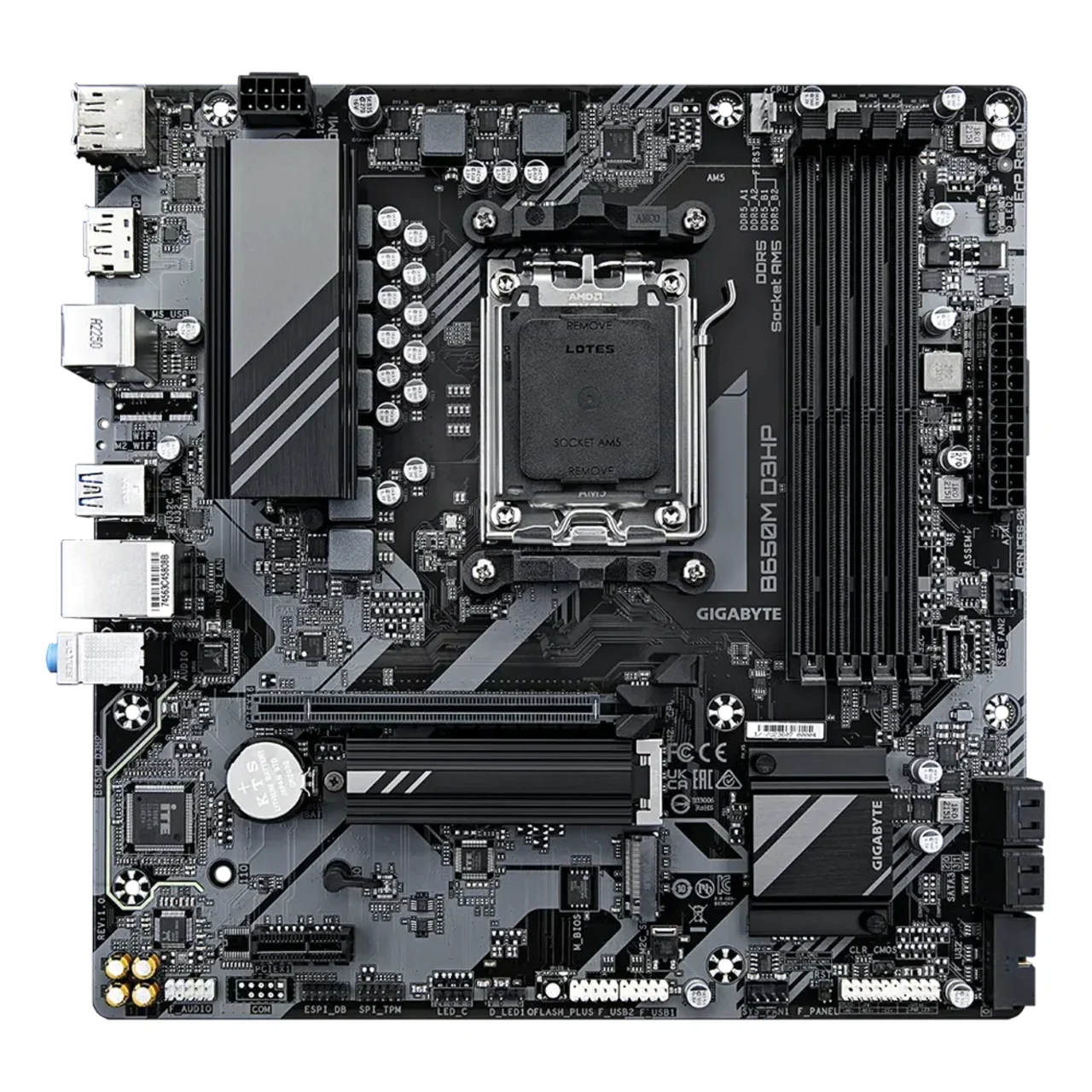

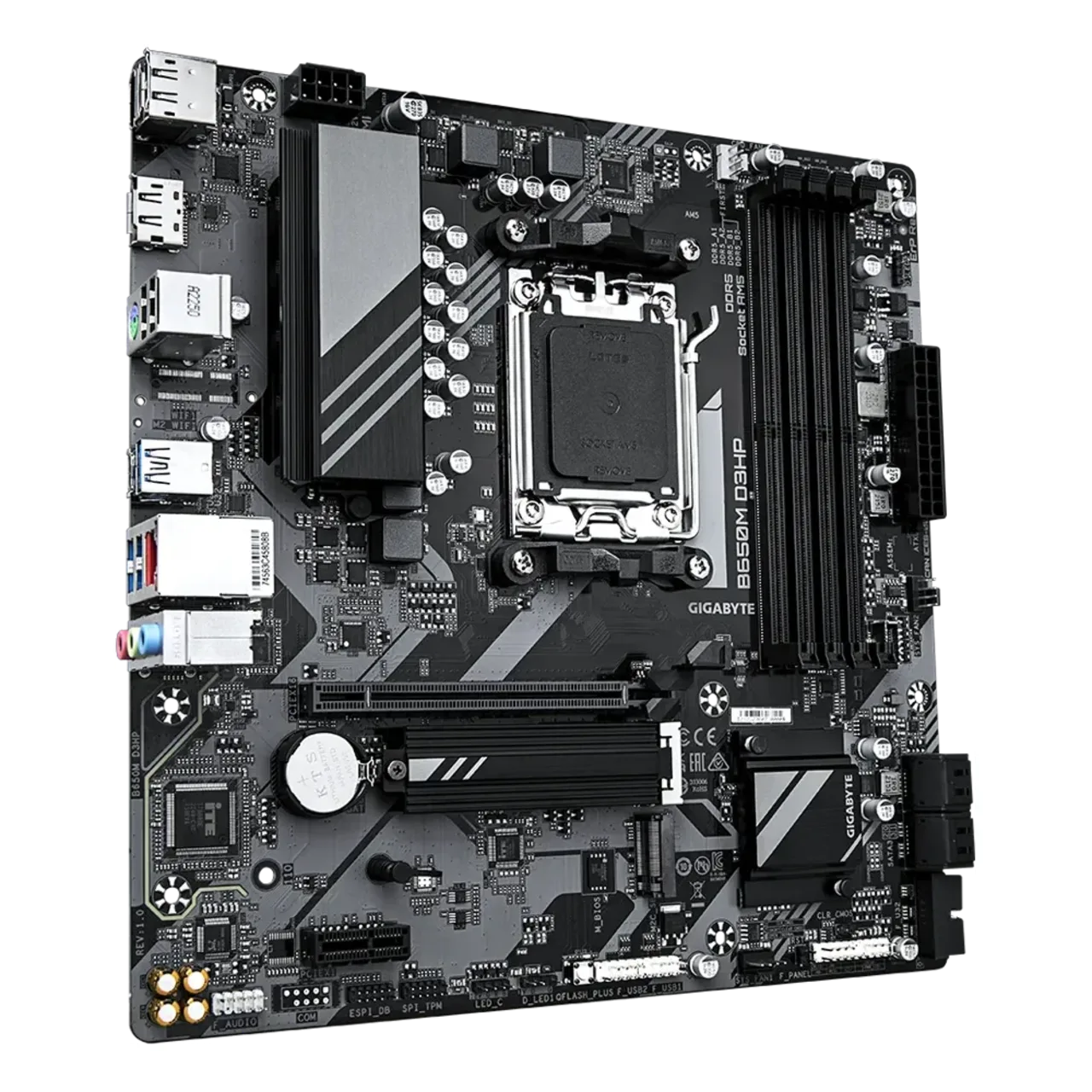

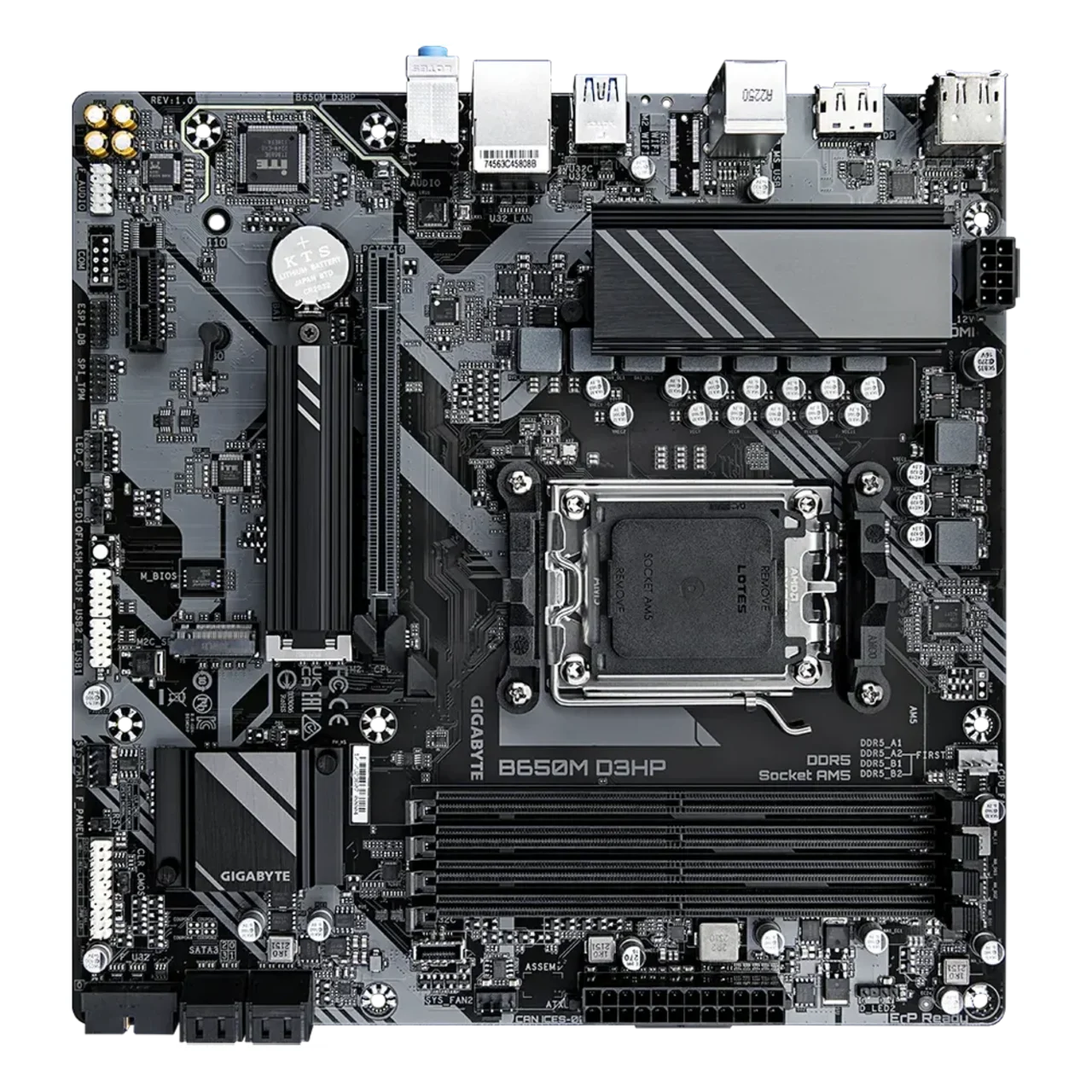

The Gigabyte B650M D3HP DDR5 is a highly capable Micro-ATX motherboard designed to offer next-generation performance and connectivity for AMD’s AM5 platform at an affordable price point. Tailored for users building compact yet powerful systems, this board supports AMD Ryzen 7000, 8000, and future 9000 series processors with cutting-edge DDR5 memory, PCIe 4.0 support, and robust connectivity — all packed into a durable, efficient design that ensures reliable day-to-day computing, gaming, and productivity.
At its core, the B650M D3HP features the AMD B650 chipset and supports the latest AMD Ryzen processors with up to 16 cores and high boost frequencies. Built with a 5+2+2 phase digital VRM power design, it ensures clean and stable power delivery to the CPU, SOC, and memory, making it suitable for mainstream gaming builds or productivity setups that require consistent performance. Its Micro-ATX form factor (244×244 mm) makes it an excellent fit for smaller cases without compromising on features.
This motherboard supports up to 192GB of DDR5 memory across four DIMM slots, with overclocking capabilities reaching speeds up to 7600+ MHz (OC). Whether you're a gamer or a content creator, the B650M D3HP enables high-speed multitasking and responsiveness. The board is fully compatible with both AMD EXPO and Intel XMP memory profiles, giving users flexibility when choosing memory kits.
When it comes to storage, the board offers two high-speed M.2 slots (M2A_CPU and M2C_SB), both supporting PCIe 4.0 x4 NVMe SSDs, allowing for ultra-fast boot drives and application load times. Additionally, four SATA 6Gb/s ports support traditional hard drives and SSDs with RAID 0/1/10 functionality for better performance or data redundancy. This combination offers a versatile storage setup suitable for gamers, streamers, and professionals alike.
Expansion is also well-covered with one PCIe 4.0 x16 slot, perfect for modern graphics cards, and one PCIe 3.0 x1 slot for additional peripherals like sound cards, capture cards, or network adapters. For display output, the board includes HDMI 2.1, two DisplayPort 1.4 ports, and legacy VGA (D-Sub) — allowing support for multi-monitor setups using Ryzen’s integrated Radeon graphics.

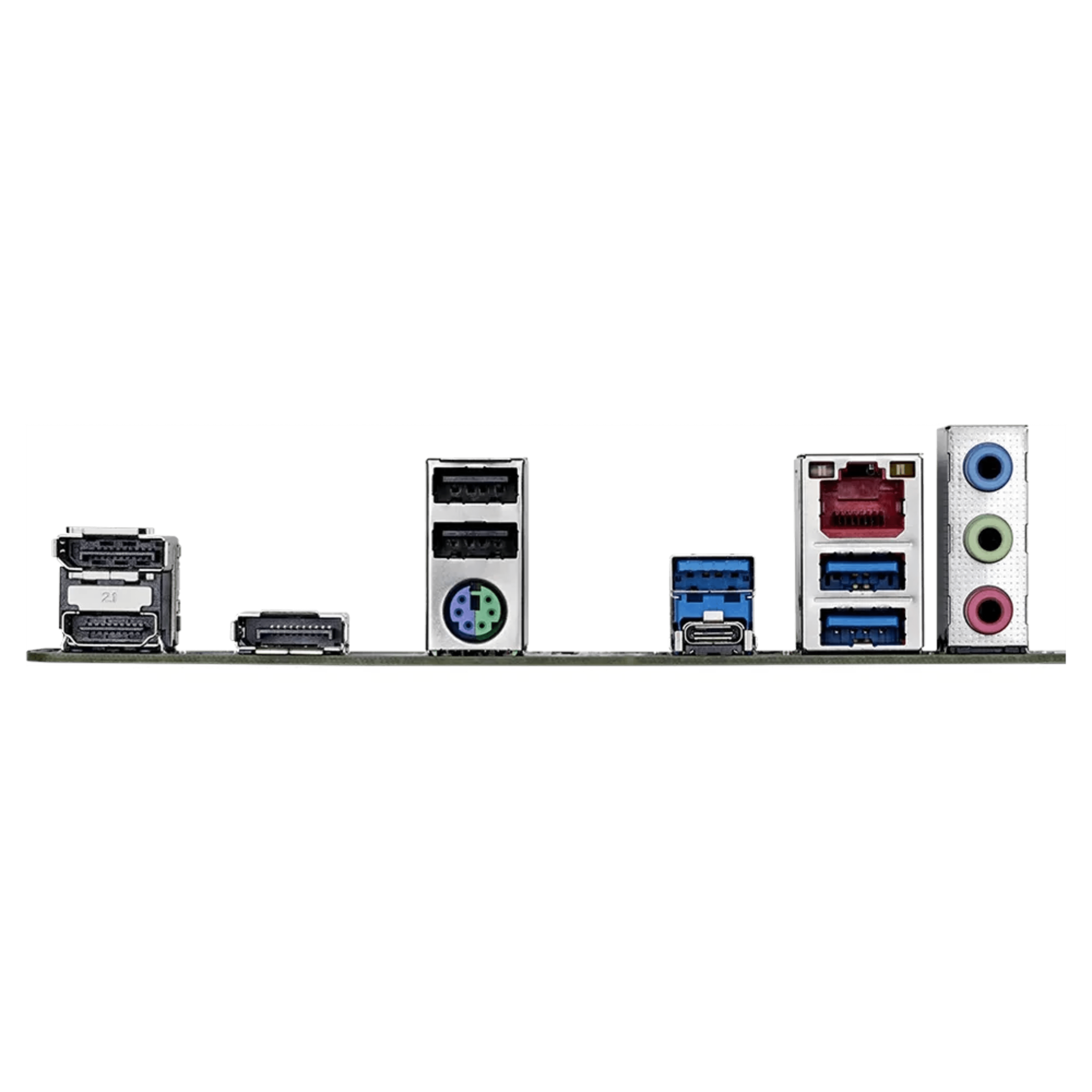

Connectivity on the rear I/O includes multiple high-speed USB ports, such as USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1 Type-A, and USB 2.0, ensuring broad compatibility for peripherals, storage devices, and more. Internal headers expand USB options further with support for front-panel USB-C and USB 3.0 ports. For networking, the board is equipped with a Realtek 2.5 Gigabit LAN controller, offering high-speed, low-latency connectivity ideal for gaming and media streaming.
Audio is delivered through the Realtek 7.1-channel HD audio codec (ALC897), offering crisp and immersive sound, with the addition of an S/PDIF output for connecting to external receivers and audio systems. The board also features ARGB and 12V RGB headers, enabling lighting control and synchronization with compatible RGB components through GIGABYTE RGB Fusion software.
Thermal management is handled with Smart Fan 6, providing temperature sensors and hybrid fan headers that allow precise control over fan speed and noise levels. This ensures your system runs cool and quiet, even under heavy load. Another standout feature is Q-Flash Plus, allowing BIOS updates without the need to install a CPU, memory, or GPU — a major convenience for users updating to newer processors.
The Gigabyte B650M D3HP is designed with durability and efficiency in mind, using high-quality components, solid capacitors, and a reinforced PCIe slot to provide long-term reliability. It also includes multiple internal headers for TPM modules, front audio, USB, and even Thunderbolt add-on support, giving it a good level of future-proofing for evolving hardware needs.
