PRO B650M-A is designed with tons of flexible tools with DDR5 memory version.
MSI PRO B650M-A WIFI PRICE IN PAKISTAN

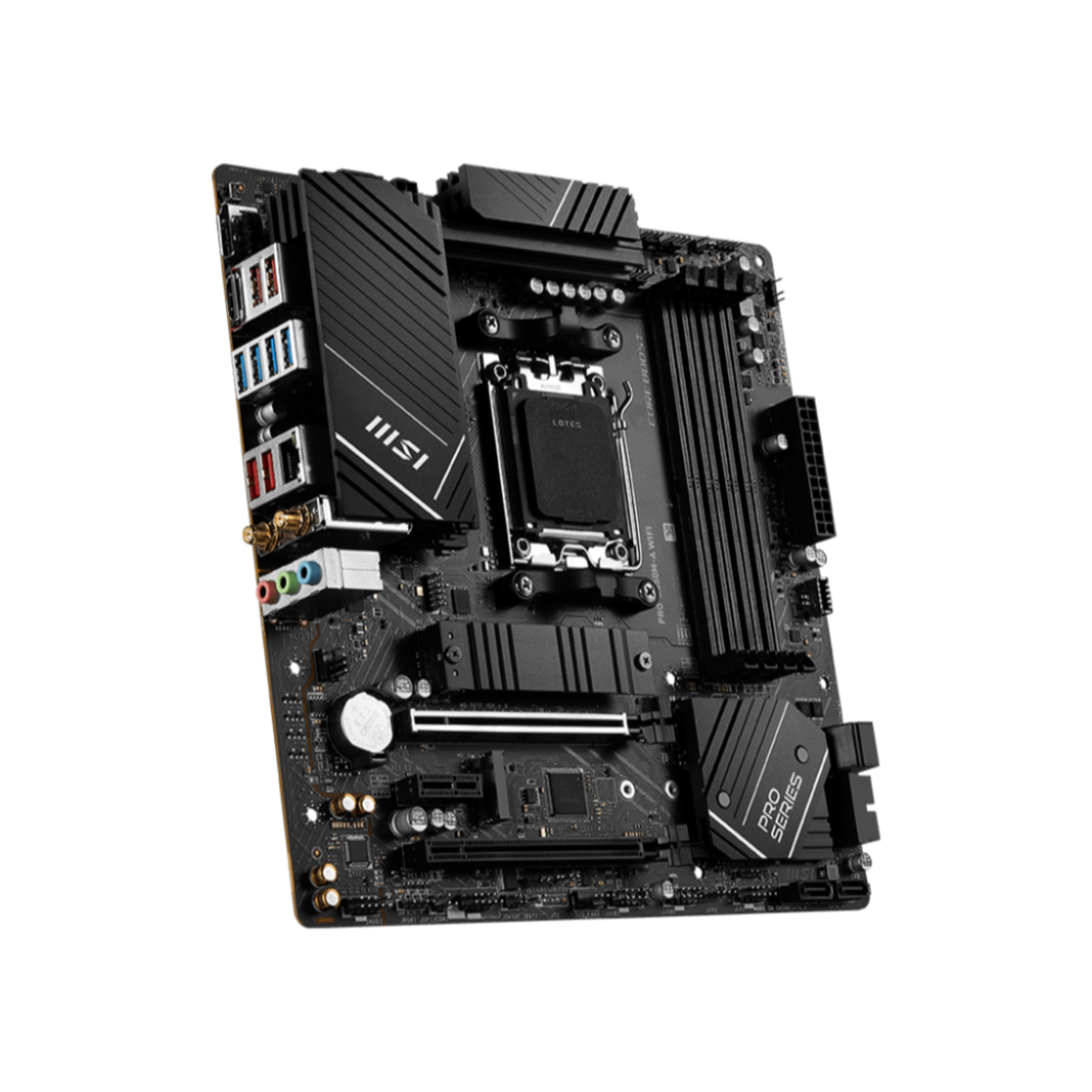

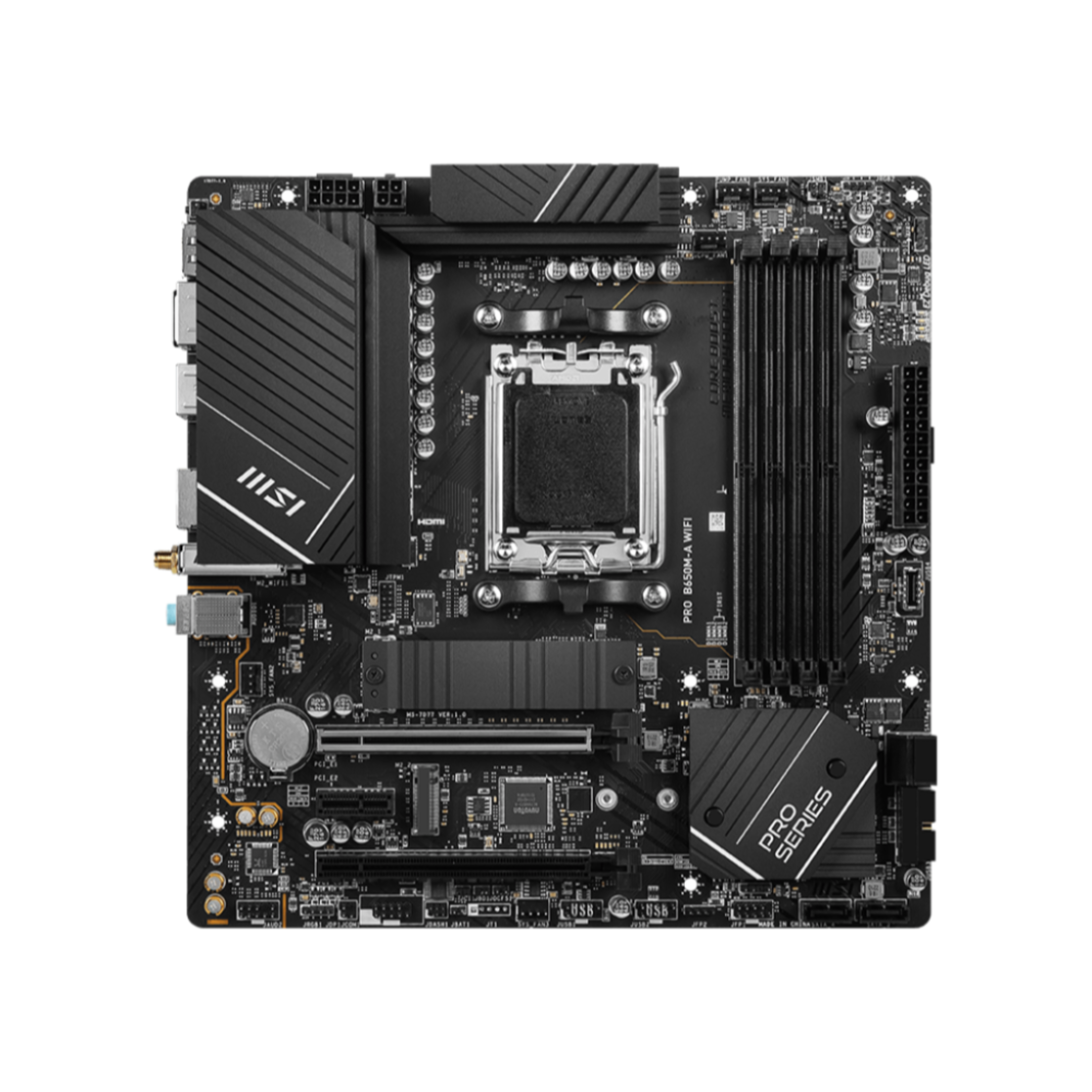

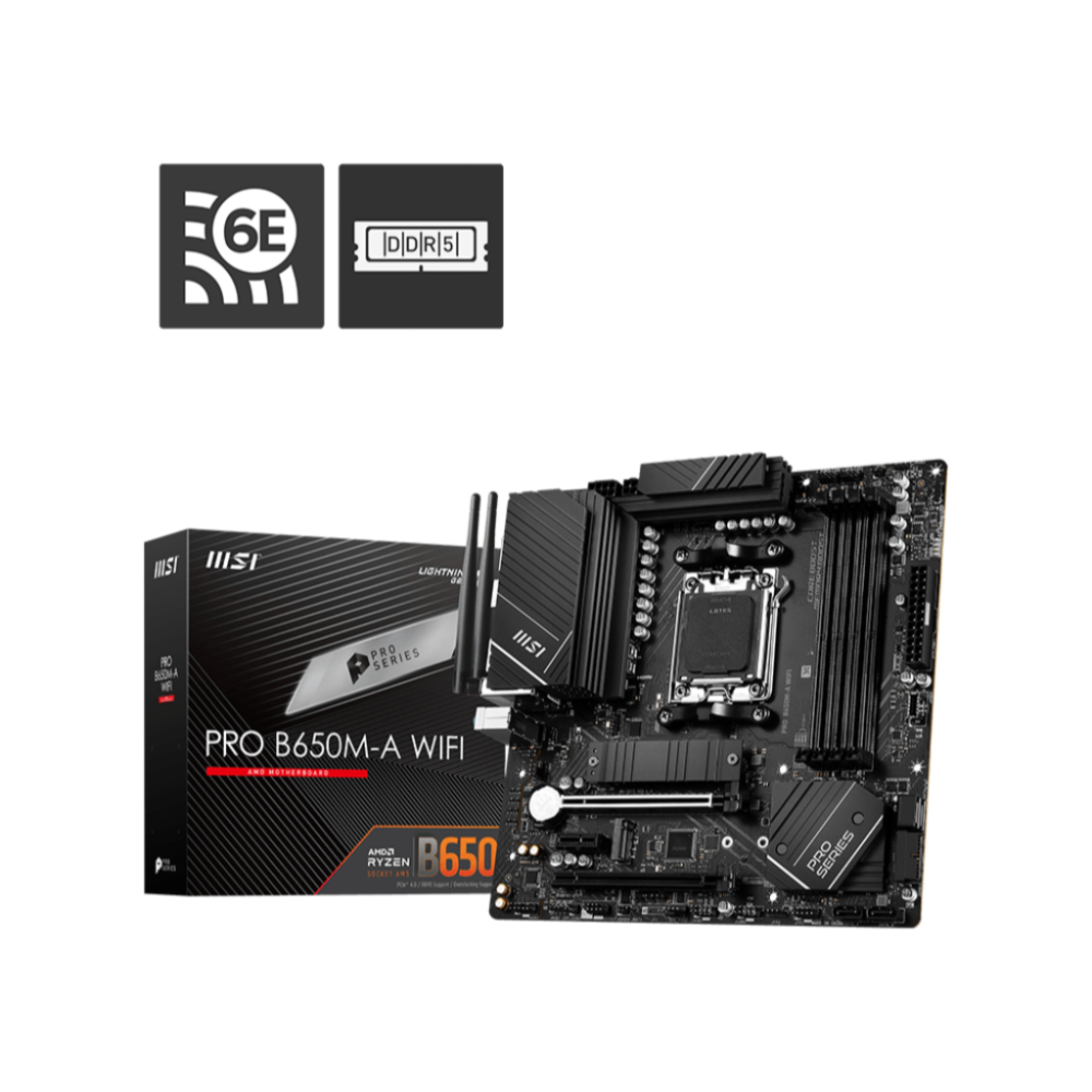

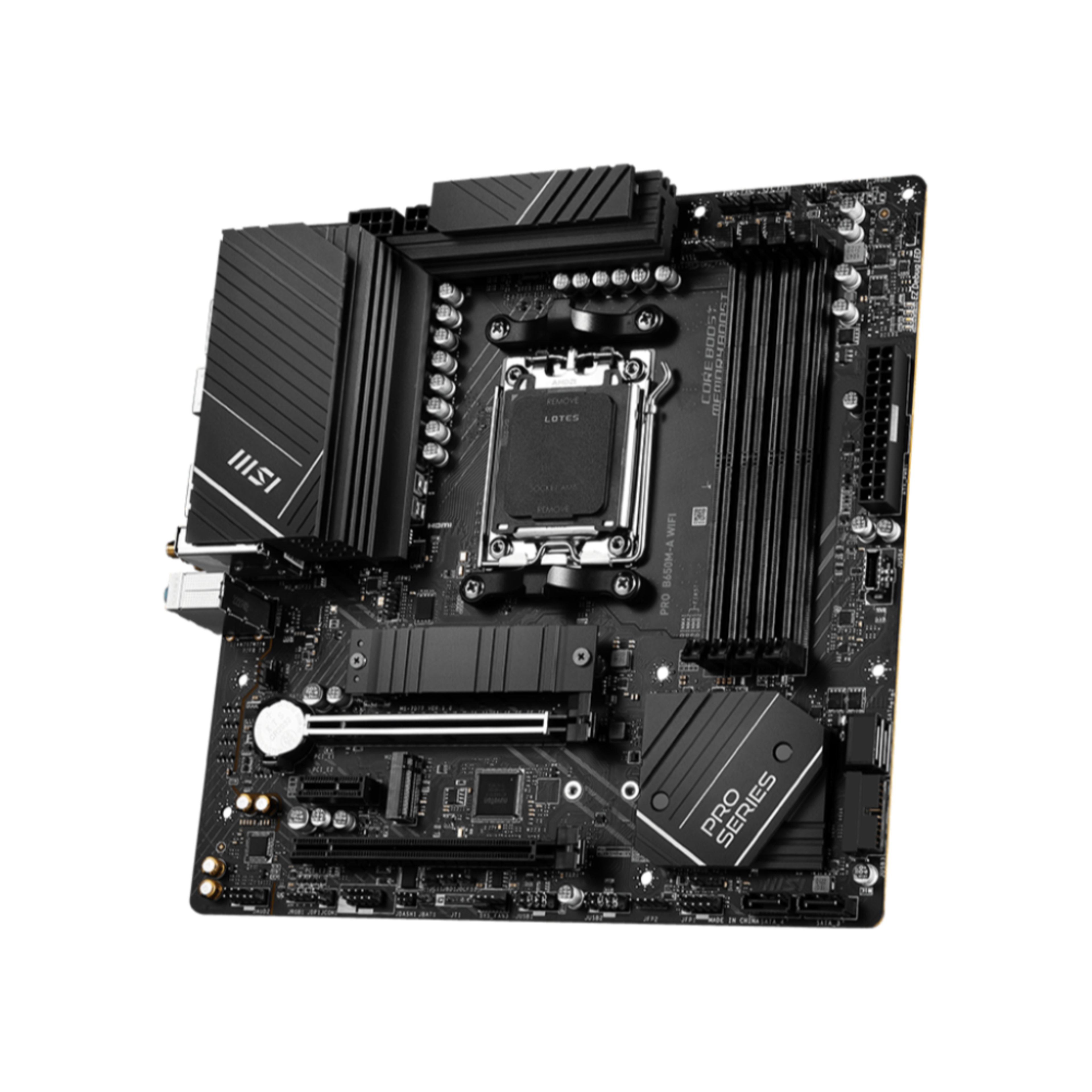

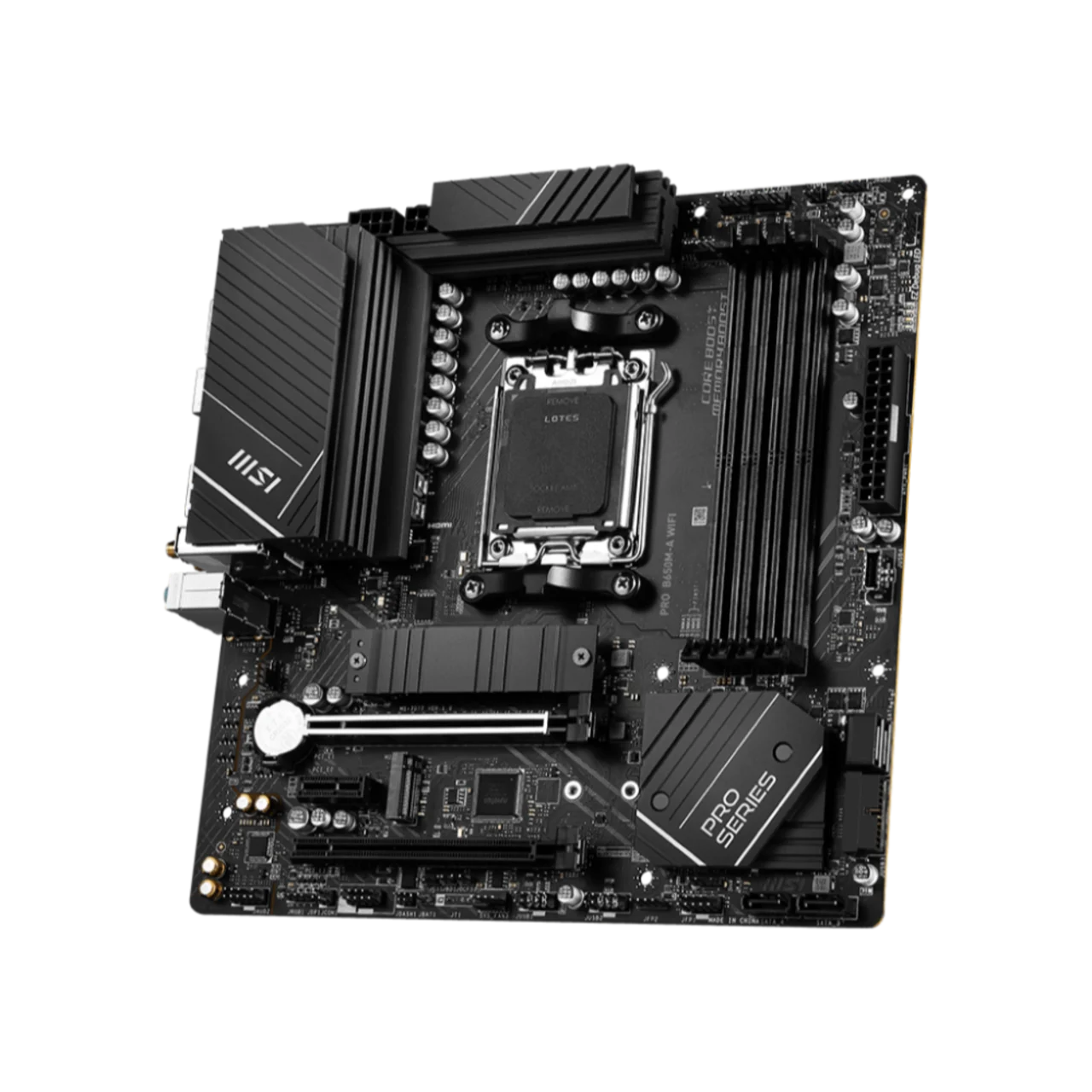

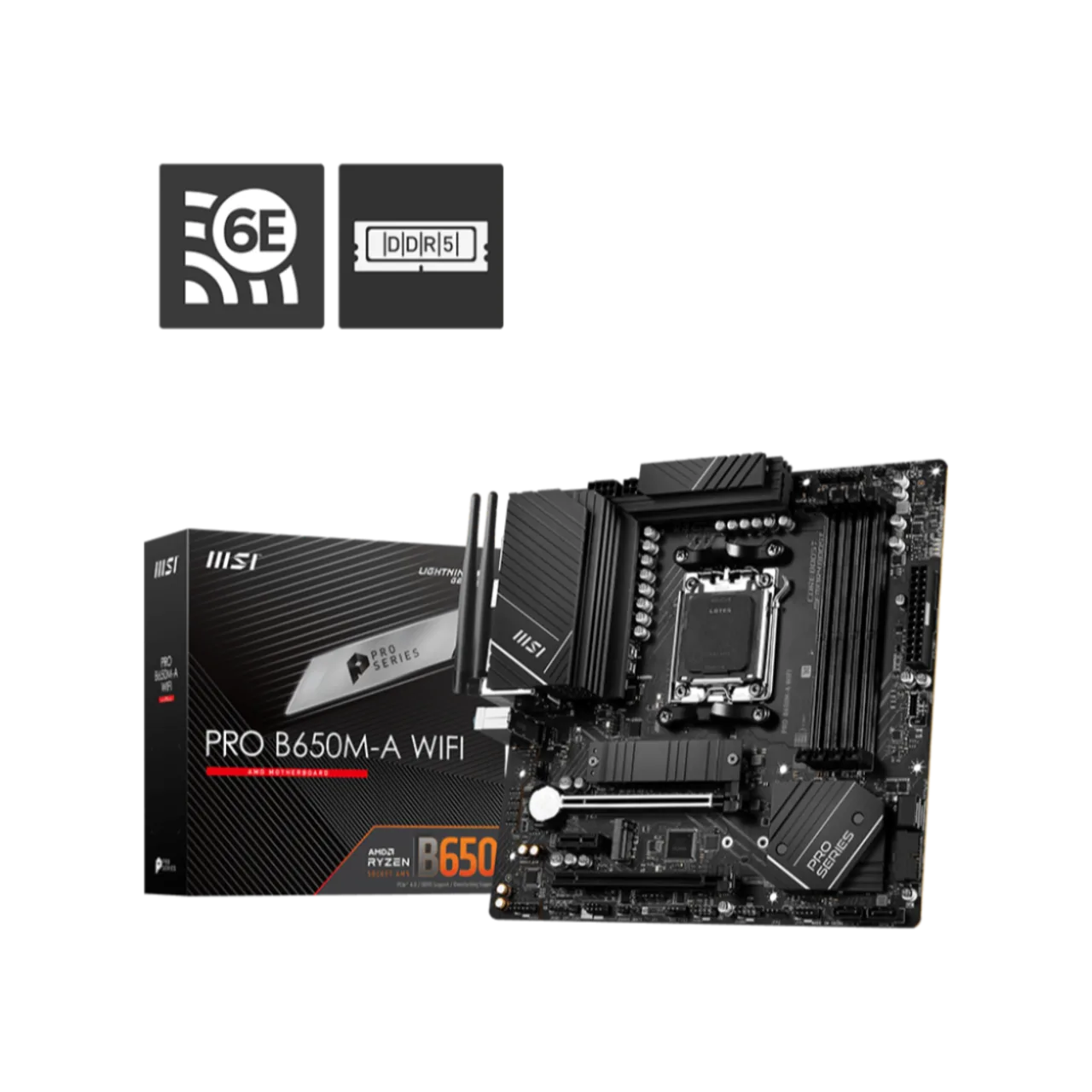

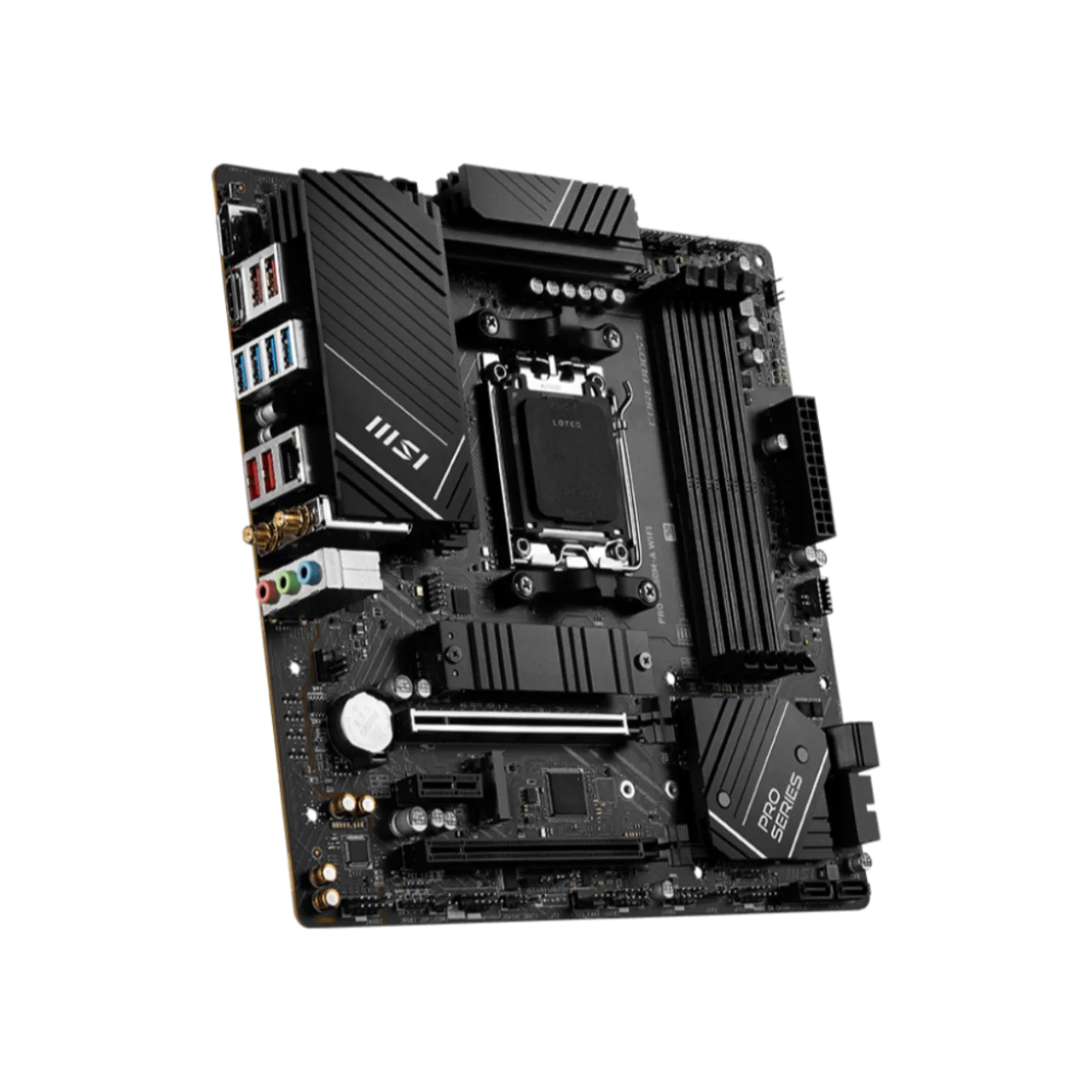

The MSI PRO B650M-A WIFI is a Micro-ATX motherboard designed to support AMD Ryzen™ 7000, 8000, and 9000 Series Desktop Processors using the AM5 socket. Built on the AMD B650 chipset, it offers robust features suitable for both professional and enthusiast users.
This motherboard supports DDR5 memory, accommodating up to 128GB across four DIMM slots, with overclocking capabilities reaching up to 6400 MHz. Its enhanced power design includes an 8+2+1 Duet Rail Power System with 55A DrMOS and dual 8-pin CPU power connectors, ensuring stable power delivery for high-performance CPUs.
For expansion, the PRO B650M-A WIFI provides a PCIe 4.0 x16 slot for graphics cards, a PCIe 4.0 x16 slot (operating at x4), and a PCIe 3.0 x1 slot for additional peripherals. Storage options are ample, with two M.2 slots supporting PCIe 4.0 x4 NVMe SSDs and four SATA III ports, accommodating various storage configurations.

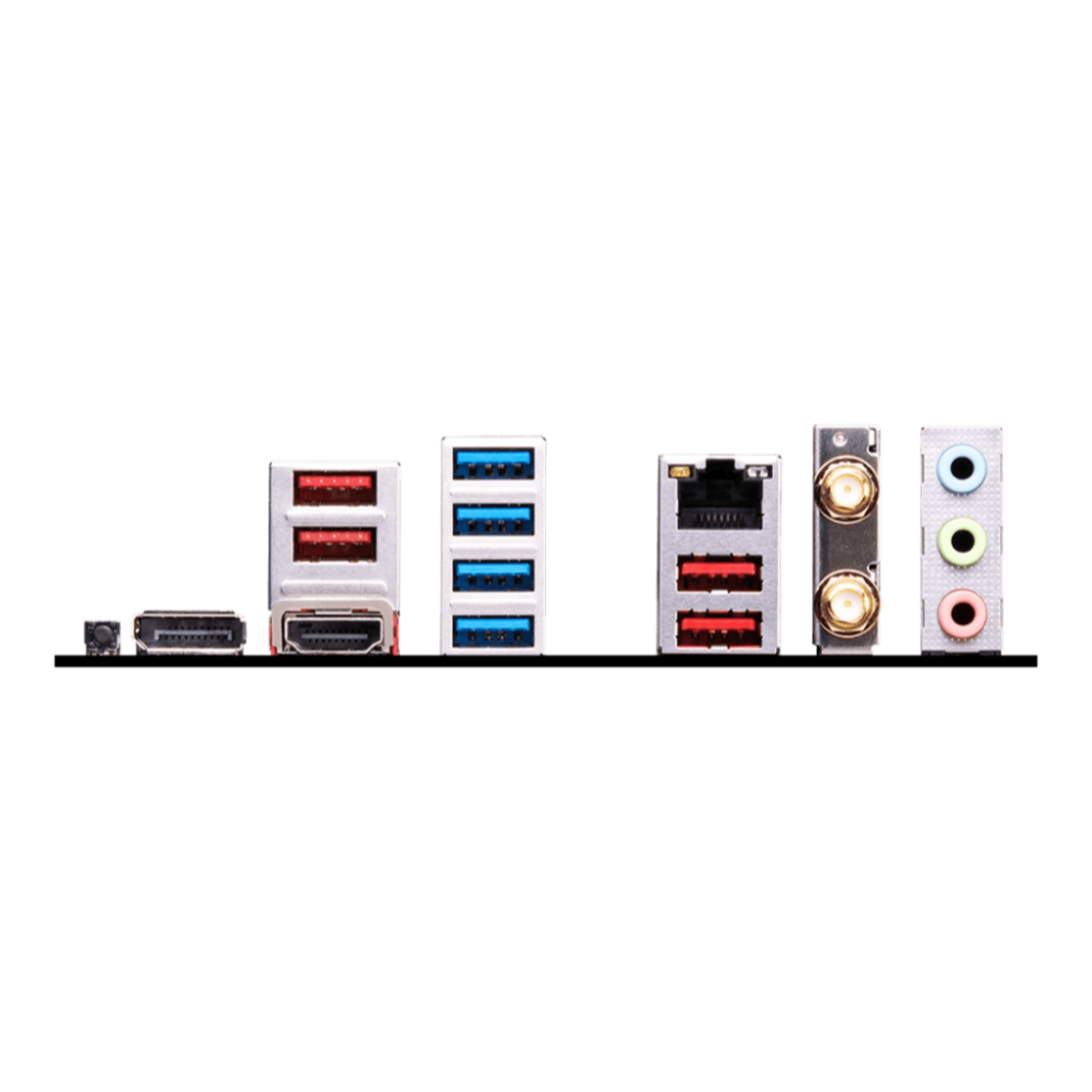

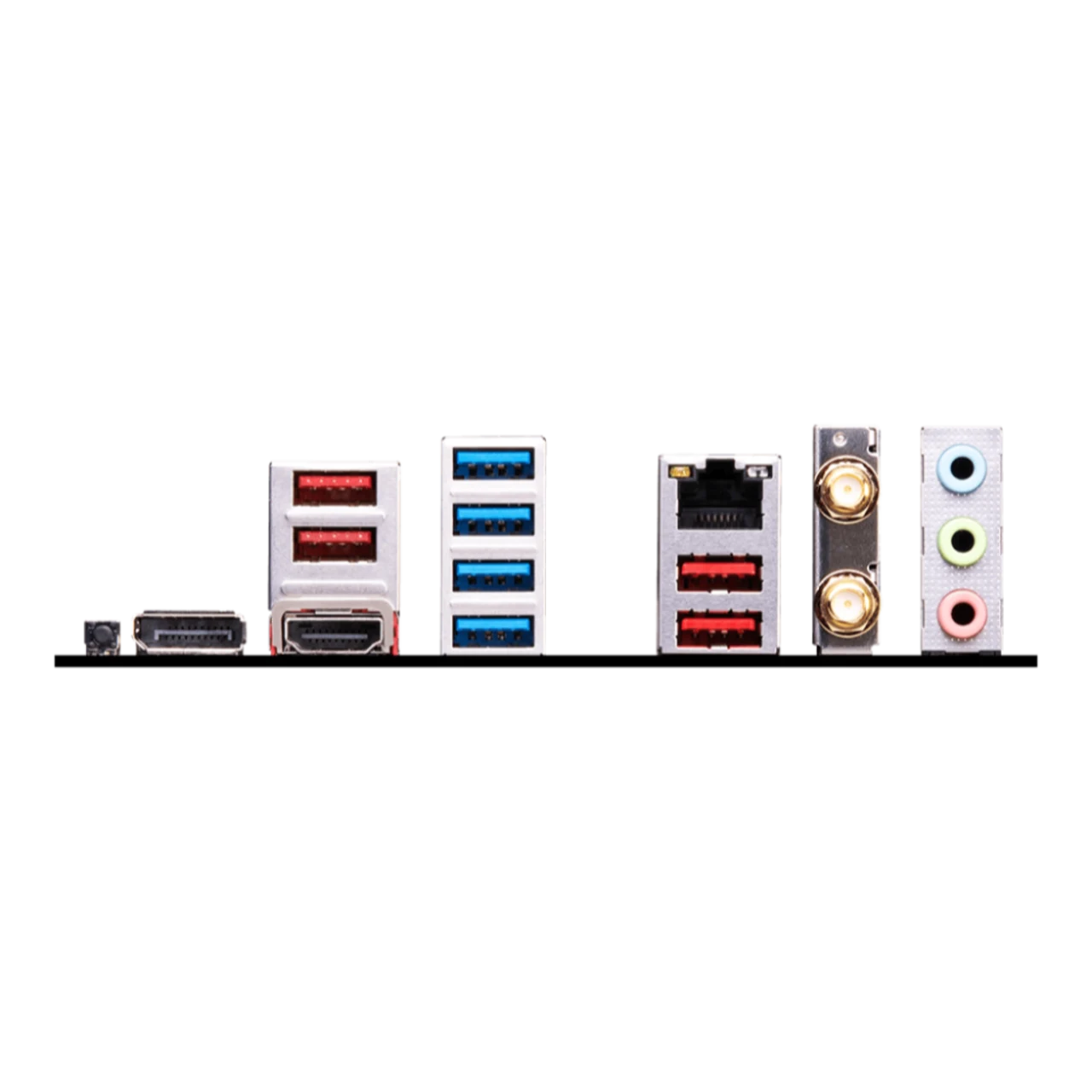

Connectivity features include a 2.5Gbps LAN port and integrated Wi-Fi 6E with Bluetooth 5.2, ensuring high-speed wired and wireless networking. The rear I/O panel includes multiple USB ports: USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-A, and USB 2.0 ports. Display outputs consist of HDMI 2.1 and DisplayPort 1.4, supporting resolutions up to 8K at 60Hz, catering to users utilizing integrated graphics.
Constructed with a six-layer PCB using 2oz thickened copper, the PRO B650M-A WIFI ensures durability and efficient heat dissipation. Additional features like M.2 Shield Frozr provide thermal protection for SSDs, maintaining optimal performance. The motherboard also includes MSI's Core Boost and Memory Boost technologies for efficient power delivery and enhanced memory performance.
In summary, the MSI PRO B650M-A WIFI combines advanced features and robust build quality, making it an excellent choice for building a high-performance PC system.
