Overview
The MSI B760M BOMBER WIFI is a micro-ATX motherboard designed for Intel 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron processors using the LGA 1700 socket. It supports dual-channel DDR5 memory up to 6400 MHz (OC) across two DIMM slots. For storage, it offers a high-speed PCIe 4.0 x4 M.2 slot with a built-in M.2 Shield Frozr and four SATA 6Gb/s ports. The board includes 2.5G LAN and integrated Intel Wi‑Fi 6E with Bluetooth 5.3 for fast and reliable networking. Expansion slots include one PCIe 4.0 x16 slot with Steel Armor and one PCIe x1 slot. The rear I/O provides HDMI, DisplayPort, USB 3.2 Gen 1 and Gen 2 ports, and high-definition 7.1-channel audio. Additional features like Core Boost, Memory Boost, Audio Boost, and EZ Debug LEDs ensure stable performance and ease of setup, making it a strong choice for gaming and productivity-focused PC builds.

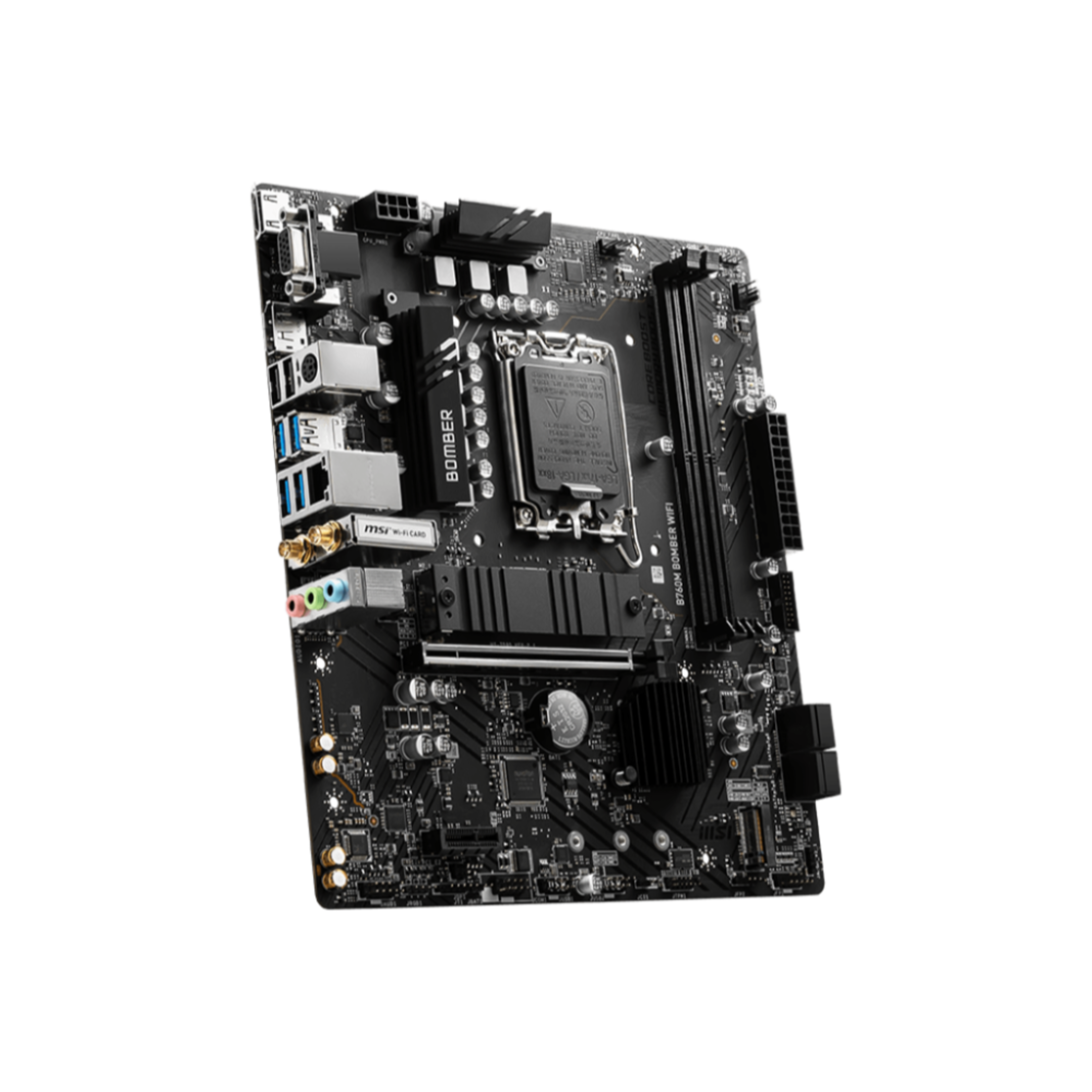

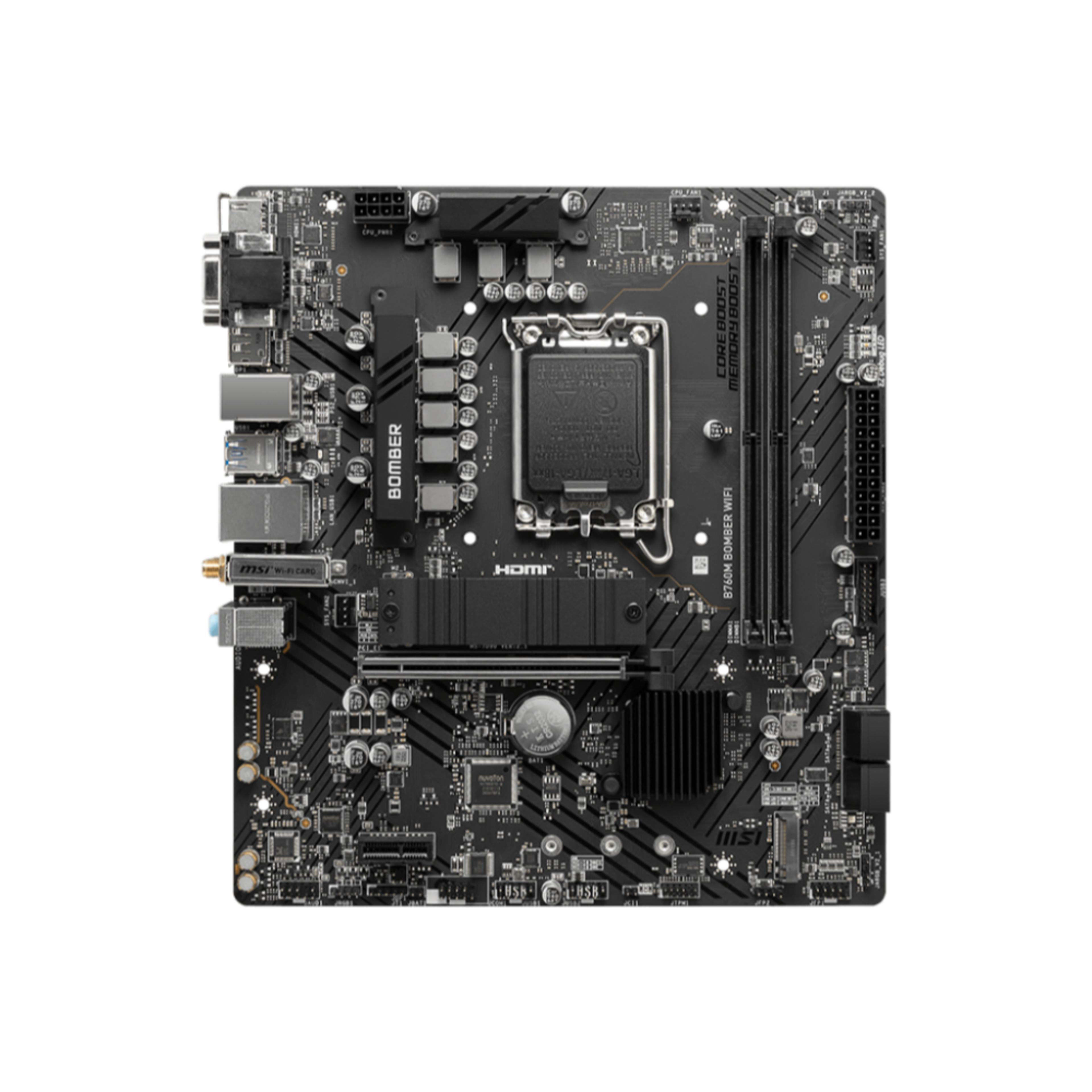

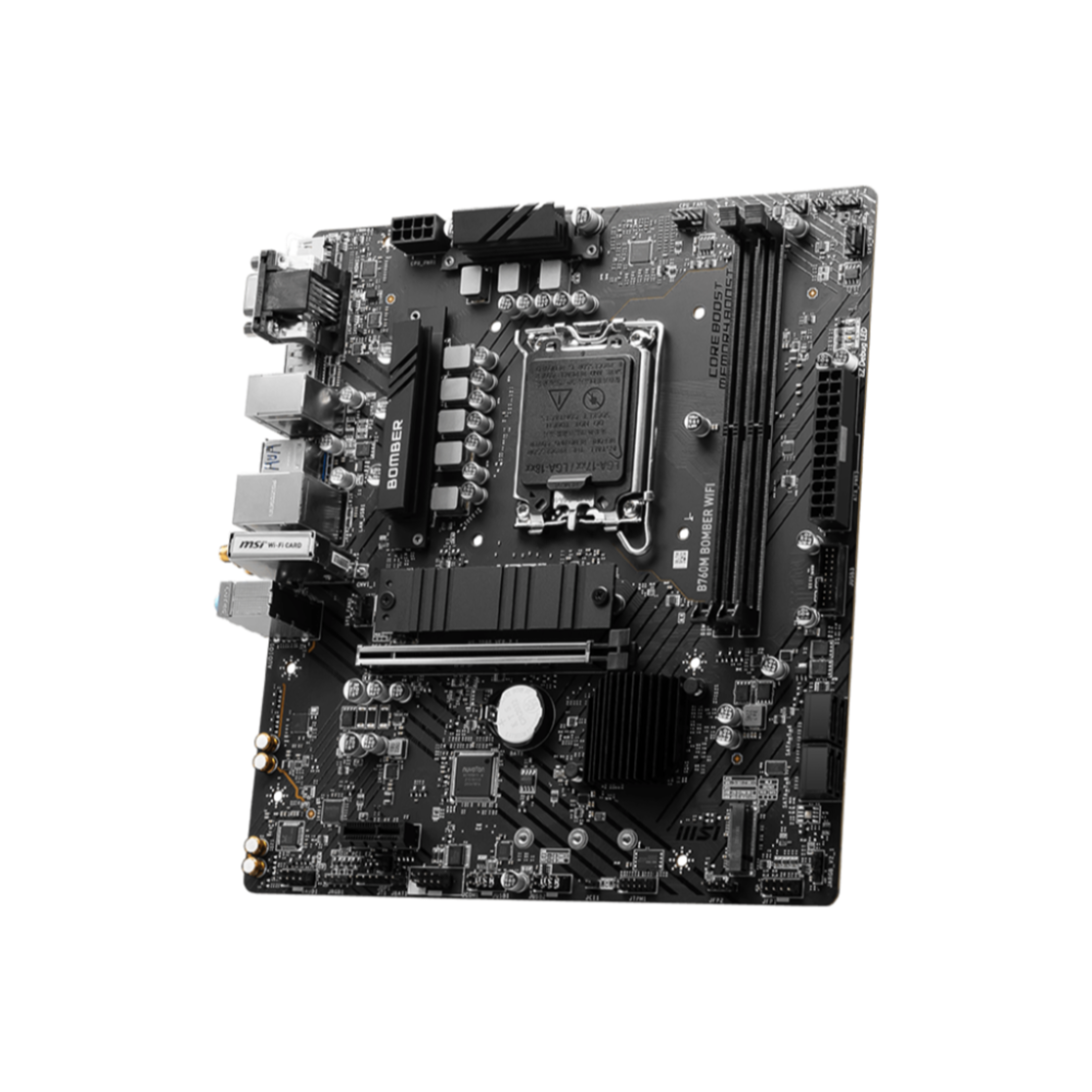

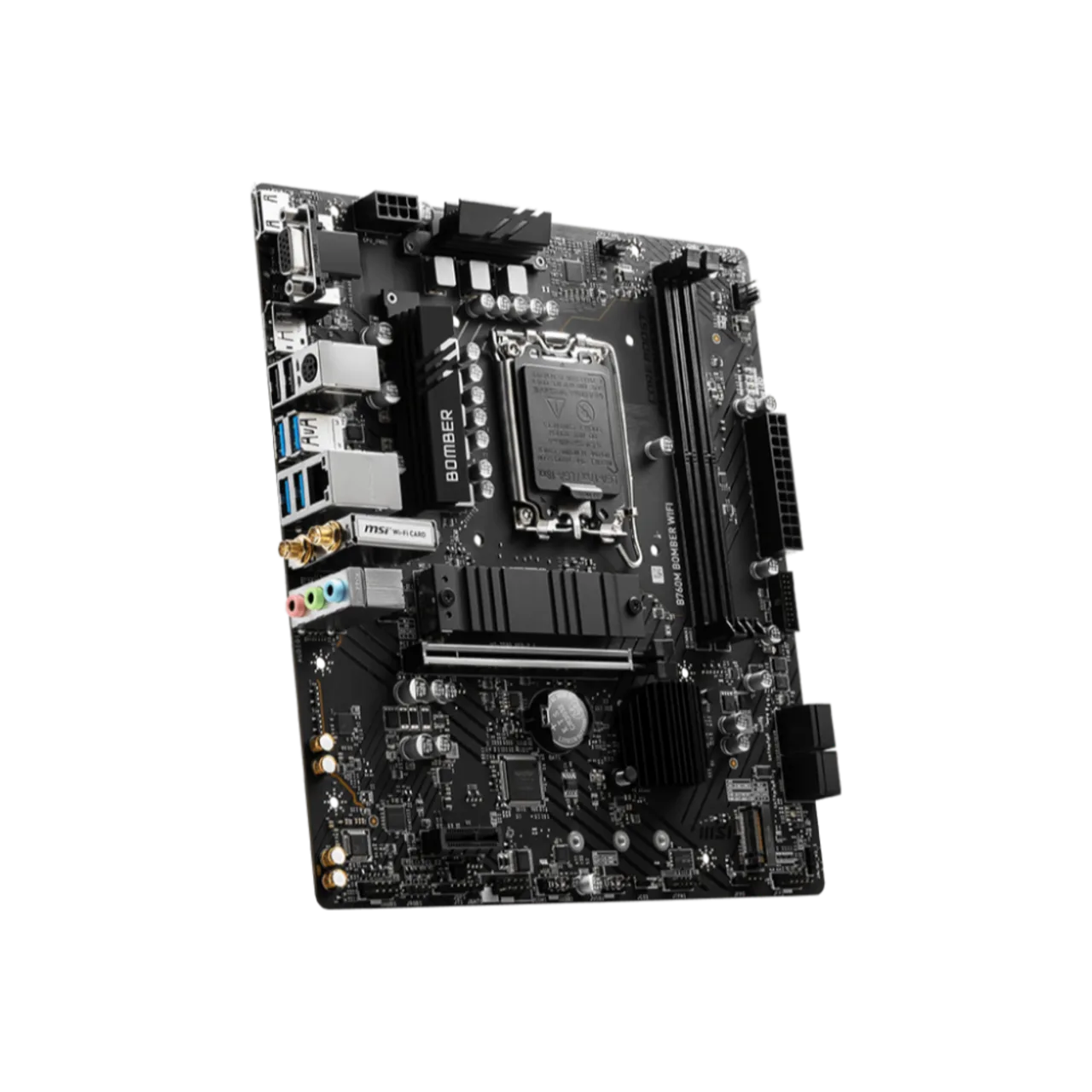

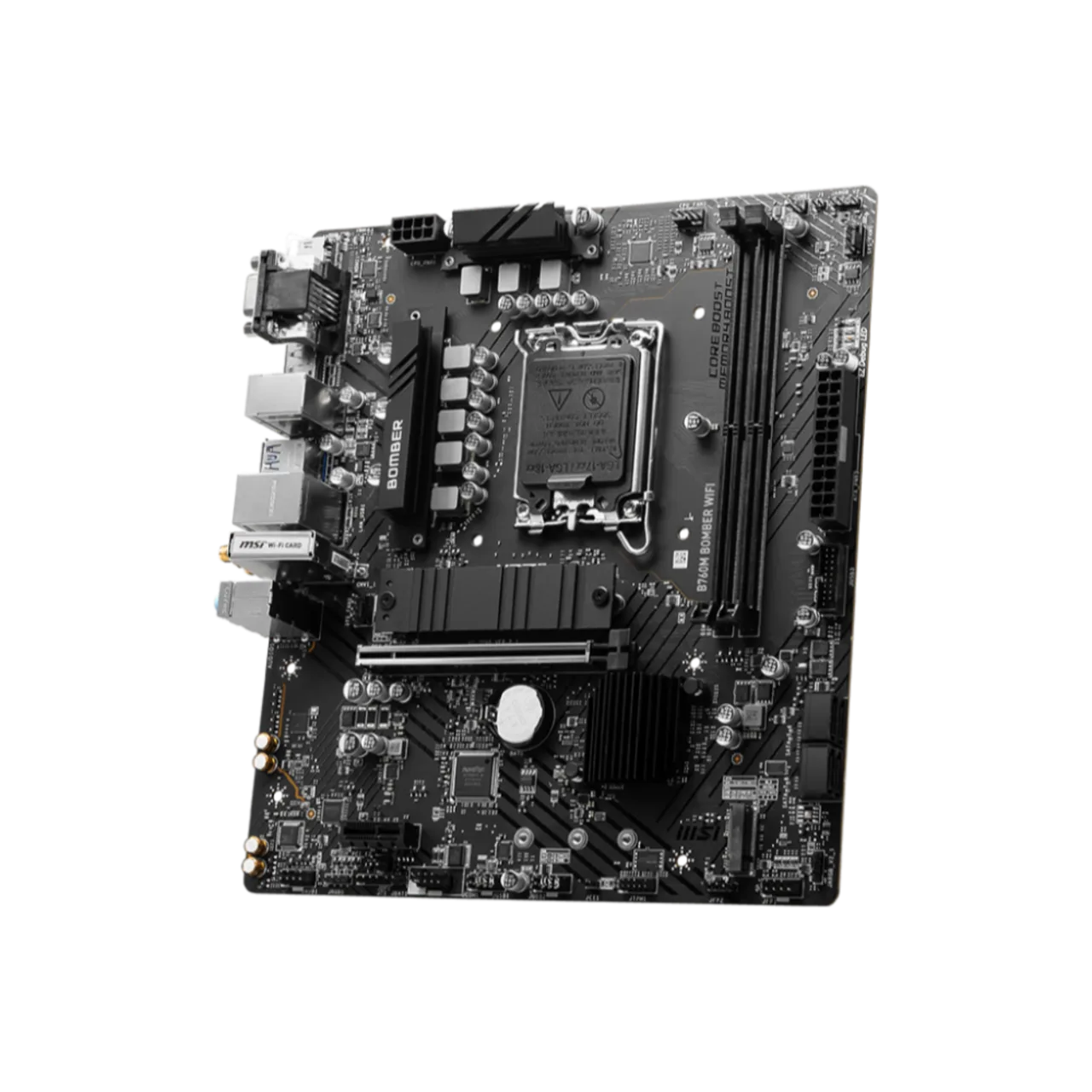

MSI B760M BOMBER WIFI
The MSI B760M BOMBER WIFI is a micro-ATX motherboard designed for users building a powerful yet compact Intel-based system. It supports 12th, 13th, and 14th generation Intel Core, Pentium Gold, and Celeron processors using the LGA 1700 socket, and is built around the Intel B760 chipset. The board features MSI's Core Boost and Memory Boost technologies, providing reliable power delivery and stable performance for multitasking, gaming, or content creation.
It supports dual-channel DDR5 memory with two DIMM slots, allowing for a maximum of 128 GB and speeds up to 6400+ MHz (OC), depending on the CPU. For storage, the motherboard includes two M.2 slots—one CPU-linked PCIe 4.0 x4 slot with a heatsink, and one chipset-based slot supporting PCIe 4.0 x4 or SATA drives. In addition, there are four SATA 6 Gbps ports with RAID 0, 1, 5, and 10 support.
Expansion capabilities include one PCIe 4.0 x16 slot for a graphics card and one PCIe 4.0 x1 slot for additional add-in cards. Display output options include HDMI 2.1, DisplayPort 1.4, and VGA, supporting a wide range of monitors from modern to legacy.

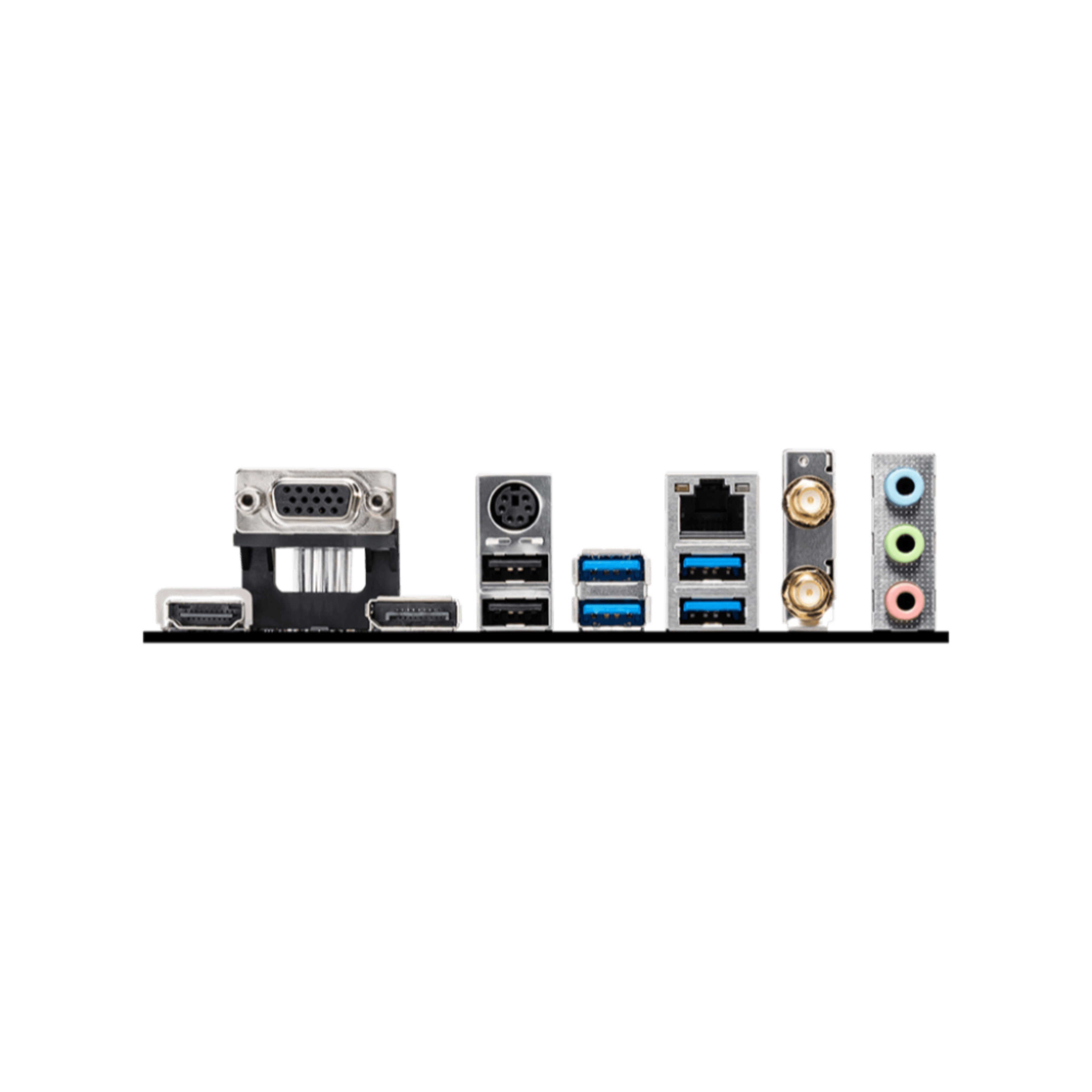

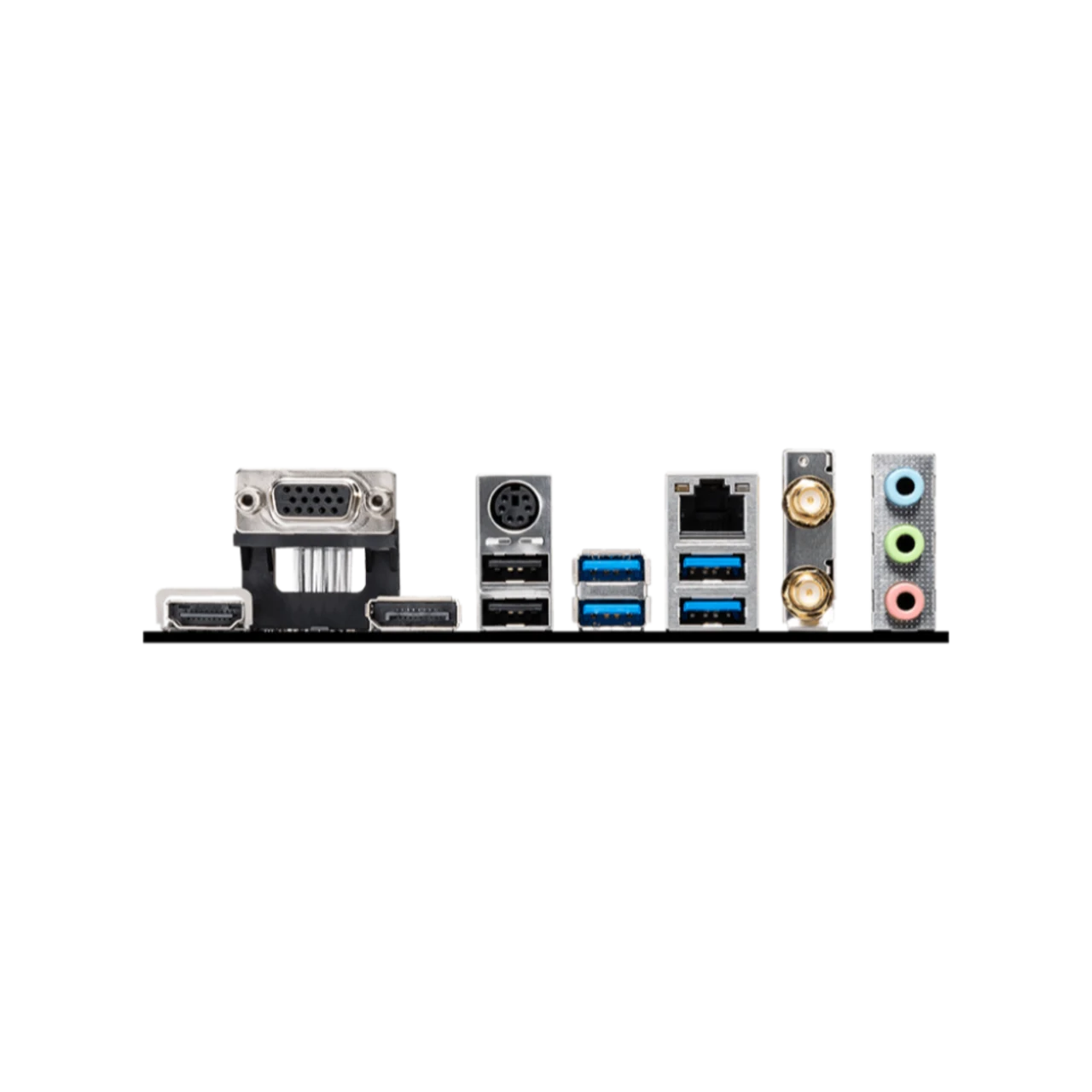

Networking is a strong point, with 2.5G LAN powered by Realtek RTL8125B and onboard Intel Wi-Fi 6E with Bluetooth 5.3, offering fast, low-latency connectivity for gaming, streaming, or productivity. Rear I/O ports include two USB 3.2 Gen 1 ports, four USB 2.0 ports, Gigabit LAN, HDMI, DP, VGA, PS/2 combo port, and audio jacks powered by Realtek ALC897 for 7.1-channel HD sound.
Additional features include integrated I/O shielding for easier installation, EZ Debug LEDs for troubleshooting, TPM and RGB headers, and solid durability with reinforced slots and circuit protections. The MSI B760M BOMBER WIFI strikes a great balance between performance, connectivity, and value—making it ideal for users looking to build a compact, modern Intel system with DDR5, PCIe 4.0, and Wi-Fi 6E support.
