Overview
MSI PRO A620M‑B is a micro‑ATX motherboard for AMD AM5 (Ryzen 7000/8000/9000) CPUs. It supports DDR5 memory (up to 6800 MHz OC, 2× slots, 128 GB), PCIe 4.0 x16 for graphics, a PCIe 4.0 M.2 slot plus four SATA ports, and Realtek 2.5 GbE LAN. Display outputs include HDMI 2.1 and VGA, and it features Core Boost power delivery, Frozr AI cooling, USB 3.2 Gen 1 ports, TPM support, and diagnostic LEDs.

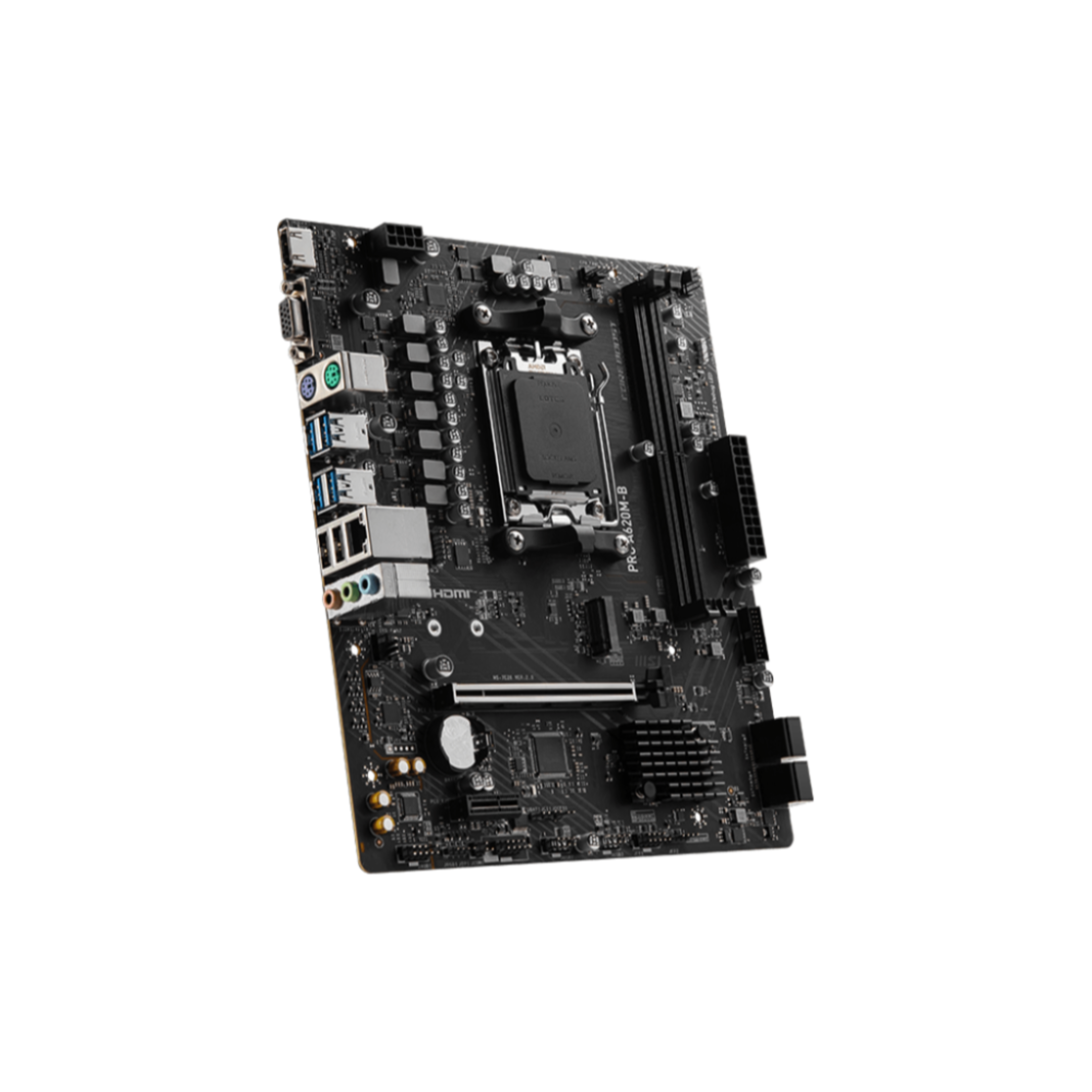

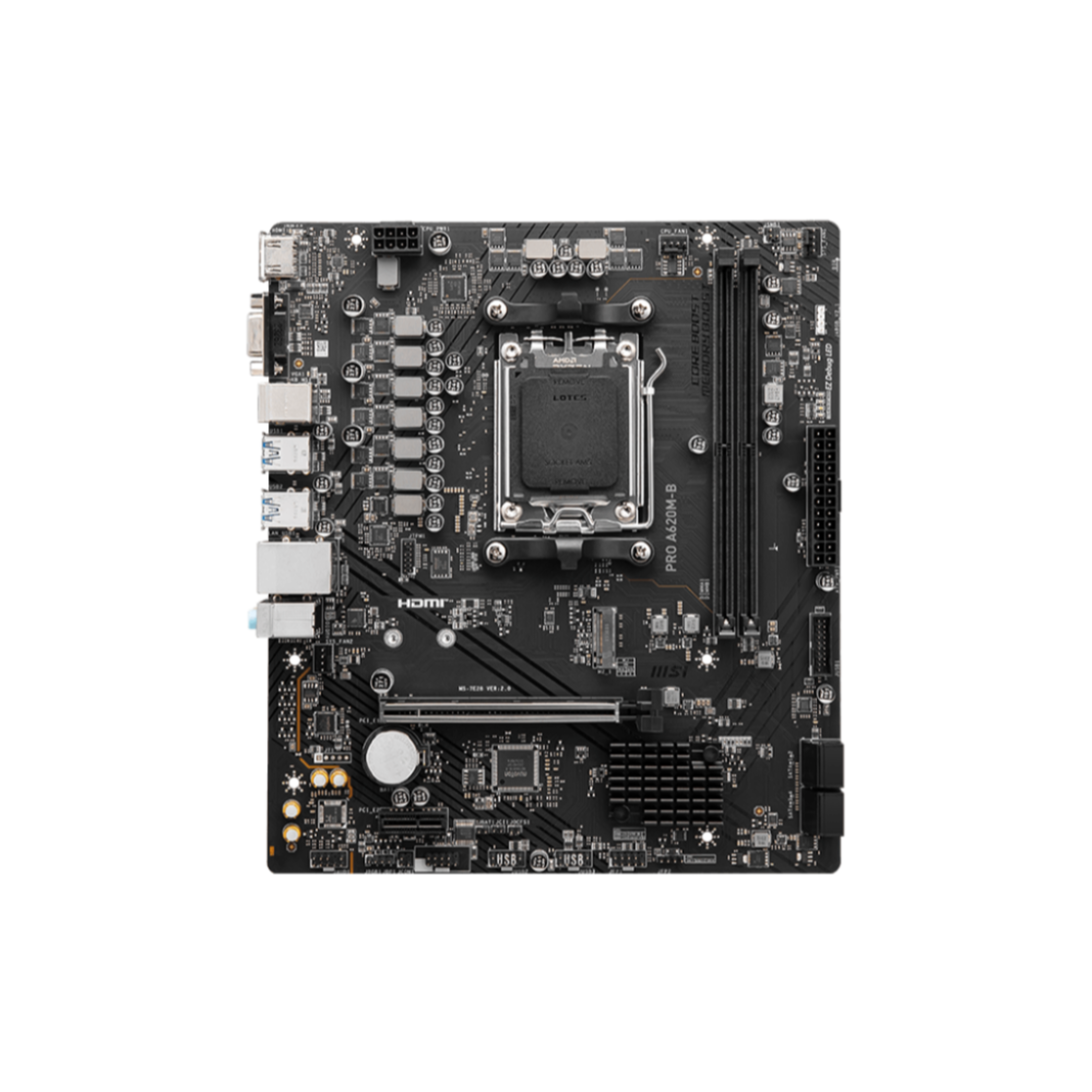

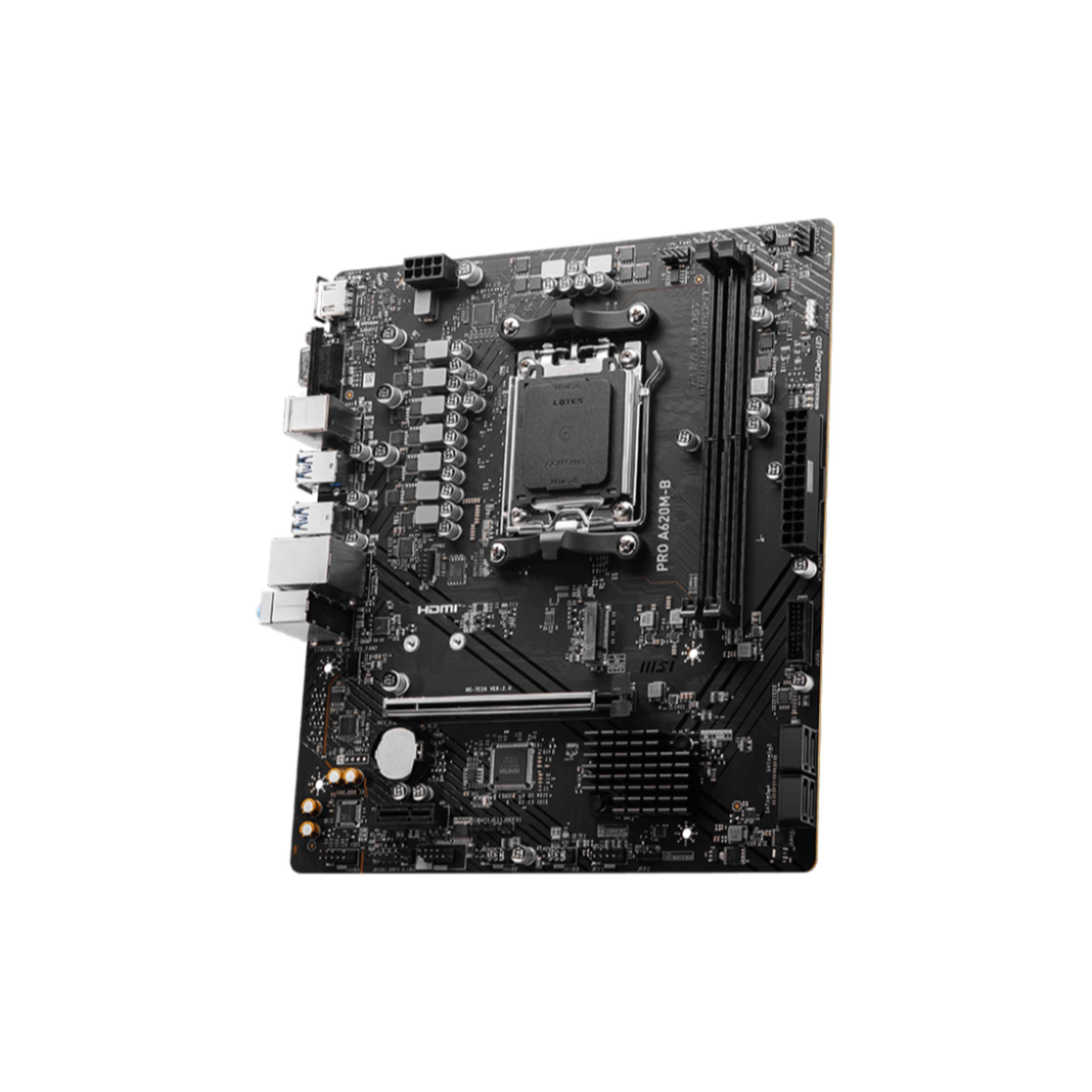

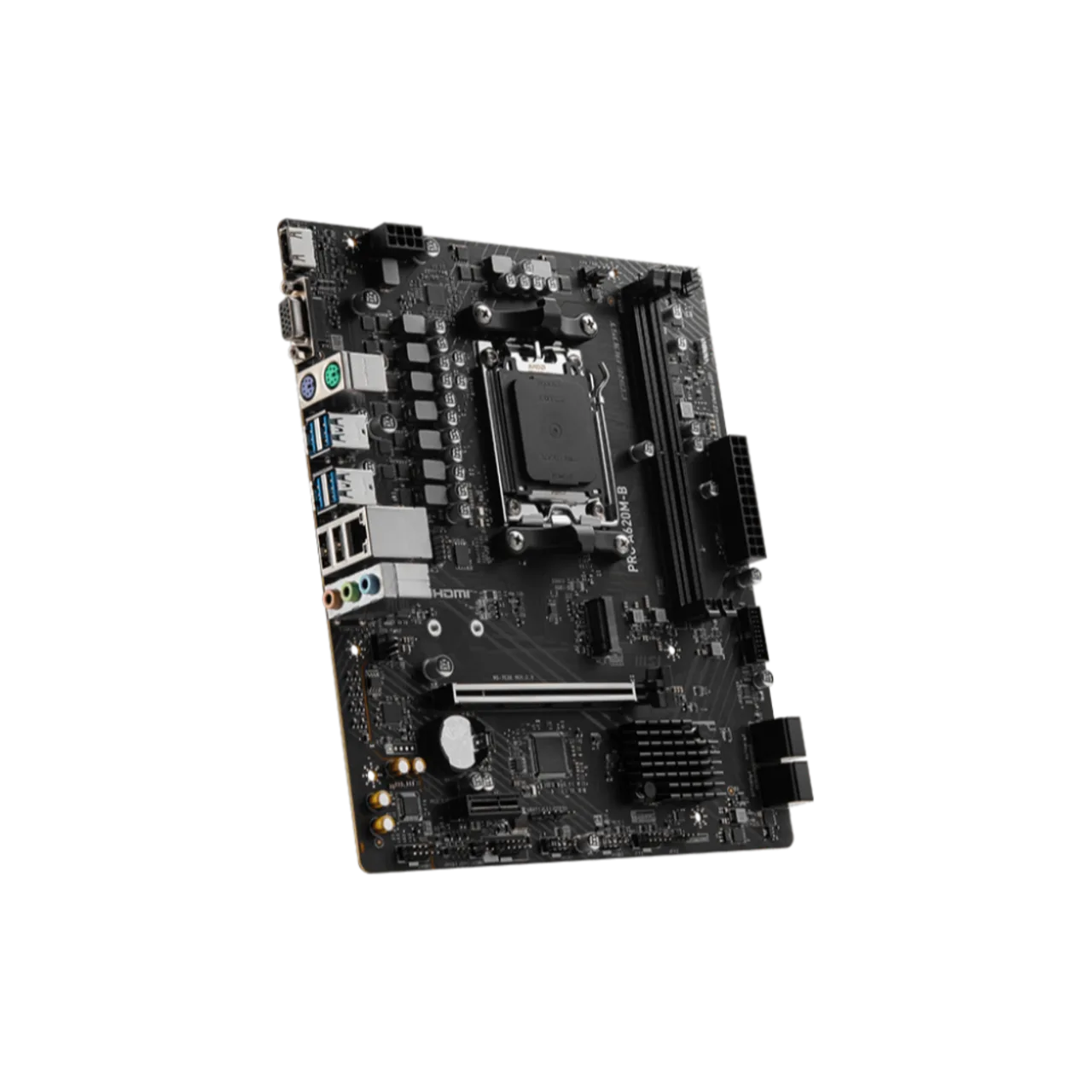

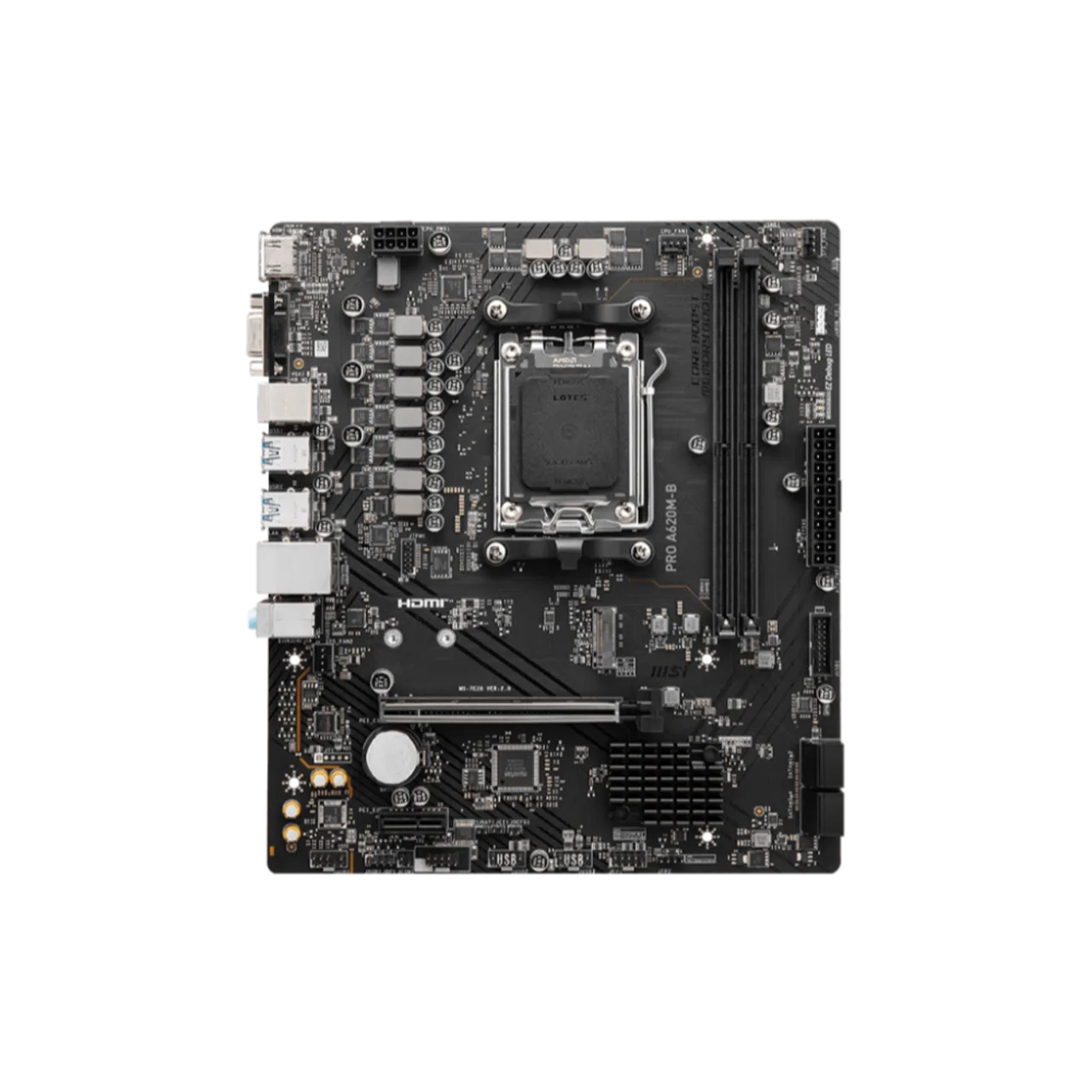

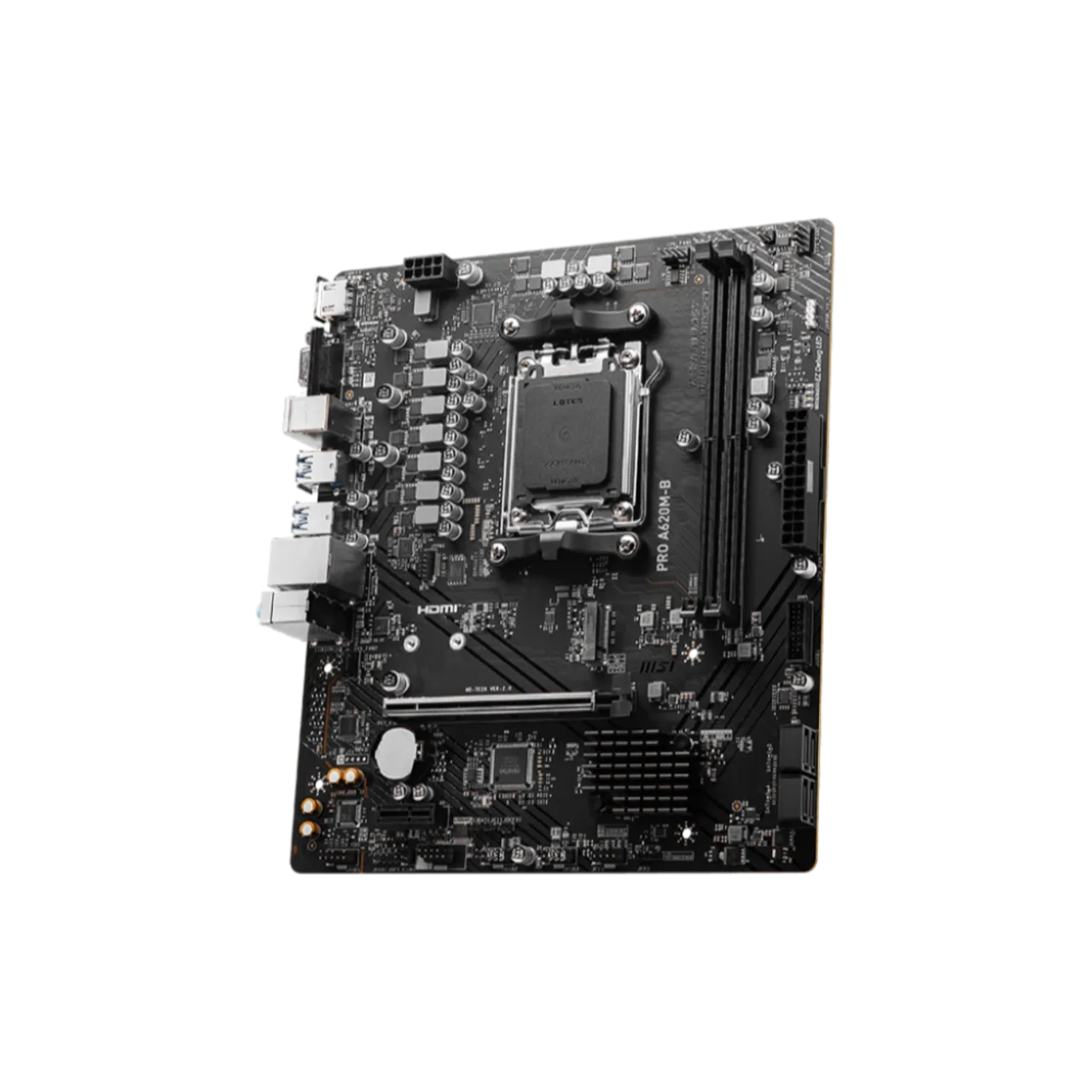

MSI PRO A620M-B

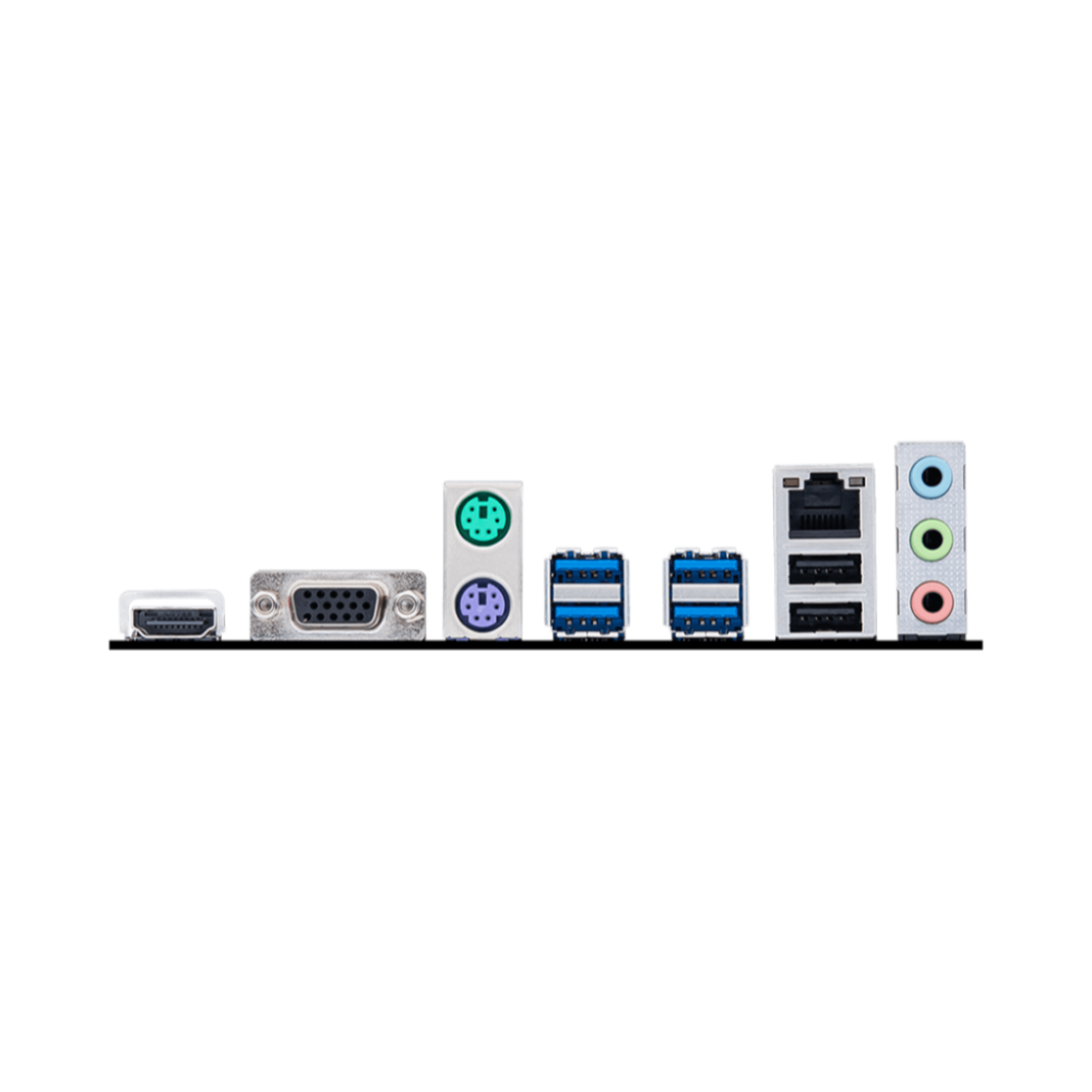

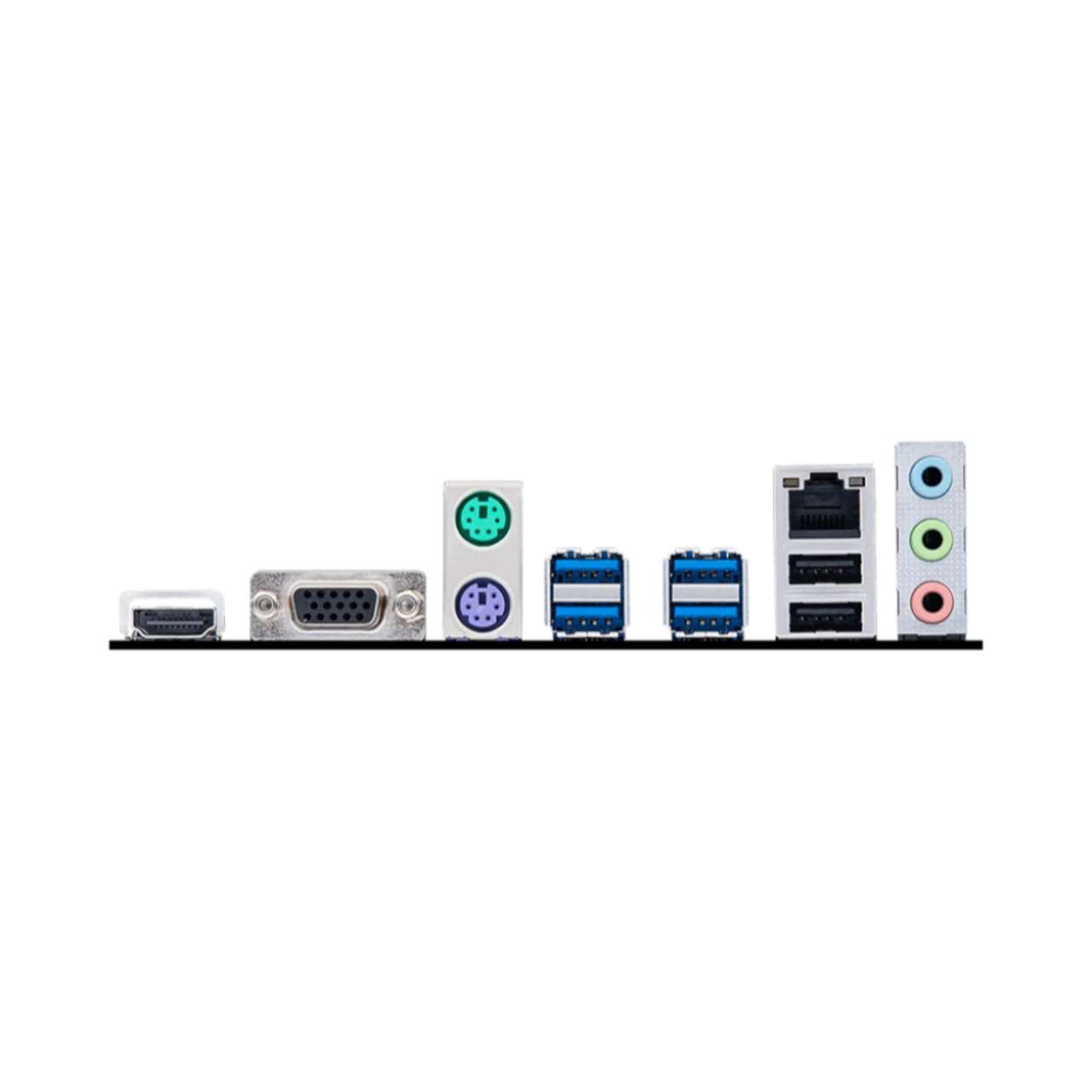

The MSI PRO A620M-B is a reliable and affordable Micro-ATX motherboard built on the AMD A620 chipset, supporting AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket, making it an excellent choice for entry-level to mid-range modern PC builds. It supports dual-channel DDR5 memory up to 128GB across two DIMM slots with overclocked speeds reaching up to 6800MHz, ensuring fast multitasking and responsiveness for daily tasks and productivity. The board includes one PCIe 4.0 x16 slot for modern graphics cards and one PCIe 3.0 x1 slot for expansion cards. For storage, it offers one M.2 Gen4 x4 slot connected directly to the CPU for fast NVMe SSDs, along with four SATA III ports supporting RAID 0, 1, and 10 configurations. Networking is handled by a high-speed Realtek 2.5G LAN controller, while audio is delivered through the Realtek ALC897 codec with 7.1-channel HD sound support. Rear I/O connectivity includes HDMI 2.1, VGA, multiple USB 3.2 Gen1 and USB 2.0 ports, and legacy PS/2 connectors for mouse and keyboard. Although it lacks integrated Wi-Fi and BIOS flashback, it offers essential features such as Core Boost power delivery, 9-phase VRM design, Frozr AI fan control, EZ Debug LEDs, TPM 2.0 support, and RGB headers, making it ideal for stable and efficient AM5-based builds focused on value and upgradability.
